Assembly
24
STEP 3

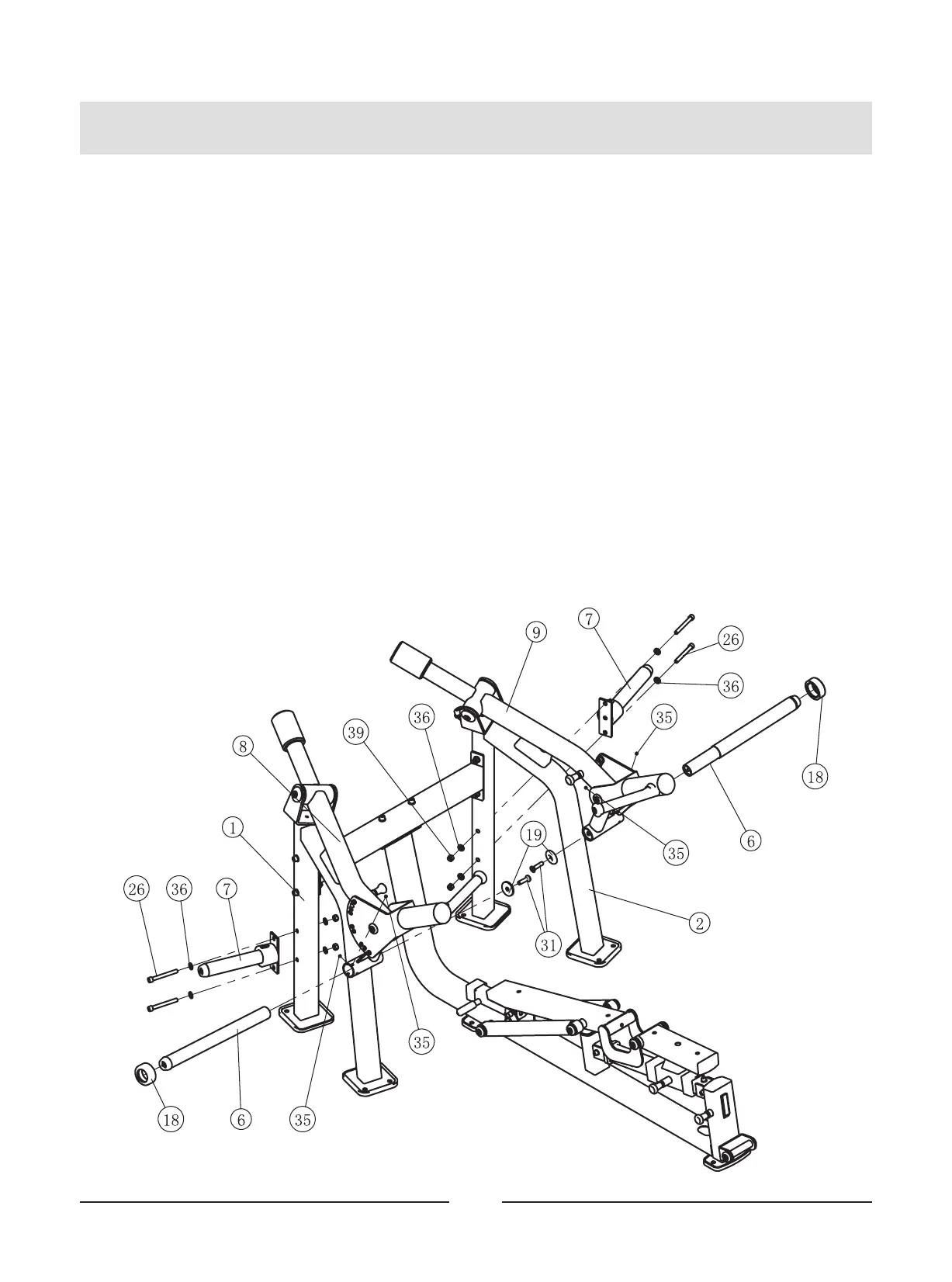

1. Attach two Weight Plate Storage ASSY (#7) to the Left Frame ASSY (#1) and the Right
Frame ASSY (#2) using:
four M12*105 SHCS (#26)
eight Φ13*Φ24*2.5 Flat Washer (#36)
four M12 Nylon Lock Nut (#39)
2. Attach two Weight Horn ASSY (#6) to the Left Arm Frame ASSY (#8) and the Right Arm
Frame ASSY (#9) using:
two Weight Horn Rubber Donut (#18)
two Φ54*Φ12.5*10.6 Aluminum End Cap (#19)
two M10*50 FHCS (#31)
four Socket Set Screw M8*6 (#35)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
To Next Page
