ImpulseRadar
CrossOver® User Manual V1.4
Page 6 (31)
Battery
CrossOver® antennas are powered via a removeable and rechargeable li-ion battery, which is a nominal
8.7Ah/96.57Wh, providing approximately 7-hours of continuous operation.
Note: ImpulseRadar Li-ion batteries are approved according to UN38.3 and can therefore be safely
carried/shipped by air.
The battery fits securely to the top of the antenna. To insert, position it on the mounting plate and
slide it gently into place, until you hear the locking pin engage (click). To remove, pull the locking pin
out, then gently slide the battery out and off from the mounting plate, Refer to the images in Figure 3
below.

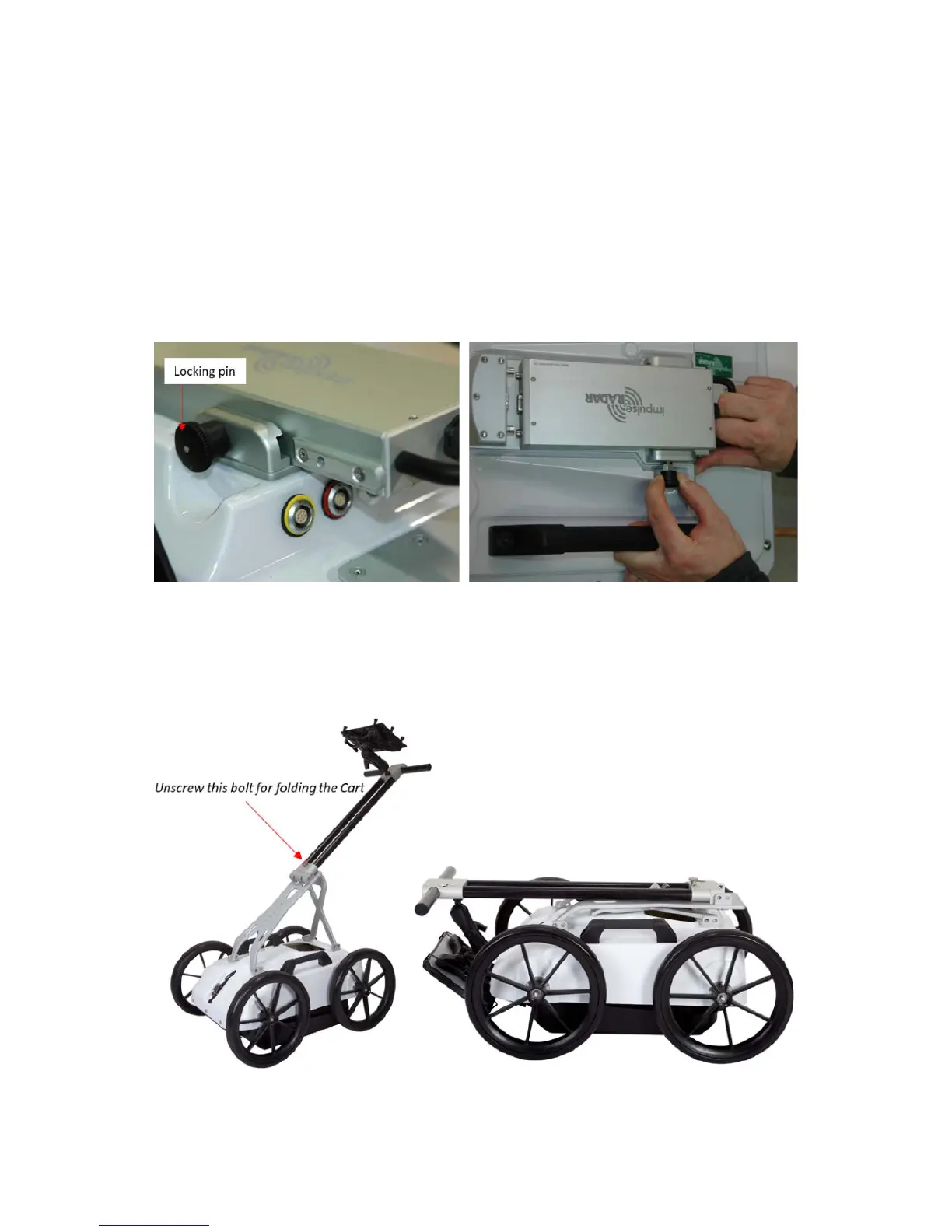

Figure 3 Mounting the battery
Cart
The CO4080 and CO1760 antennas can be used with optional Carts (foldable), as shown below in Figure
4. The push-cart allows the antenna to be manoeuvred easily over a range of surfaces.
Figure 4 CrossOver® Cart (foldable)
