ImpulseRadar
CrossOver® User Manual V1.4
Page 8 (31)

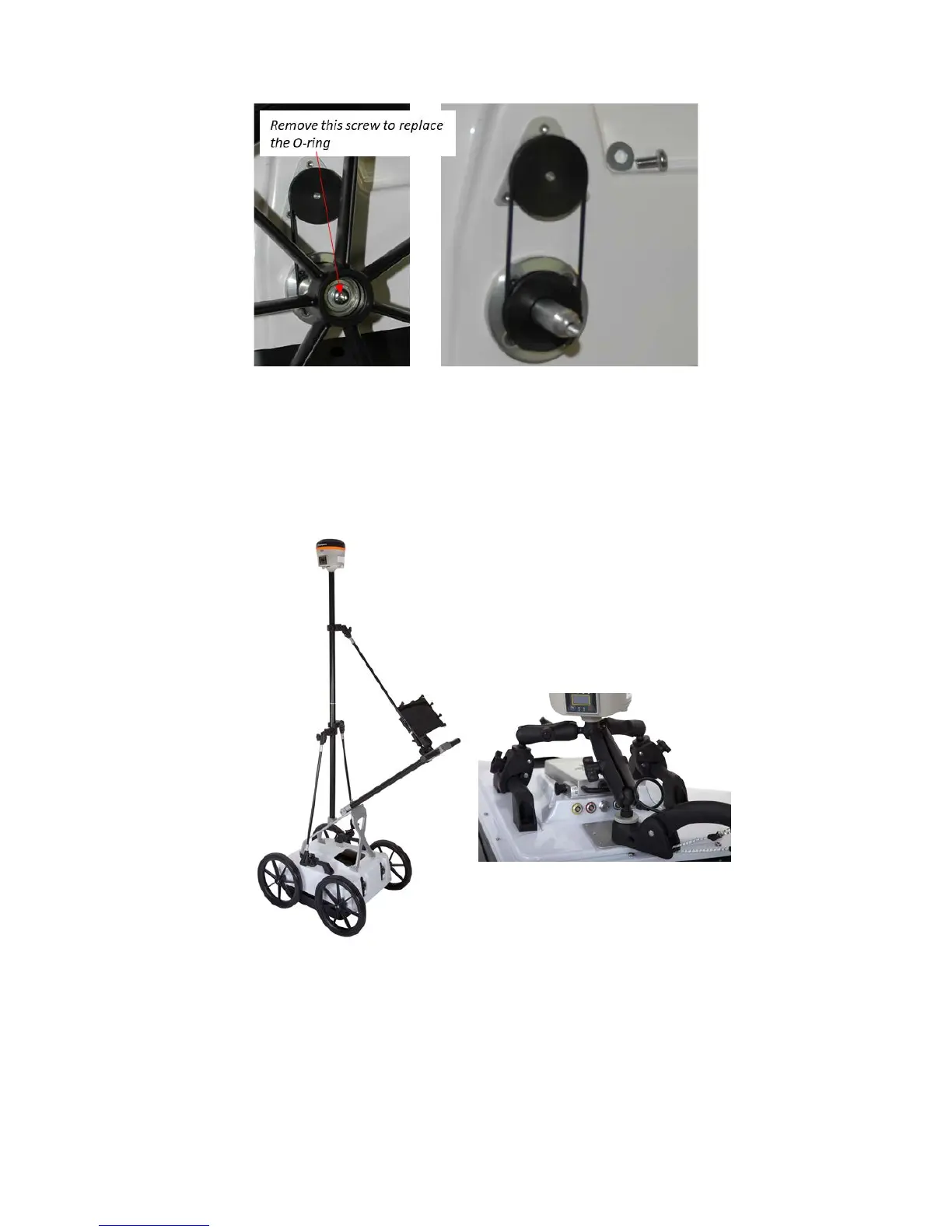

Figure 6 Odometer encoder and wheel assembly
GPS mounts
A range of optional GPS mounting accessories are available for both the push-cart and antenna itself,
as shown below in Figure 7. The mounting poles are available in different lengths to vary the height of
the GPS antenna, as/if needed.
Figure 7 GPS-mounts for the Cart and antennas
