User Manual
iM871A Wireless M-Bus Module Specification
iM871A_WMBus_UserManual.docx, Wireless Solutions, v1.2 Page 20

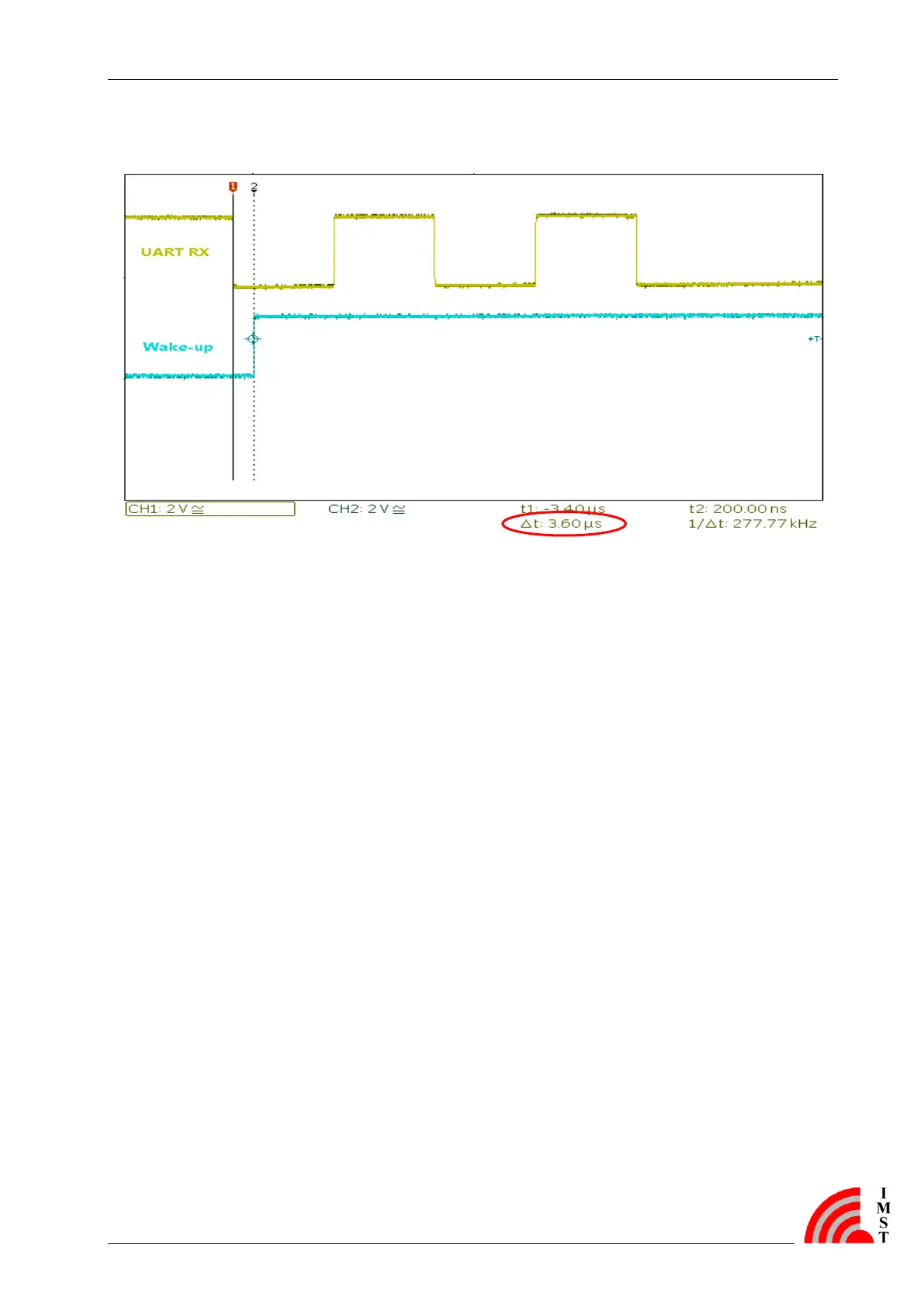

Figure 4-2 shows the time gap between the RX signal and the wake-up indication.
Figure 4-2: Packet Timing after Wake-up, detailed view
