Screw the coverplates securely using screws
(M4).
Connect the sensor wires to each other
and then screw the handle securely to the
upright frame using screws (M6).
Connect the wires to the computer and
screw the computer securely to the handle.
Make sure the computer is at the required
angle before securely it fi rmly in place.
Remove the transport screw on the side of
the treadmill once it is fully assembled.
The treadmill is now assembled and ready
for use.

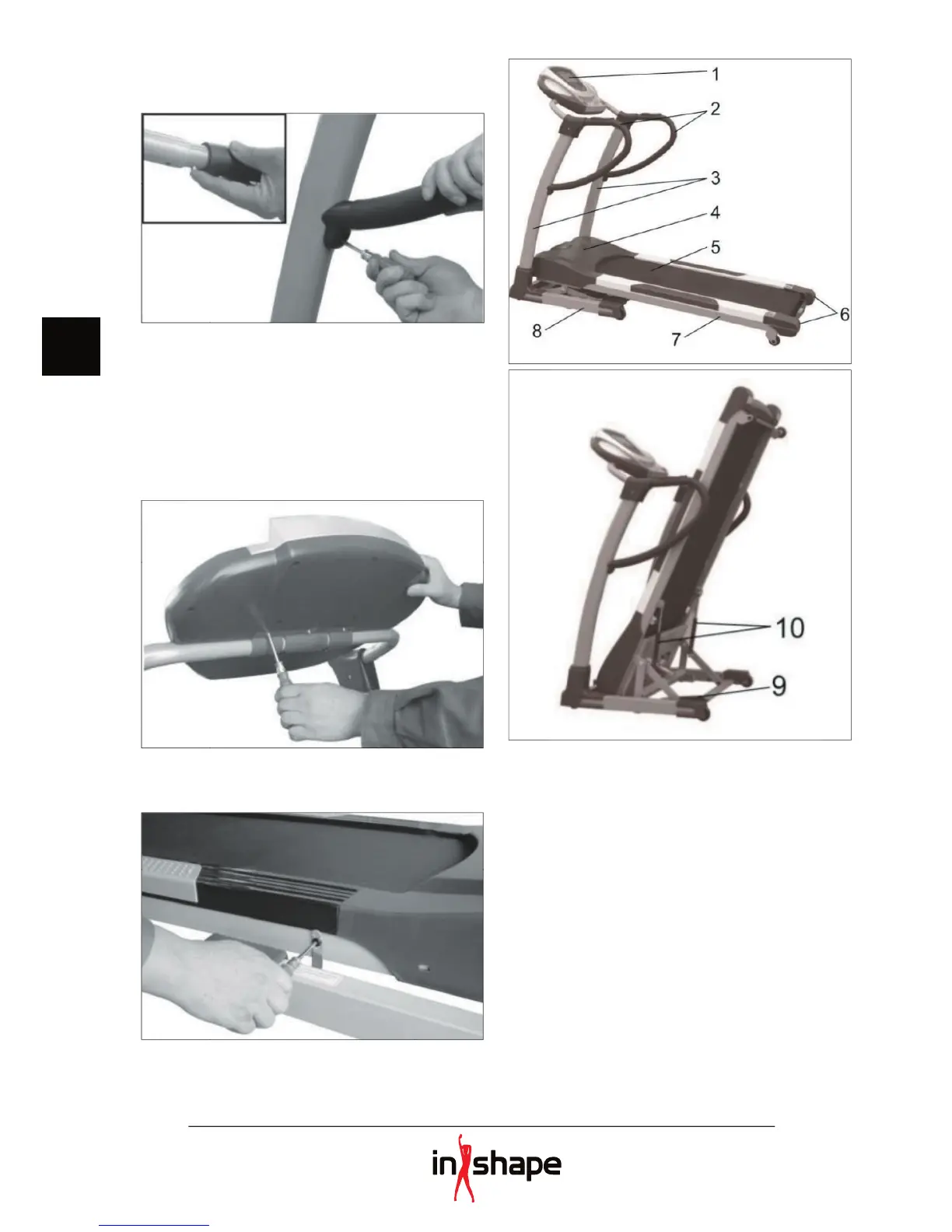

Main components
1. Computer
2. Handle
3. Upright frame
4. Motor cover
5. Belt
6. Adjustment screws
7. Frame
8. Base frame
9. Pedal for folding
10. Cylinder
