In Shape CT700 - Step 2

28

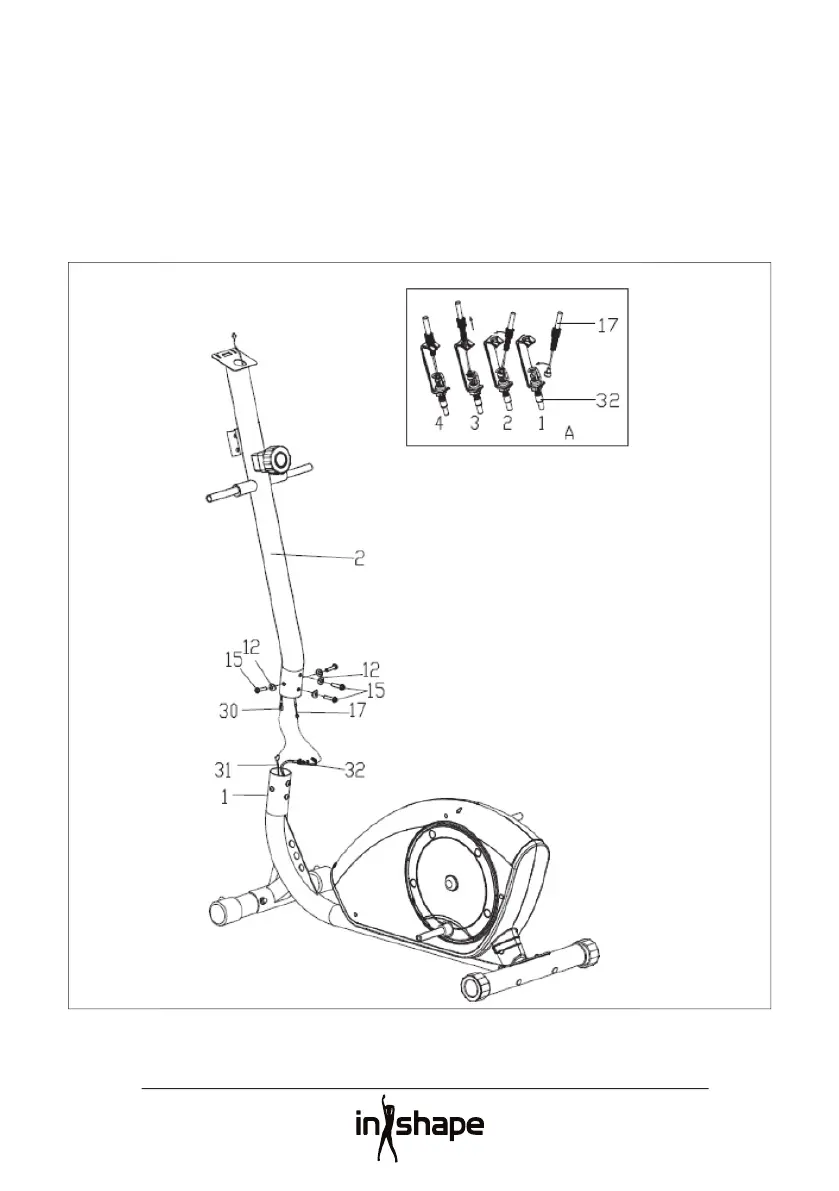

Step 2
Connect the sensor wire (31) from the frame
(1) to the sensor wire (30) in the handlebar
post (2).
Insert the end of the tension cable from
the tension knob (17) into the bracket on
the tension cable (32) from the frame (1) as
illustrated. Check that the cables are correctly
assembled.
Attach the handlebar post (2) to the socket
on the frame (1) and screw it securely using
curved washers (12) and bolts (15).
