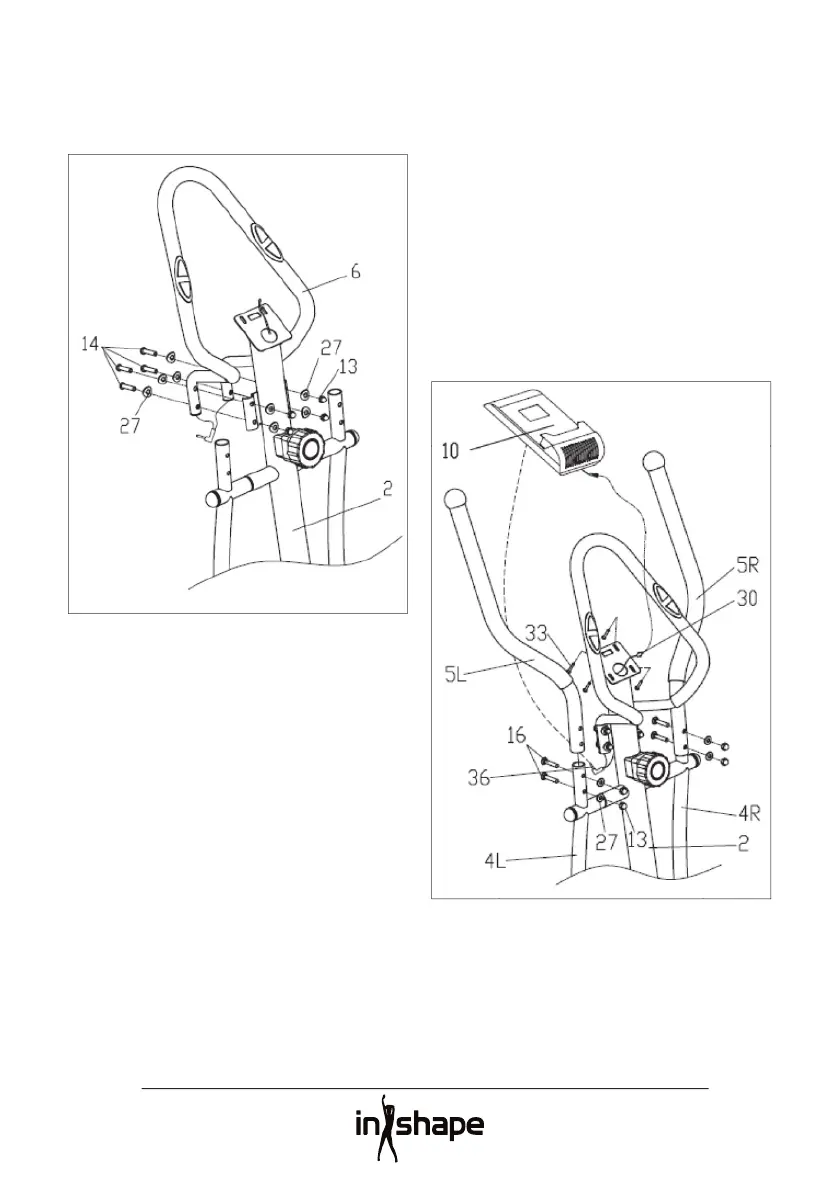

Step 4
Screw the stationary handlebar (6) to the
handlebar post (2) using hexagonal screws
(14), wave washers (27) and cap nuts (13).
Step 5
Screw the left handlebar (5L) securely to the
left pivoting arm (4L) using bolts (16), wave
washers (27) and cap nuts (13).
Fit the right handlebar (5R) in the same way.
Insert two 1.5 V AAA batteries into the
battery compartment on the computer (10).
Check that the batteries are correctly fi tted.
Connect the sensor cable (30) to the
computer (10). Attach the computer (10) to
the computer bracket using screws (33).
Insert the connector from the pulse cable
into the socket on the computer.
The equipment is now assembled and ready
for use.
