INCOE MICROCOM - Zone Enclosures Utilizing 1614-BRA

MICROCOM
®
TEMPERATURE CONTROLLER
INSTRUCTION MANUAL
Pg.
www.incoe.com
©INCOE
®
CORPORATION 3/2011
4

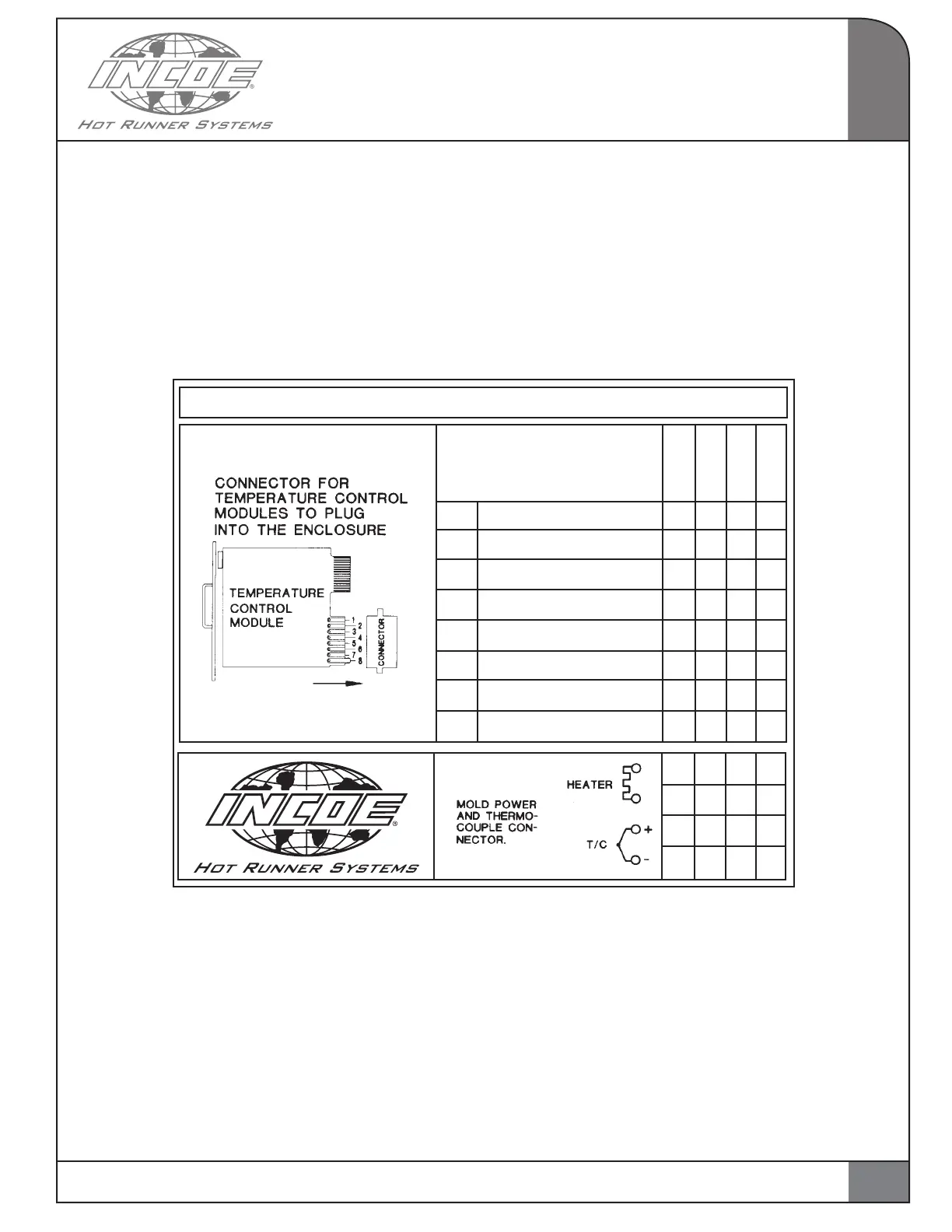

WIRING SCHEMATICS & PLUG DIAGRAMS
ZONE 1 ZONE 2 ZONE 3 ZONE 4
4 ZONE ENCLOSURES UTILIZING 1614-BRA
ENCLOSURE
ZONES
1 + THERMOCOUPLE 1 1 1 1
2 - THERMOCOUPLE 2 2 2 2
3 NOT USED 3 3 3 3
4 POWER OUT 4 4 4 4
5 POWER OUT 5 5 5 5
6 POWER IN 6 6 6 6
7 POWER IN 7 7 7 7
8 GROUND 8 8 8 8
1 2 3 4
9 10 11 12
5 6 7 8
13 14 15 16
Rev 04/07
13
4.3 4 ZONE ENCLOSURES UTILIZING 1614-BRA
