INCOE MICROCOM - Zone Enclosures Utilizing 4814-BRA

MICROCOM
®
TEMPERATURE CONTROLLER
INSTRUCTION MANUAL
Pg.
www.incoe.com
4

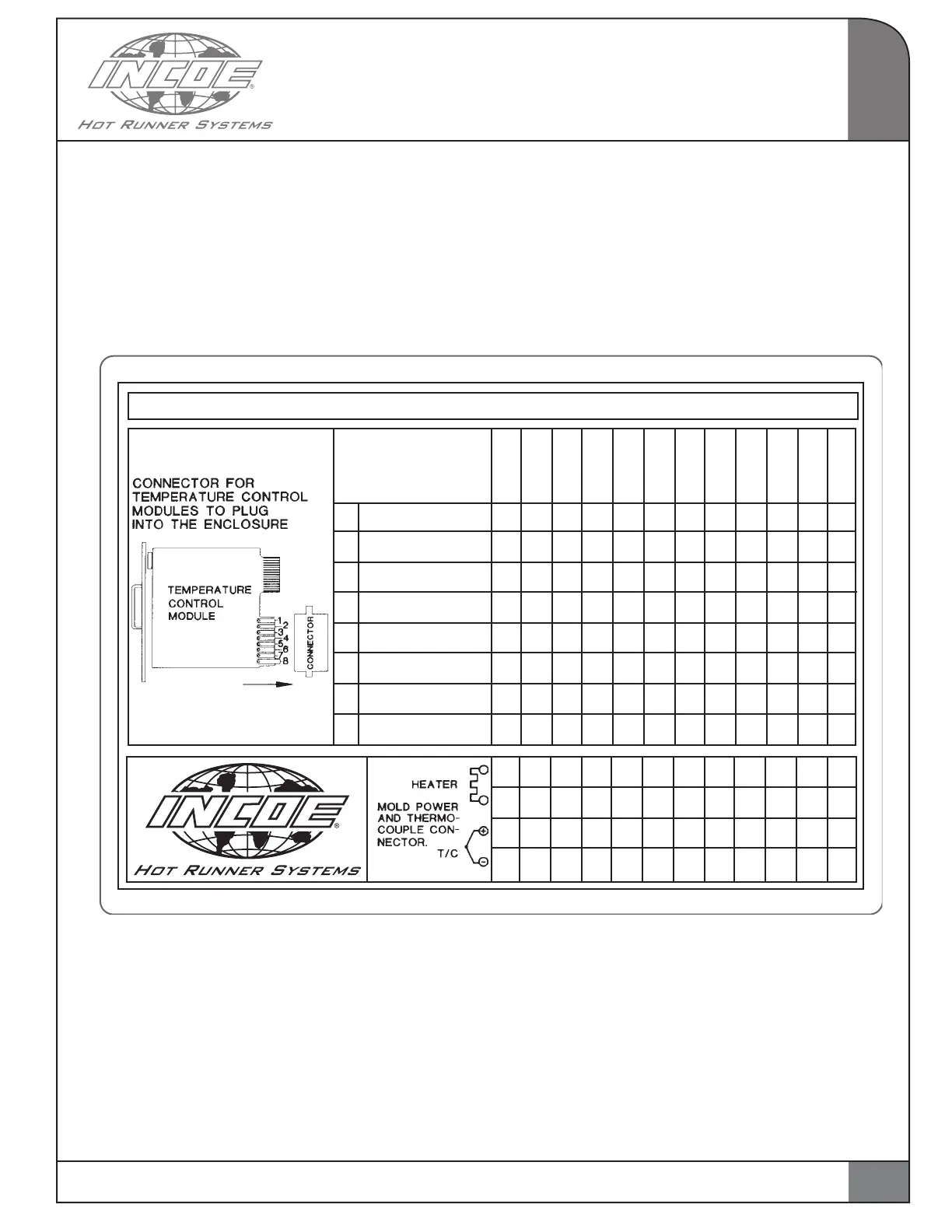

WIRING SCHEMATICS & PLUG DIAGRAMS
12 ZONE ENCLOSURES UTILIZING 4814-BRA
ENCLOSURE
ZONES
1 + THERMOCOUPLE 1 1 1 1 1 1 1 1 1 1 1 1
2 - THERMOCOUPLE 2 2 2 2 2 2 2 2 2 2 2 2
3 NOT USED 3 3 3 3 3 3 3 3 3 3 3 3
4 POWER OUT 4 4 4 4 4 4 4 4 4 4 4 4
5 POWER OUT 5 5 5 5 5 5 5 5 5 5 5 5
6 POWER IN 6 6 6 6 6 6 6 6 6 6 6 6
7 POWER IN 7 7 7 7 7 7 7 7 7 7 7 7
8 GROUND 8 8 8 8 8 8 8 8 8 8 8 8
1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32 33 34 35 36
37 38 39 40 41 42 43 44 45 46 47 48
Rev 04/07
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8 ZONE 9 ZONE 10 ZONE 11 ZONE 12
15
4.5 12 ZONE ENCLOSURES UTILIZING 4814-BRA
©INCOE
®
CORPORATION 3/2011
