EN
User manual
5

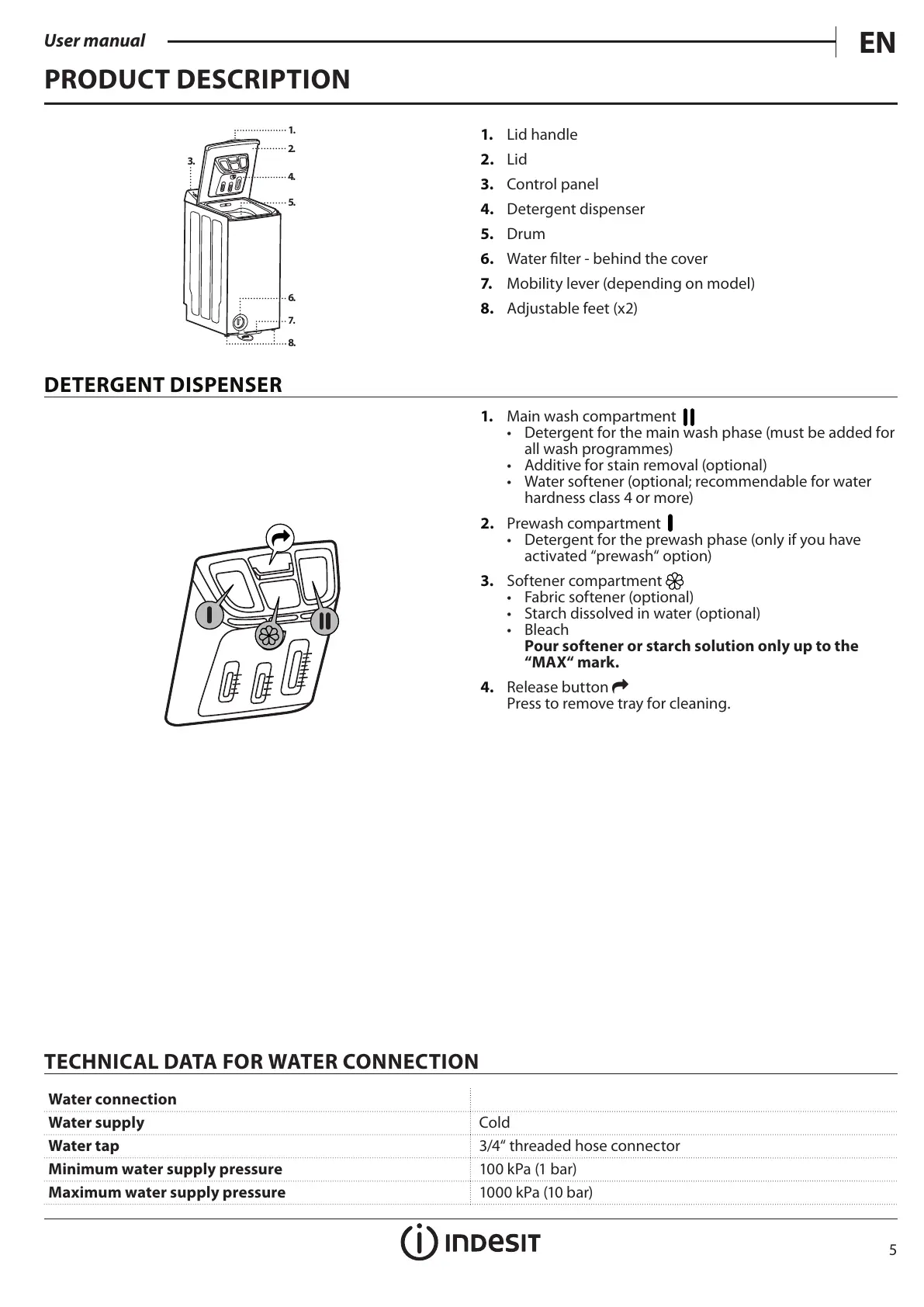

PRODUCT DESCRIPTION
1. Lid handle
2. Lid
3. Control panel
4. Detergent dispenser
5. Drum
6. Water lter - behind the cover
7. Mobility lever (depending on model)
8. Adjustable feet (x2)
5.
1.
6.
7.
2.
3.
4.
8.
DETERGENT DISPENSER
1. Main wash compartment
• Detergent for the main wash phase (must be added for
all wash programmes)
• Additive for stain removal (optional)
• Water softener (optional; recommendable for water
hardness class 4 or more)
2. Prewash compartment
• Detergent for the prewash phase (only if you have
activated “prewash“ option)
3. Softener compartment
• Fabric softener (optional)
• Starch dissolved in water (optional)
• Bleach
Pour softener or starch solution only up to the
“MAX“ mark.
4. Release button
Press to remove tray for cleaning.
TECHNICAL DATA FOR WATER CONNECTION
Water connection
Water supply Cold
Water tap 3/4“ threaded hose connector
Minimum water supply pressure 100 kPa (1 bar)
Maximum water supply pressure 1000 kPa (10 bar)
