EXPLODED VIEWS
28
GB
Service Manual
MOON - 2006
Linguage
English
Edition
2006.06.12

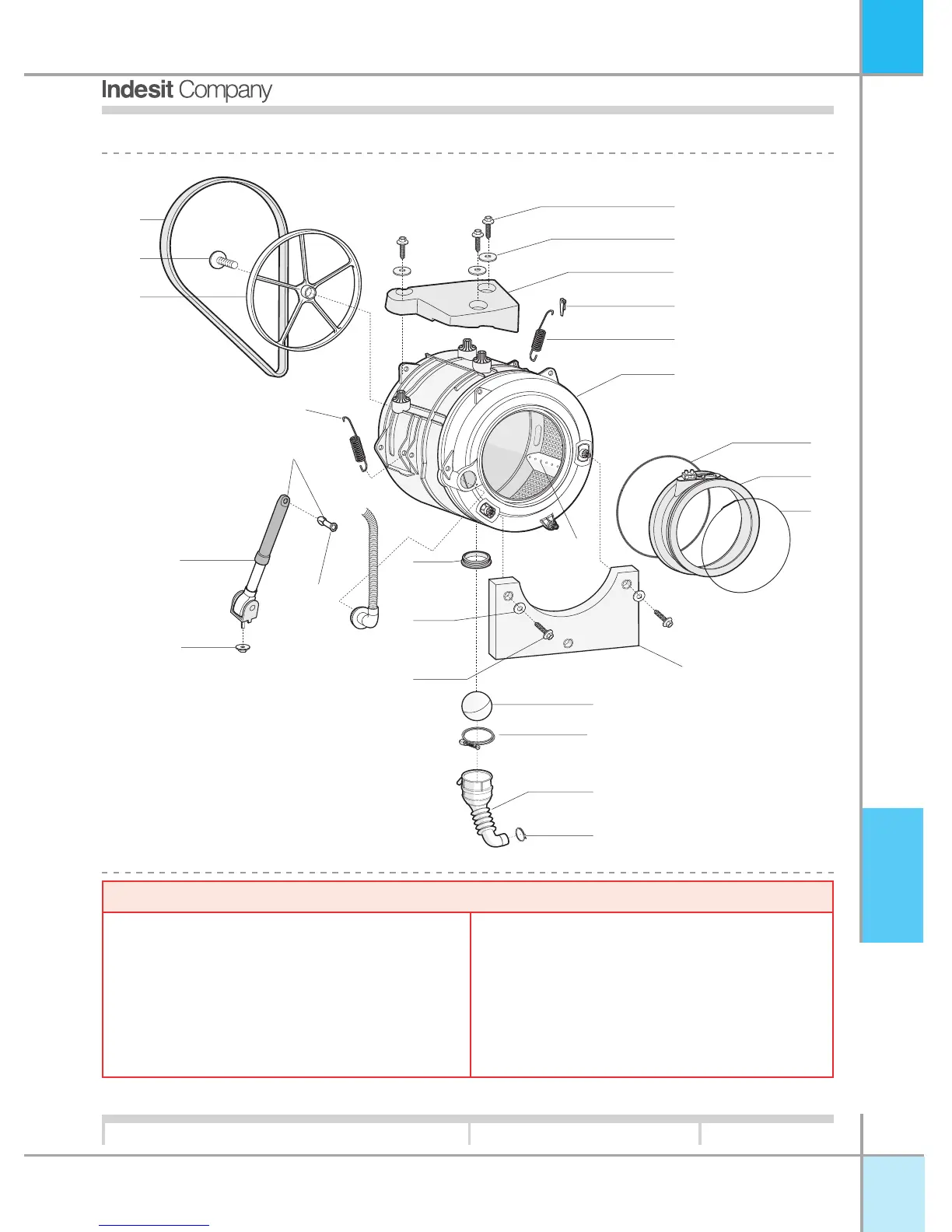

MOBILE ASSEMBLY.
1
2
3
4
5
6
7
8
9
18
19
20
21
23
22
11
13
14
12
5
17
10
16
1
15
24
001 SCREW X COUNTERWEIGHT/AQUALT. TUB
003 TOP COUNTERWEIGHT VPL 12.5 KG AQUAL.
004 AQUALTIS SPRING RING NUT
005 SMART TUB SPRING
006 PLASTIC TUB UNIT 52 L H=20 MM SMART
007 SPRING REAR TENSION RING EVOII
008 DOOR SEAL + SMART DISPENSER SUPPORT
009 FRONT RING EVO II
010 FRONT COUNTERWEIGHT VPL SMART
011 OKO HOSE BALL EVO II
012 HOSE CLAMP - TUB SIDE
Rif. descrizione
013 AQUALTIS FLEXIBLE DRAIN HOSE
014 HOSE CLAMP - DRAIN PUMP SIDE
015 REMOVABLE DRUM BAFFLE 46L
017 GASKET FOR OKO AQUAL FLEXIBLE DRAIN HOSE
018 EXPANDER
019 ROMOB NUT M6X20X1.6
020 DAMPER 100 N
021 DRIVEN PULLEY D=280 MM H=20 MM
022 SCREW M8X23 TORX TEFL ROHS
023 ELASTIC BELT 1194 J5 DIELECTRIC AQ
024 DAMPERS 100 N KIT
Rif. descrizione
