EXPLODED VIEWS
27
GB
Service Manual
MOON - 2006
Linguage
English
Edition
2006.06.12

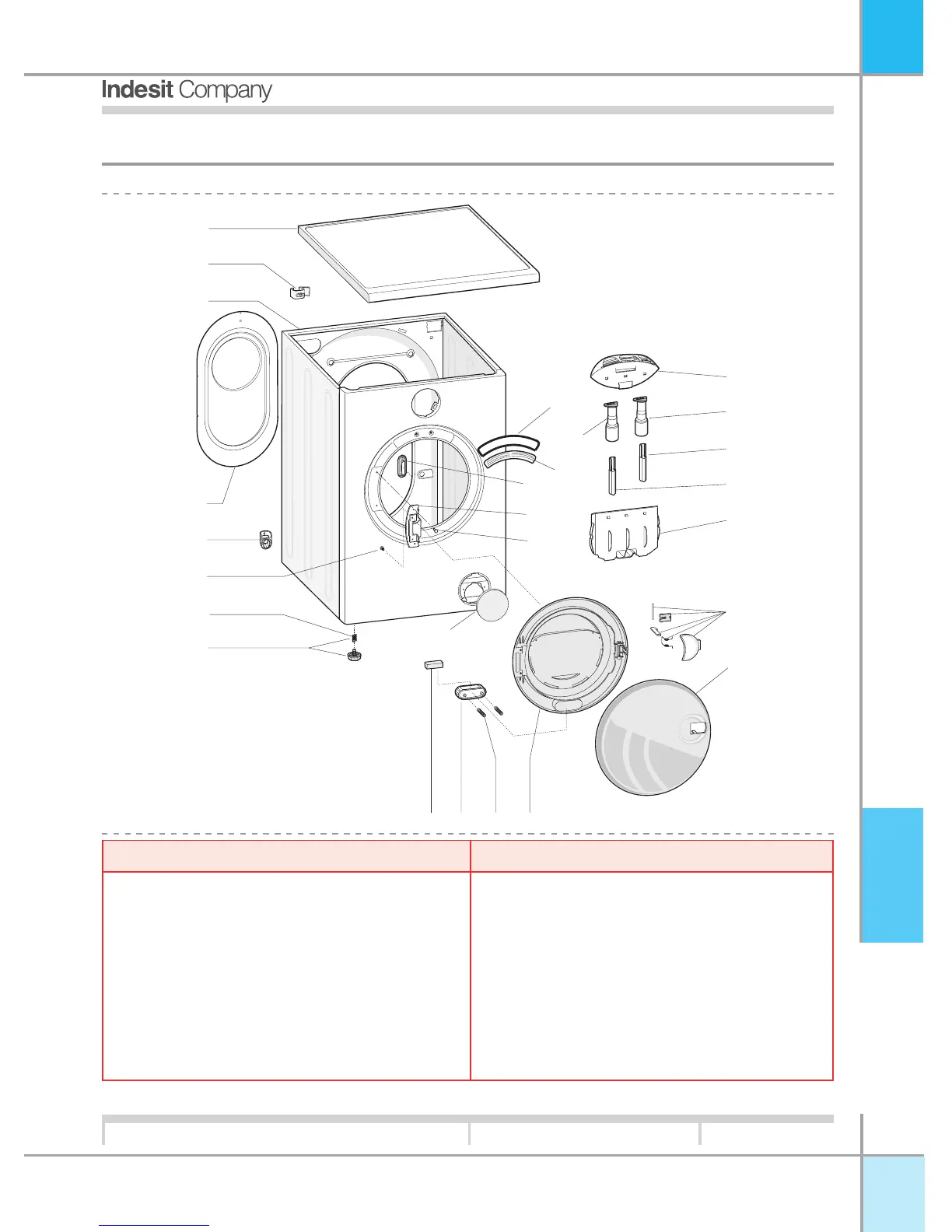

6. EXPLODED VIEWS:
APPLIANCE BODY.
13
17
19
6
8
7
9
20
5
3
1
2
4
18
1214 11
10
16
22
23
21
15
24
25
26
001 SMART DISPENSER COVER
002 MOON RIGHT LEVEL INDICATOR
003 DETERGENT DRAWER RIGHT SIPHON
004 DETERGENT DRAWER LEFT SIPHON
005 SMART DETERGENT DISPENSER
006 HARDWARE TEST PLUG FOR CABINET ‘LBE8X’
007 DOOR HINGE ‘W133UK’
008 SELF-TAPPING SCREW TESTTFR 4.2X9.5
009 SMART BLUE DOOR OPENING SET
010 SMART BLUE DOOR SCREEN
011 SMART INNER DOOR
012 MOON SPRING
013 MOON CONDENSATE COLLECTOR
014 MOON SPONGE
Ref. description
015 GREY FILTER COVER
016 ADJUSTABLE FOOT M8 H = 2.3 CM
017 FOOT SPRING D =11 MM H = 8.5
018 SCREW M4.5 X 11 TIMER AND DOOR/HINGE
019 DRAIN HOSE COLLAR ’AB636TX’
020 REAR PANEL SILVER F647 WITH CROWNING
021 MOON GREY CABINET
022 WIRING CLAMP ‘AB636TX’
022 DRAIN HOSE SUPPORT ‘LVB2000’
023 SMART GREY TOP
024 MOON PROGRAMME PLATE SUPPORT
025 MOON PROGRAMME PLATE
026 MOON LEFT LEVEL INDICATOR
Ref. description
