Procedure
1.

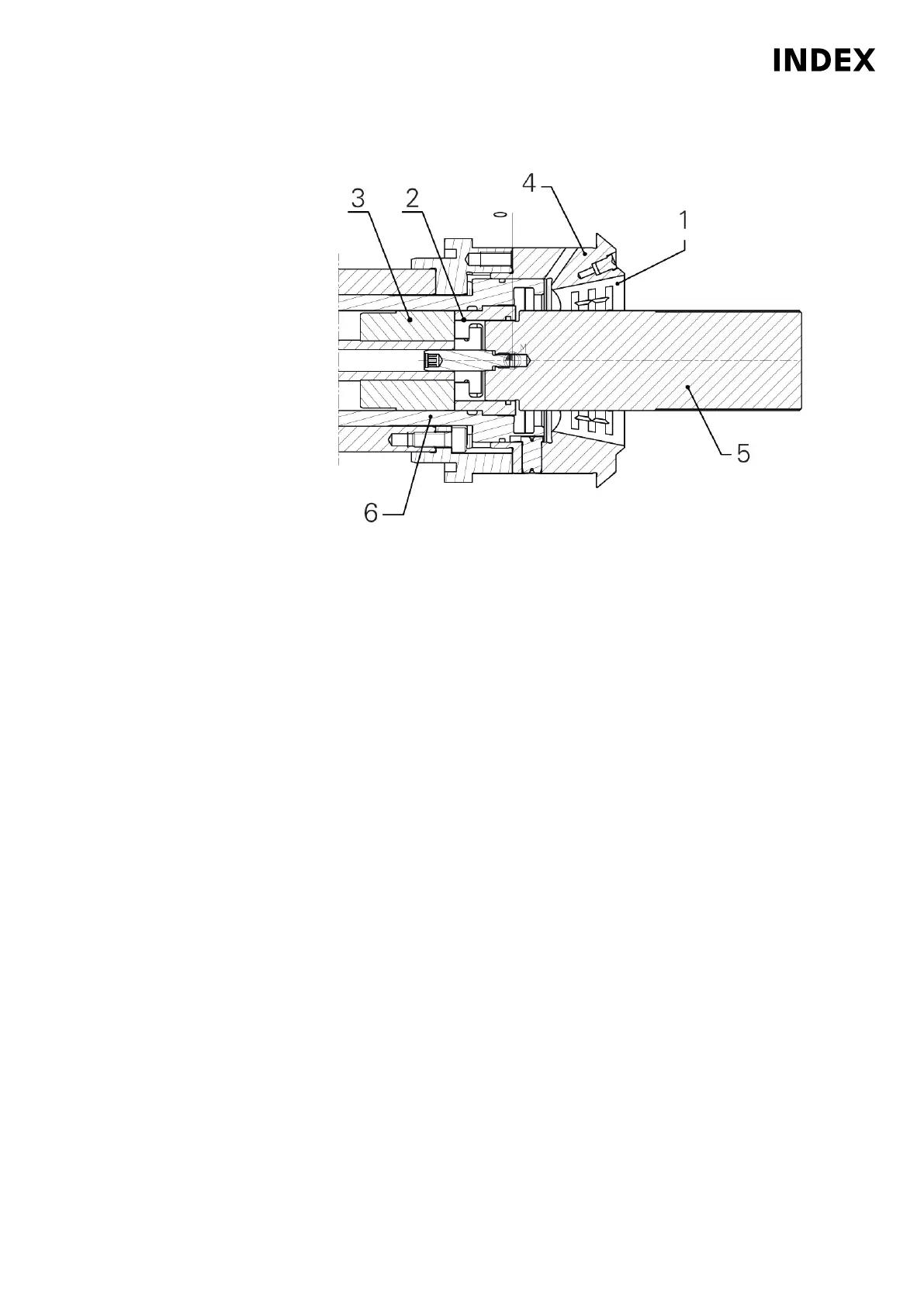

Example: Spindle liner tube with mounting tool
1
Collet
2 Bushing
3 Spindle liner tube
4 Collet mounting
5 Centering mandrel/mounting tool
6 Base body
Remove spindle liner tubes.
2. Remove collet (1) using the changing device.
3. Pull out bushing (2) and spindle liner tube (3) towards the work area using the
mounting tool.
4. Clean the bushing and spindle liner tubes (two parts) and lubricate with heat-
resistant grease.
5. Before reinserting the spindle liner tube, make sure that the clamping tube is
free of chips.
6. Reinstall the bushing and spindle liner tube. Turn the bushing to the
appropriate position so that it engages noticeably in the base body.
7. Remove the mounting tool.
8. Reinsert the collet using the changing device.
