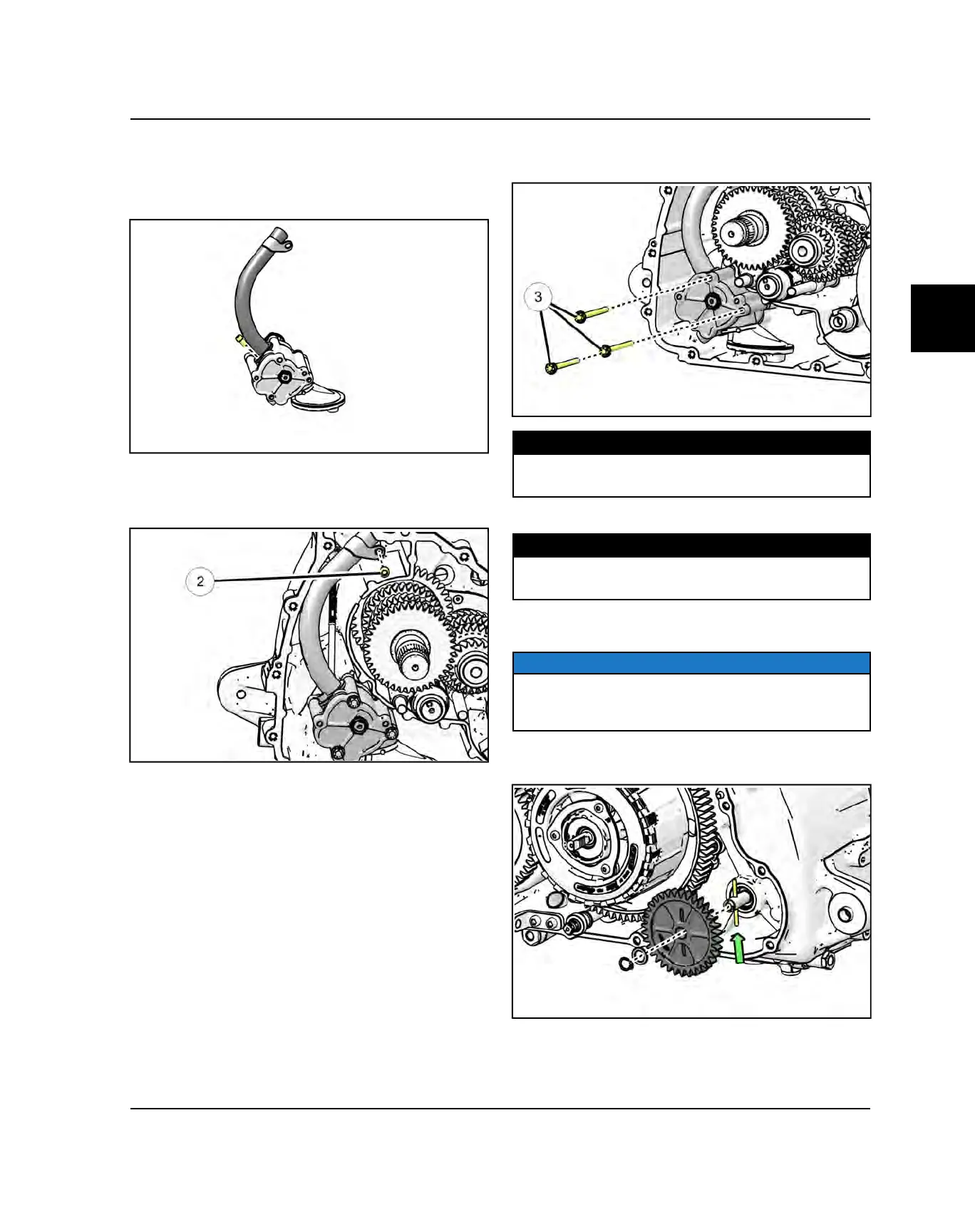

OOIILL PPUUMMPP IINNSSTTAALLLLAATTIIOONN
1. Clean oil pipe and dry with compressed air.
2. Loosely install the snorkel tube and fastener
q
to
the pump body.
3. Install the oil pump / snorkel tube assembly into
the crankcase and loosely install fastener
w
securing the snorkel tube to the left-hand
crankcase.
4. Align fastener holes and install oil pump fasteners
e
and torque to specification.
TORQUE
Oil Pump Fasteners:
88 in-lbs (10 N·m)
5. Torque snorkel tube fasteners to specification.
TORQUE
Snorkel Tube Fasteners:
88 in-lbs (10 N·m)
6. Rotate the oil pump drive shaft by hand a few
revolutions to verify smooth operation.
NOTICE
Pump should rotate by hand with little resistance. If it
is difficult to rotate, loosen then re-torque oil pump
fasteners and check again.
7. Install oil pump drive pin
r
, sprocket
t
, washer
y
and external snap-ring
u
.
8. Assemble engine crankcase. See Crankcase
Assembly page 6.43.
