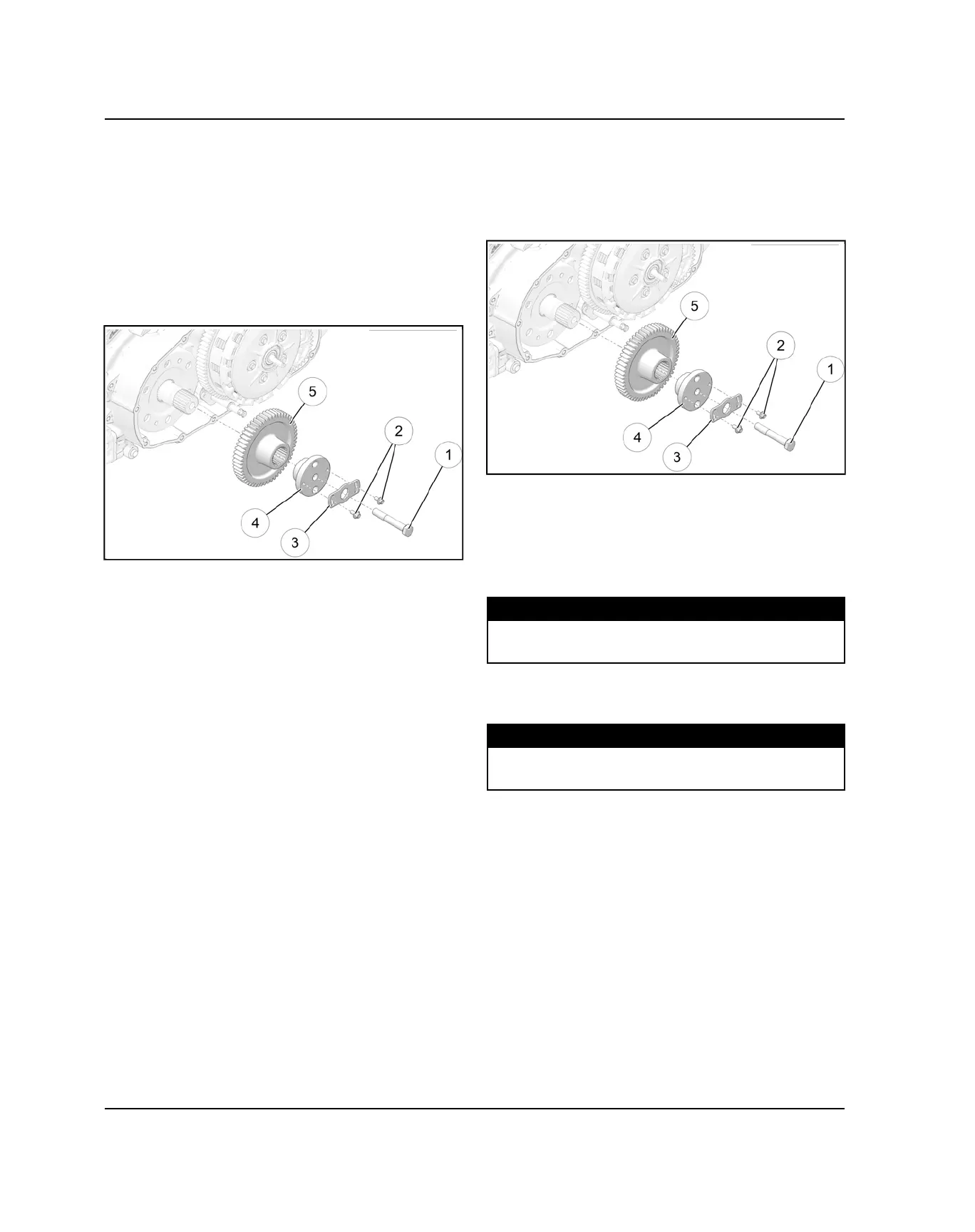

PPRRIIMMAARRYY DDRRIIVVEE GGEEAARR SSEERRVVIICCEE ((22001188--22002200))
PPRRIIMMAARRYY DDRRIIVVEE GGEEAARR RREEMMOOVVAALL
1. Remove primary cover. See Primary Cover
Removal (2017-2020) page 5.25.
2. Perform crankshaft locking procedure. See Locking
the Crankshaft for Service page 3.45.
3. Remove the primary drive gear fastener
q
,
locking plate fasteners
w
, and locking plate
e
from the crankshaft.
4. Remove the adapter
r
and primary drive gear
t
from the crankshaft.
PPRRIIMMAARRYY DDRRIIVVEE GGEEAARR IINNSSTTAALLLLAATTIIOONN
1. Apply engine oil to shaft splines before installation.
2. Install the primary drive gear
t
to the crankshaft.
3. Install adapter
r
.
4. Lock the crankshaft for service. See Locking the
Crankshaft for Service page 3.45.
5. Install locking plate
e
, fasteners
w
and torque
fasteners to specification.
TORQUE
Locking Plate Fasteners:
88 in-lbs (10 N·m)
6. Apply Loctite 262 to primary drive gear fastener
q
and torque to specification.
TORQUE
Primary Drive Gear Fastener:
83 ft-lbs (112 N·m)
7. Install primary cover. See Primary Cover
Installation (2017-2020) page 5.27.
8. Fill engine oil to proper level.
