4.29
FFUUEELL LLEEVVEELL SSEENNSSOORR RREESSIISSTTAANNCCEE TTEESSTT
OVERVIEW OF OPERATION: Fuel level readings are
measured by a variable resistance fuel level sensor
q
.

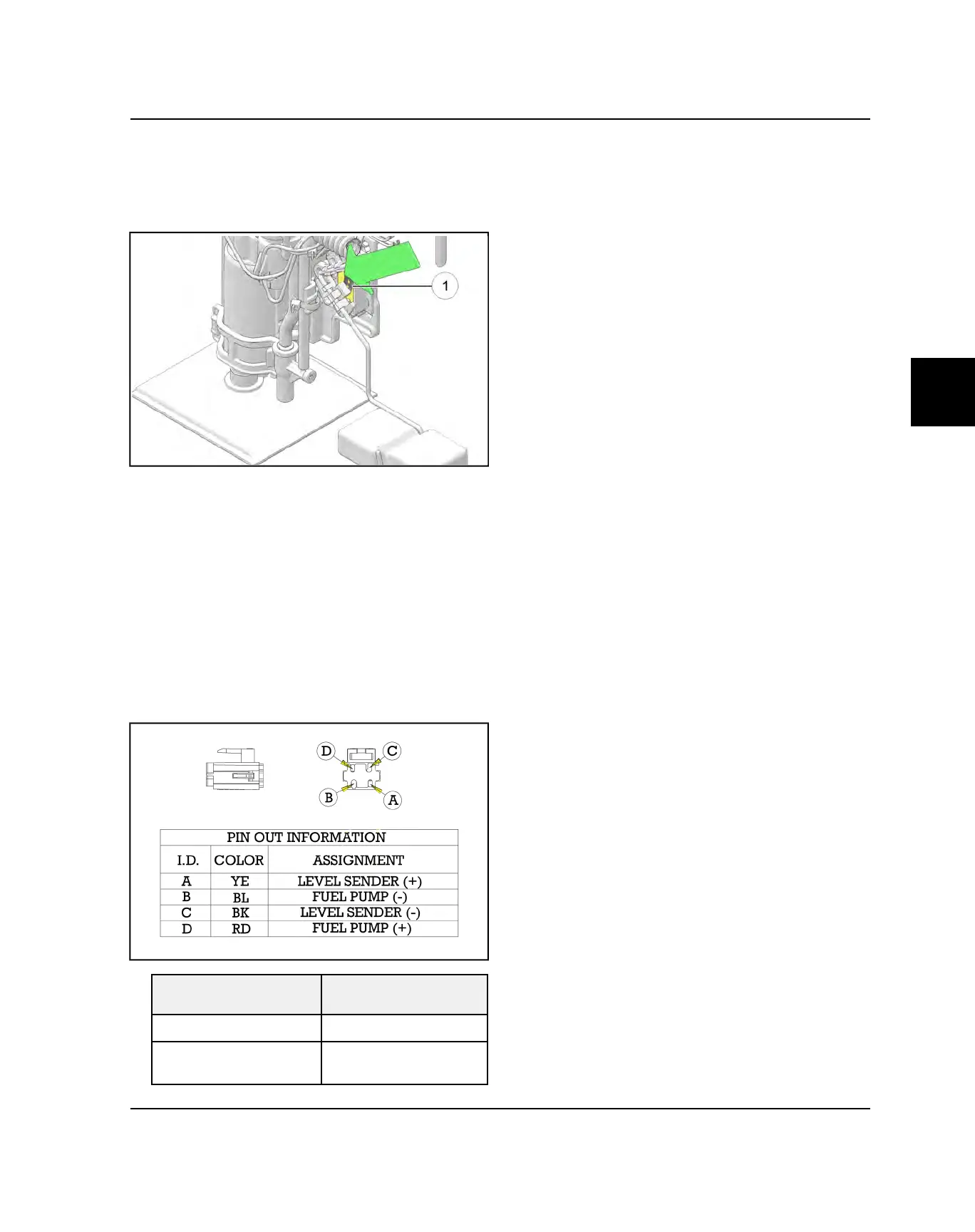

The fuel level sensor is located inside the fuel tank on
the fuel pump.
If fuel level readings are inaccurate when the
motorcycle is powered up, or if the fuel gauge isn’t
indicating fuel level at all, perform the following test
and refer to resistance values located at the end of this
procedure.
1. Remove the fuel pump. See Fuel Pump Removal
page 4.22.
2. Set multimeter to measure resistance. Attach
suitable test probe adaptors to meter leads (from
kit PV-43526).
3. On the fuel pump side of the connector, measure
resistance across the sensor (terminals A &C) and
compare to the table.
LEVEL SENSOR ARM
POSITION
APPROXIMATE
RESISTANCE LIMITS
Full (Top of Range)
97–103 Ω
Empty (Bottom of
Range)
445–455 Ω
FUEL DELIVERY / EFI
