Electrical connections
sh. 11 of 26
Signal inputs and outputs

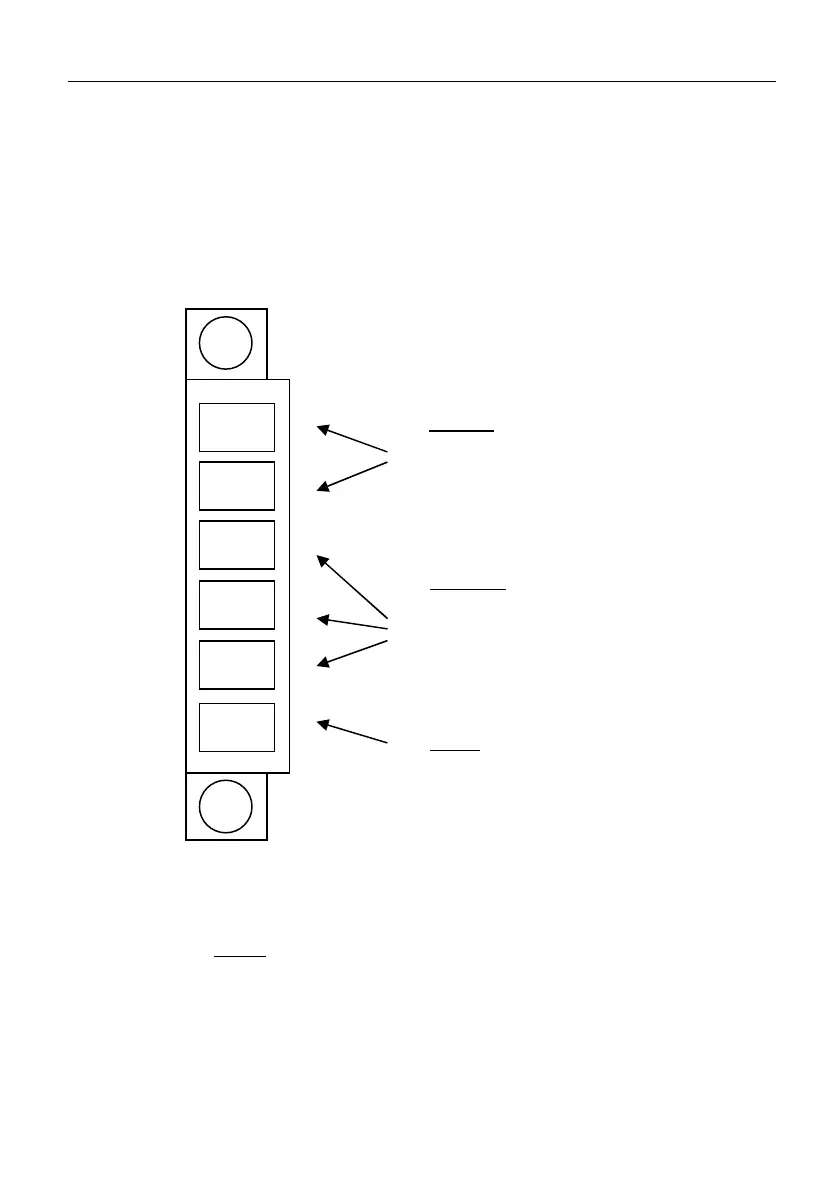

The six-pole input and output interface is assigned as follows:
OUT
IN
Input 1: Reset PROFInet-INspektor
®
- PIT
Input 2: Alarm acknowledgement (Reset the switch contact including
clearing of alarm list)
Input 3: Alarm acknowledgement (Reset the switch contact
with no clearing of alarm list)
Output:
- floating relay contact
- max. 24V DC +20%
- max. 1 A
- Polarity is not an issue
3 inputs:
- max. 24V DC ±20%
- inactive < 3V
- active > 10V
- maximum power 0.15mA
- electrically isolated
GND:
- frame potential of inputs
