Industrial Shields M-DUINO PLUS series - Page 11

Ref. IS.MDUINO.XXX

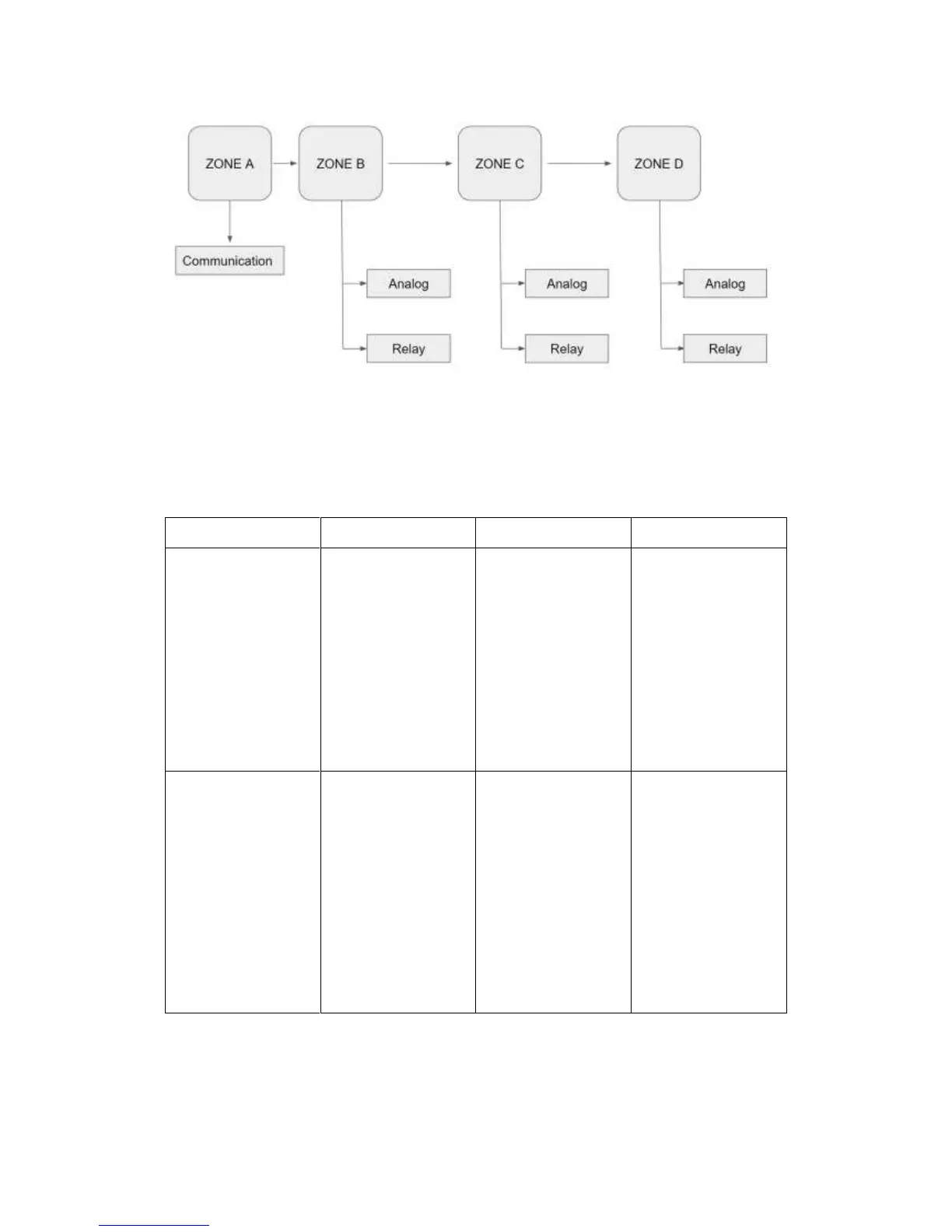

The distribution of the different features that provide the M-Duino Family is the
following one:
Shield
B Zone
C Zone
D Zone
Analog Shield
13 Inputs
(13 Digital inputs,
6 of which can
work as Analog
Input)
8 Outputs
(8 Digital Outputs,
3 of which can
work as Analog
Output)
13 Inputs
(13 Digital inputs,
6 of which can
work as Analog
Input)
8 Outputs
(8 Digital Outputs,
3 of which can
work as Analog
Output)
11 Inputs
(11 Digital Inputs,
4 of which can
work as Analog
Input)
6 Outputs
(6 Digital Outputs,
2 of which can
work as Analog
Outputs
Relay Shield
6 Inputs
(6 Digital Inputs,
4 of which can
work as Analog
Input)
11 Outputs
(8 Relay Outputs,
3 Digital Outputs,
3 of which can
work as Analog
Output)
6 Inputs
(6 Digital Inputs,
4 of which can
work as Analog
Input)
11 Outputs
(8 Relay Outputs,
3 Digital Outputs,
3 of which can
work as Analog
Output)
6 Inputs
(6 Digital Inputs,
4 of which can
work as Analog
Input)
9 Outputs
(7 Relay Outputs,
2 Digital Outputs,
2 of which can
work as Analog
Output)
