INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L
C-COM Satellite Systems Inc. Page 4
1.3 Pre-Configuration Check List
The following items should be completed/known prior to configuring the iNetVu® Mobile System.
Satellite Name and Coordinate
Beacon Frequency
Transmit and Receive Polarization (Horizontal/Vertical)
PLL LNB – 5KHz Accuracy or better is recommended
Ensure the switch next to J1 on the back of the iNetVu® BR300L is set to RS-232.
Ensure to attach the null modem adapter, to the 7000 Controller DB9 port.
Ensure iNetVu Beacon Receiver is set to “REMOTE MODE”
To place the unit in the REM (remote) mode of operation by depressing and holding the LOC/REM
button and depressing and releasing the RESET button. The unit will toggle between the LOCAL and

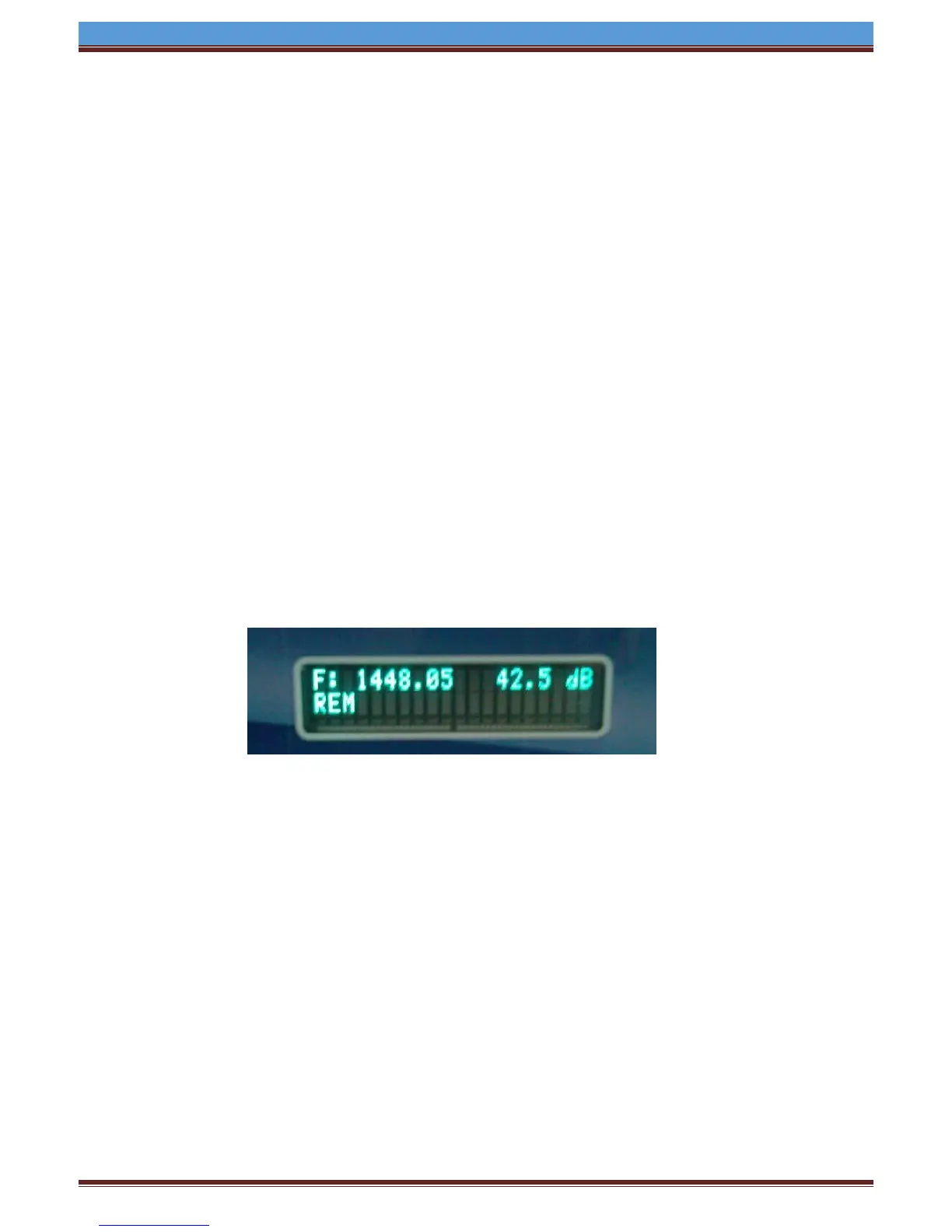

REMOTE mode of operation. When the REMOTE mode is selected, REM will be displayed in the lower
left corner of the front panel display.
