iNetVu 7000 Series Instruction Manual

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L
C-COM Satellite Systems Inc. Page 5
1.4 iNetVu® Mobile System Wiring
1.5 Option 1: BR300L Stand Alone (modem free) - USB PC Connection

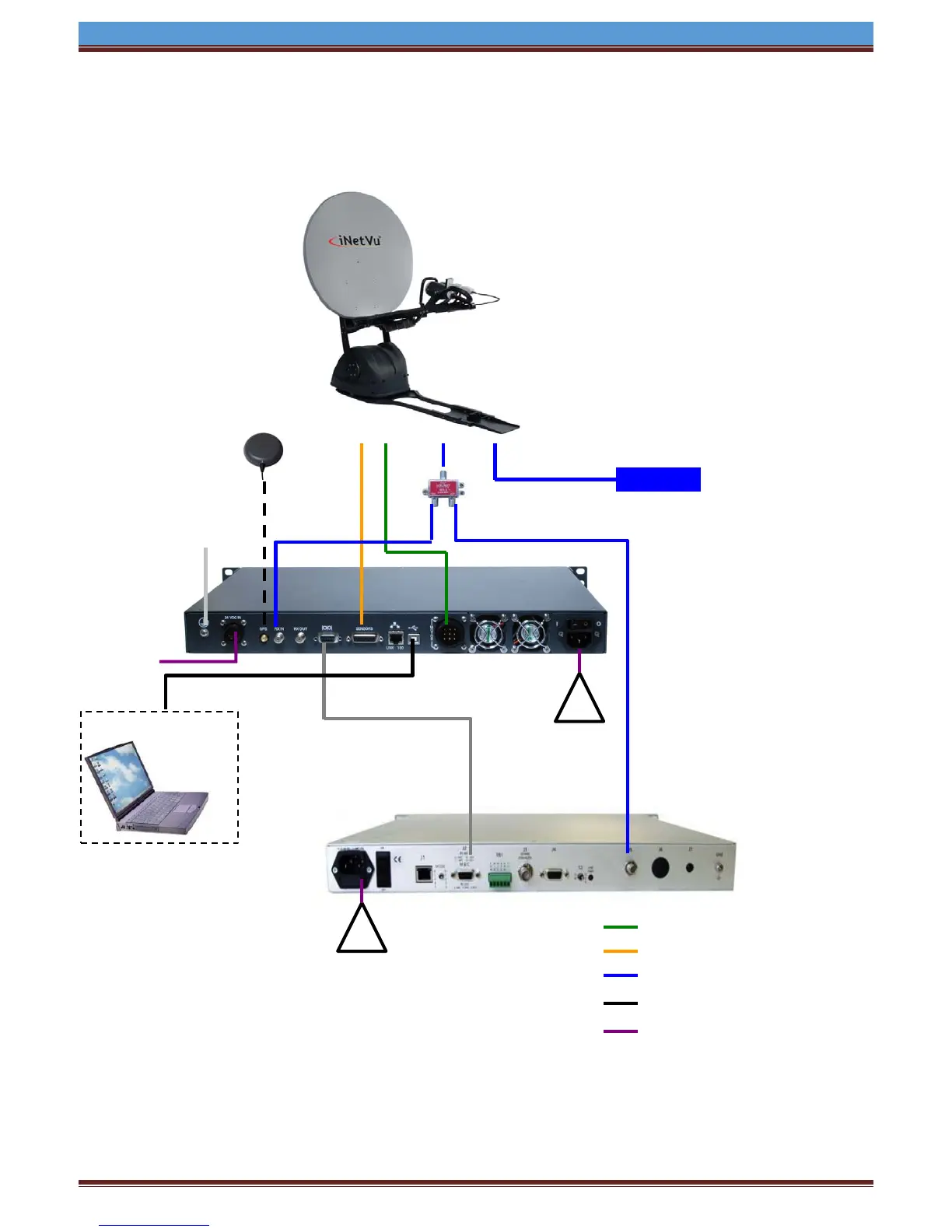

Beacon Receiver and 7000 Controller – Stand Alone USB Connection
RX
GPS
Antenna
TX
Motor
Cable
Sensor
Cable
!
90 - 264
VAC
!
90 - 264
VAC
DB9 Male to Female Serial
Cable (Ensure NULL modem
adapter is attached to cable
or controller)
Computer
USB Cable
RX IN
TX Source
RX
Power Pass
The Power to
the LNB may be
sent from the
Beacon
Receiver.
Ensure LNB
Power Switch is
turned ON, and
7000 Controller
LNB Power is
disabled
Motor Control Cable
Sensor Cable
RG6 Coaxial Cable
USB Cable
Power Cable
*Ground
protection
24 VDC Input
(option)
