iNetVu 7000 Series Instruction Manual

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L
C-COM Satellite Systems Inc. Page 8

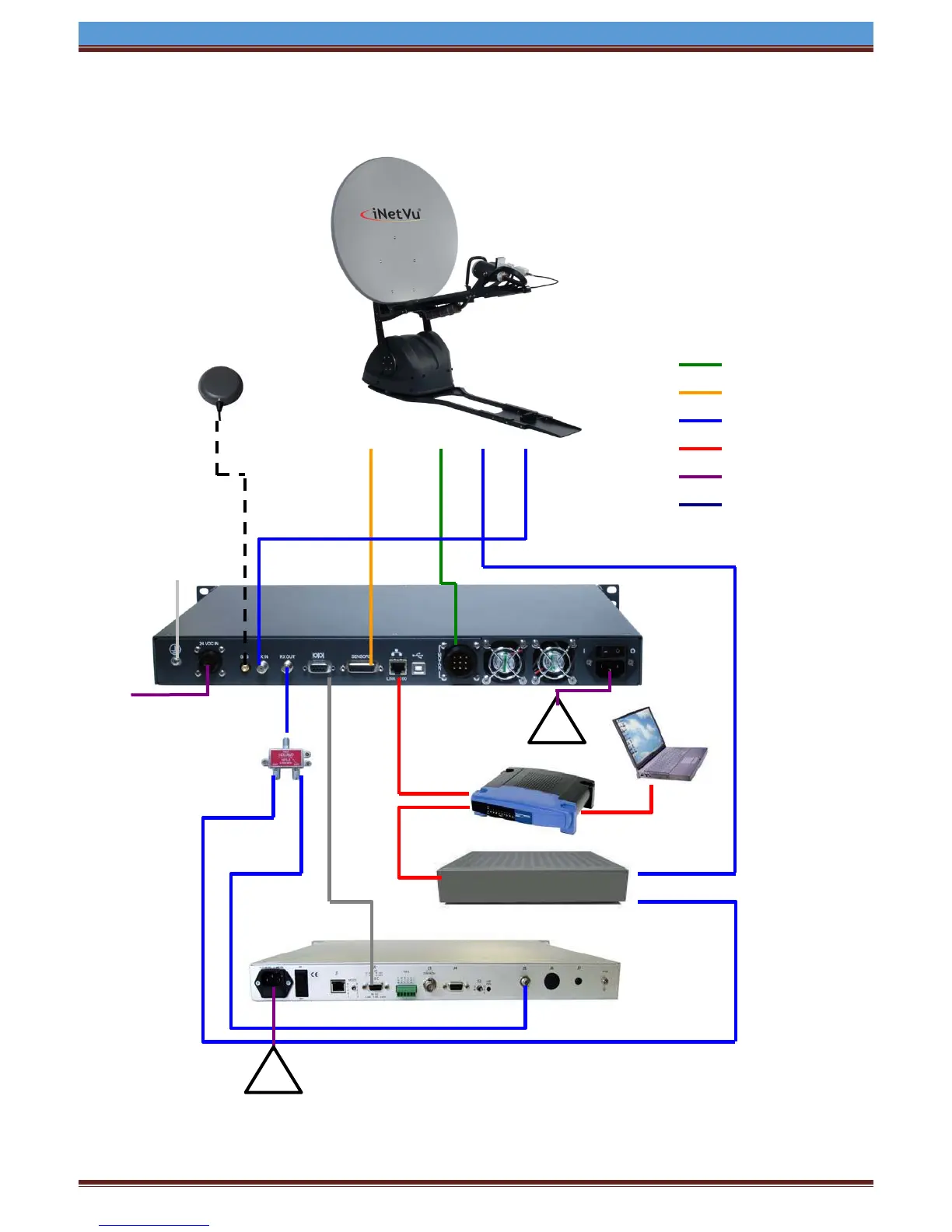

1.8 Option 4: BR300L with MODEM – PC Network Connection
!
90 - 264 VAC
!
90 - 264 VAC
RX
GPS
Antenna
Sensor
Cable
DB9 Male to
Female Serial
Cable (Ensure NULL
modem adapter is attached
to cable or controller)
RX OUT
SAT OUT
RX IN
Ensure LNB
Power Switch
is TURNED
OFF on the
Beacon
Receiver
Motor Control Cable
Sensor Cable
RG6 Coaxial Cable
Network Cable
USB Cable
Power Cable
LNB should be
powered from the
7000 controller
TX
Motor
Cable
SAT IN
Network
Cable
A.B.C.D+2
255.255.255.X
A.B.C.D+1
255.255.255.X
A.B.C.D
255.255.255.X
*Ground
protection
24 VDC Input
(option)
