Description – EtherCat ports and physical
connection

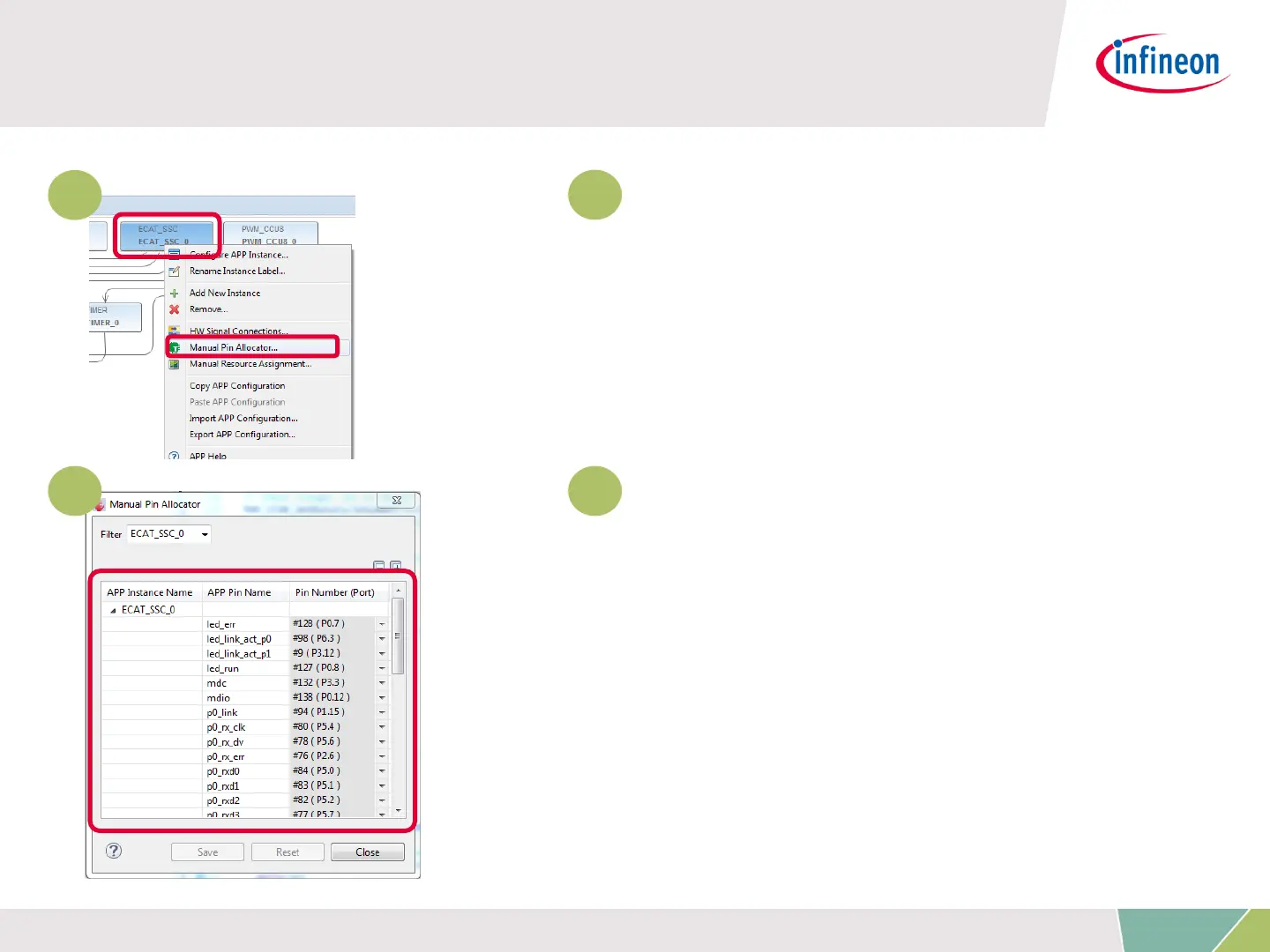

Right click on the ECAT_SSC APP.
From the context menu select
„Manual Pin Allocator“ to open the
pin allocation for the EtherCAT
module.
Inside Manual Pin Allocator you
can configure the EtherCAT ports for
your application. For the example
provided, the configuration fits to
the XMC4800 Relax EtherCAT Kit.
1
1
2 2
28
