ACTIONS

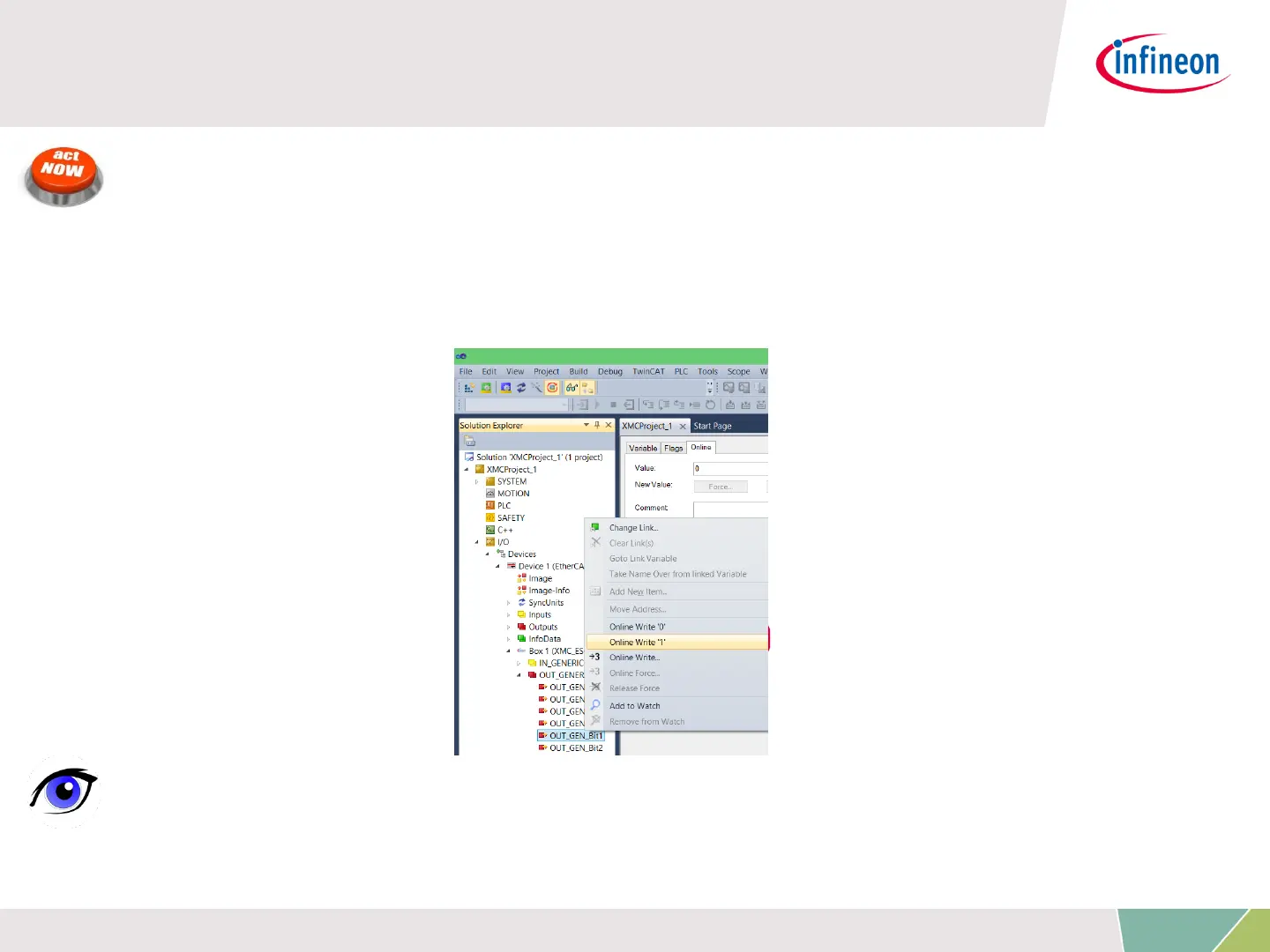

Right click on OUT_GEN_Bit1 of the slave node and select „Online
Write…“ inside the context menu. Change the value from 0 to 1 to
switch on LED1/ from 1 to 0 to switch off LED1.
OBSERVATION
LED1 „XMC EtherCAT PHY Board“ is turned on/off according to
OUT_GEN_Bit1 setting.
How to test – Setting slave outputs on master
(1/2)
