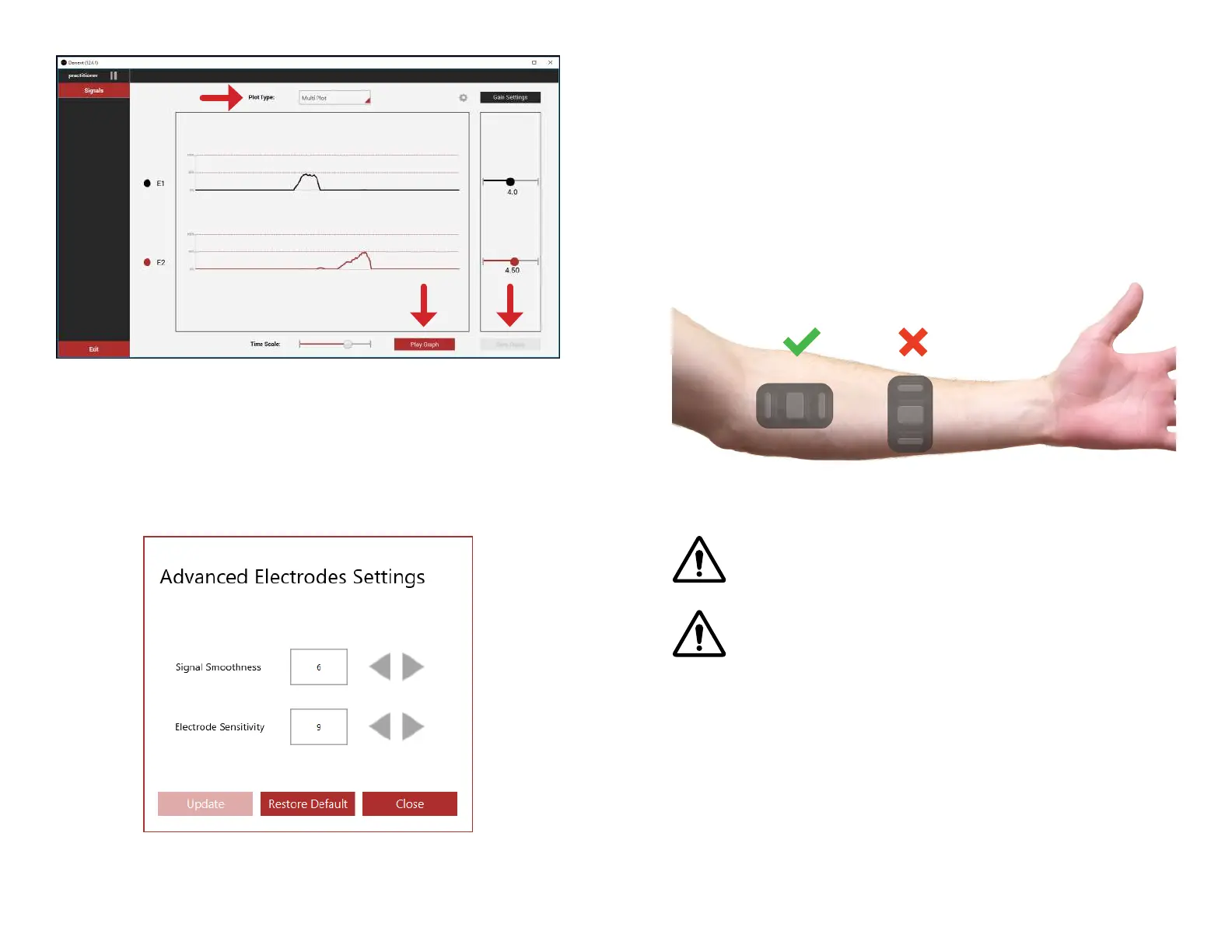

The figure above shows the signals in multi-plot mode. Gains were changed
and saved, therefore the Save Gains button is inactive. The signals are also
paused and the Play Graph button can be clicked to reactivate them.
INCORPORATING IBT ELECTRODES
INTO SOCKET
Selecting Ideal Electrode Sites
Site selection for the IBT Electrodes should be performed using the same
techniques for standard dry electrodes. Electrode signals can be viewed through
the Element software to determine contraction strength in various locations.
NOT TO SCALE
WARNING: Ensure IBT Electrodes are placed only on intact skin.
WARNING: After removing the prosthesis, always check for skin
irritation and pressure sores under the electrode sites. If irritation is
present, discontinue the use of the prosthesis until the skin is healed
and check if socket adjustments are necessary to alleviate pressure.
