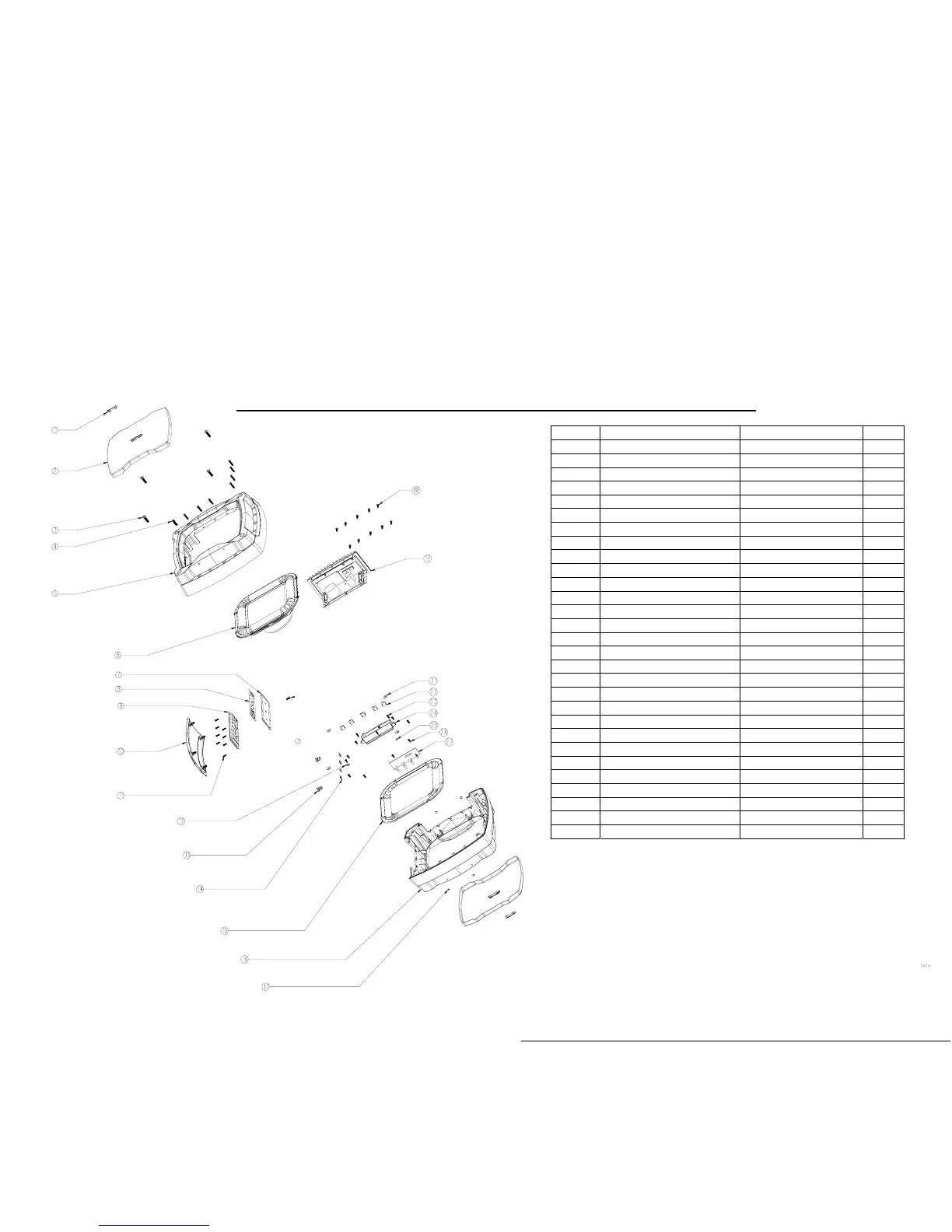

Infinity BassLink II - Exploded View

EXPLODED VIEW
Ref # Description Part Number Qty
1 Infinity Logo 316-000-00130-1BA 2
2 Grille 329-100-05125-0VA 2
3 Screw M6*25 Black 351-AM06025A946 8
4 Screw T4*25 Black 352-AM04025D964 16
5 Front baffle 372-000-05027 1
6 Woofer F25X12PR-03DW-P 1
7 Gasket 333-EVA-05142-0BA 1
8 PVC label 315-PC-05035-0TAE 1
9 Side Cover 305-PC-05007-0BA 1
10 Plastic Control Cover 305-PC-05008-0BAE 1
11 Screw M3*12 Black 351-AM03012A090 8
12 Grommet 335-NYL-05012-0WA 1
13 Rubber Cover Retainers 338-RUB-05027-0BA 4
14 Metal Insert 339-FE-05015 4
15 Passive Woofer PR-255008-P 1
16 Back Baffle 372-000-05028 1
17 Rubber Cork 338-RUB-05029-0BA 8
18 Screw M4*15 Black 351-AM04015A947 10
19 Heat Sink 011-7525-00580 1
20 Screw M3*12 Black 352-CM03012D076 1
21 Gasket 333-EVA-05139-0BA 12
22 Metal Insert 339-FE-05014 5
23 Screw M3*12 Black 352-AM03012D831 3
24 Cover 398-PC-05128 1
25 Light Pipe 398-PC-05127 1
26 Screw M4*12 Black 352-HM04012D319 9
27 Control PCB 1
28 Knob Gain/Xover/Base 015-7500-00130 3
Powered Subwoofer Basslink II
10
2.6 ohm DCR
