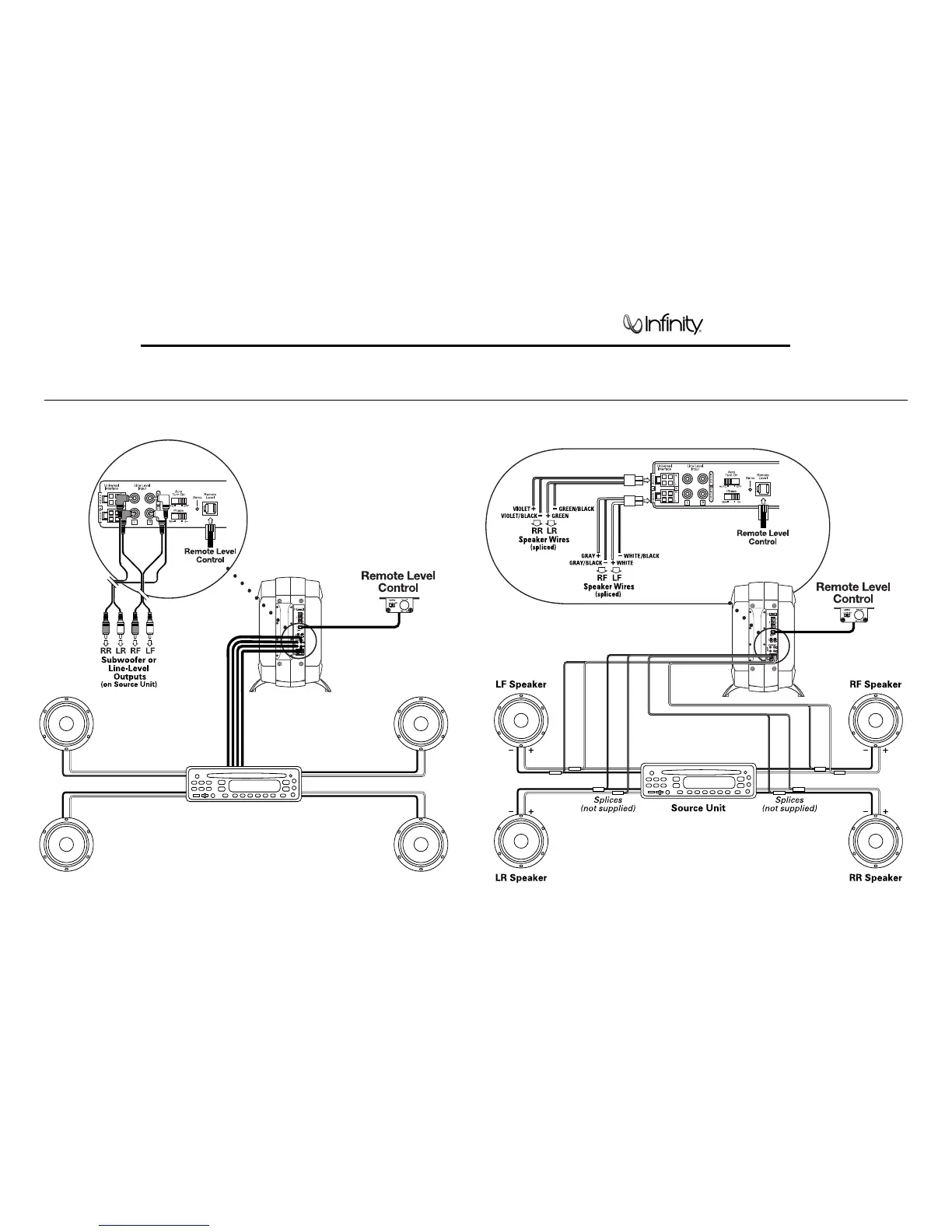

Figure 7. BassLink II audio connections for a head
unit equipped with four line-level (RCA) outputs.
APPLICATIONS (CONTINUED)
Figure 8. BassLink II audio connections for a head
unit equipped with four speaker-level outputs.
LF Speaker
+–
RF Speaker
LR Speaker RR Speaker
+–
+–+–
Source Unit
BassLink II
(right side)
+–
RCA Stereo Cables
(not supplied)
BassLink II
(right side)
Powered Subwoofer Basslink II
4
