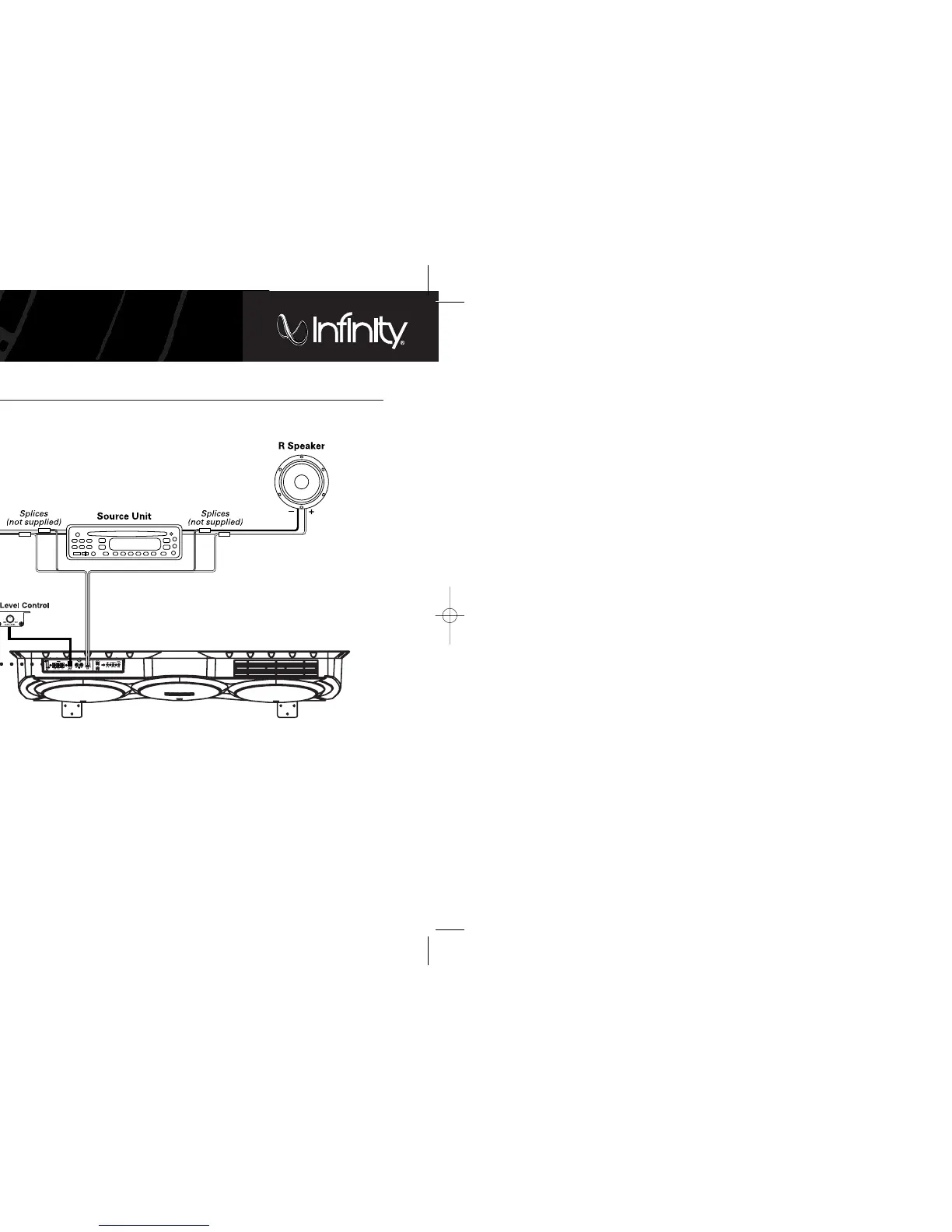

Figure 9. BassLink T audio connections for a head
unit equipped with two speaker-level outputs.
APPLICATIONS (CONTINUED)
POWER
+BATT REM GND
FUSE
25A
REMOTE
LEVEL
CONTROL
LINE LEVEL
INPUT
HIGH LEVEL
INPUT
AUTO
TURN ON
PHASE
GAIN CROSSOVER
BASS
BOOST
AUTOOFF
180°0°
+
R
–
+
L
–
L R
BassLink T OM 10/13/04 2:21 PM Page 5

Infinity BassLink T Specifications

Amplifier Specifications

amplifier power	250Wrms
frequency response	20Hz to 120Hz
fuse	30A
max current draw	26A
idle current draw	< 800mA
input sensitivity line-level	50mV to 4V
input sensitivity high-level	1V to 16V
crossover frequency	50Hz to 120Hz
crossover slope	12dB per octave
bass boost	–6dB to +3dB @ 40Hz

Weight and Dimensions

dimensions	40-3/8" x 6-7/16" x 14-3/8" (1026mm x 164mm x 366mm)
