Infinity Beta SW Series User Manual

CSW-10

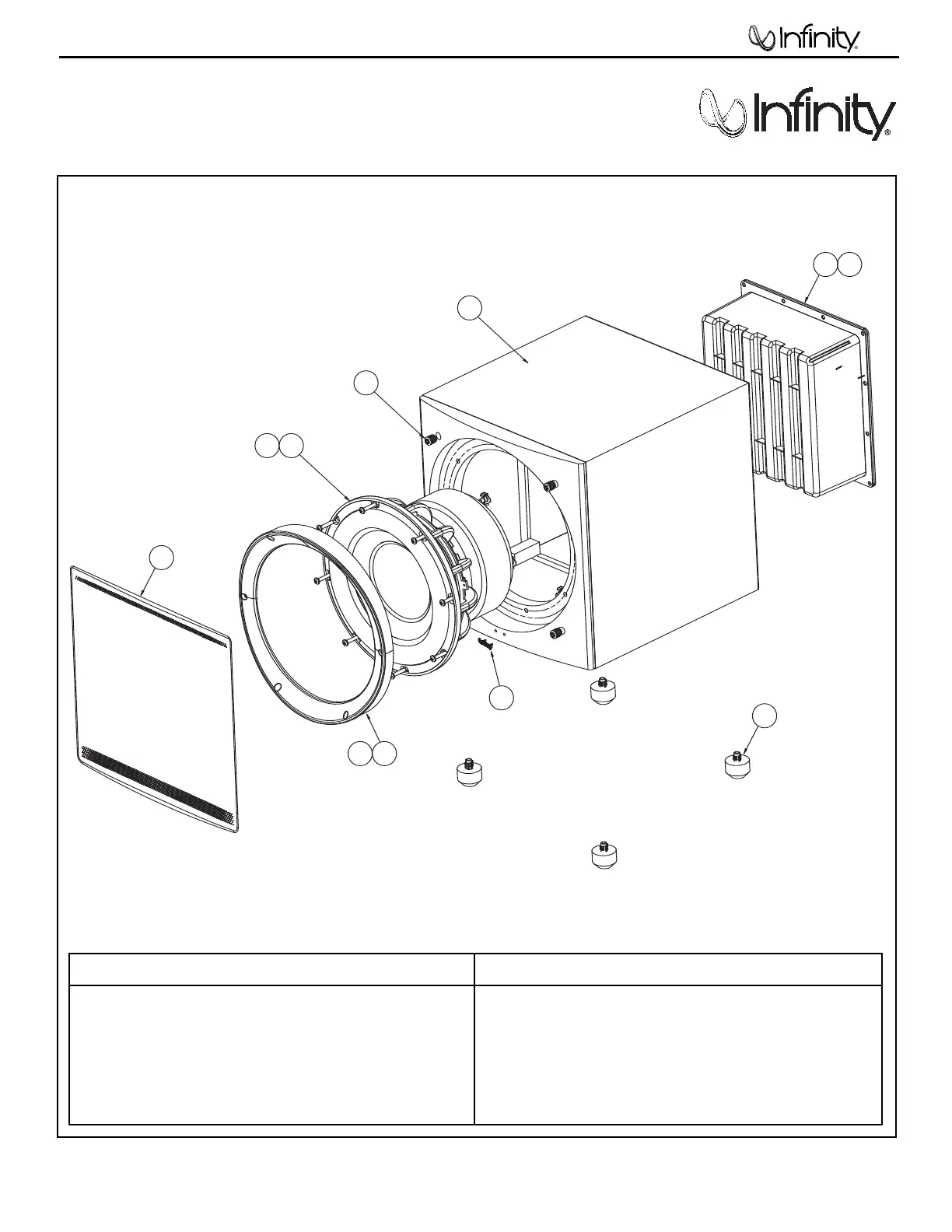

Exploded View
9 1
6
11
83
5
4
2
107
CSW-10
EXPLODED VIEW
Infinity Systems, 250 Crossways Park Drive, Woodbury, New York 11797
6/04
ITEM
NO.
DESCRIPTION
QTY
.
P
AR
T NO.
1. CSW-10 Amplifier 1 Not for Sale
2.
CSW
-10 Cabinet
1
Not for Sale
3.
T
rim Ring, 10” CSW
-10 (Black) 1 352438-001
Trim Ring, 10” CSW-10 (Beech/Cherry) 1 352438-002
4. Cup, Grille (Black) 4 333249-001
Cup, Grille (Beech/Cherry) 4 333249-003
5. Logo CSW-10 1 351617-001
6. Foot Assembly, Rubber, 4 338037-002
Blk w/Threaded Insert
ITEM
NO.
DESCRIPTION
QTY
.
P
AR
T NO.
7. DD Screw (woofer), 10-32 x 1 FIL 8 21754
8.
Screw (trim ring)
6
903802-016
#8 x 1”, PB, HXS, ZINC
9. Screw (amplifier) 12 900101-016
#8 x 1”, PB, PPH, BLK
10. Woofer, 10” Sub DCR=3.4 ohms ±10% 1 351508-001
11. Grille Assembly, Frnt CSW-10 (Black) 1 352332-003
(Beech/Cherry) 1 352332-004
Technical Manual
CSW-10
CSW-10
7

Infinity Beta SW Series Specifications
