Infinity HTS-20 - Component Side Trace

22
Amplifier/Subwoofer BU-120/HTS-20

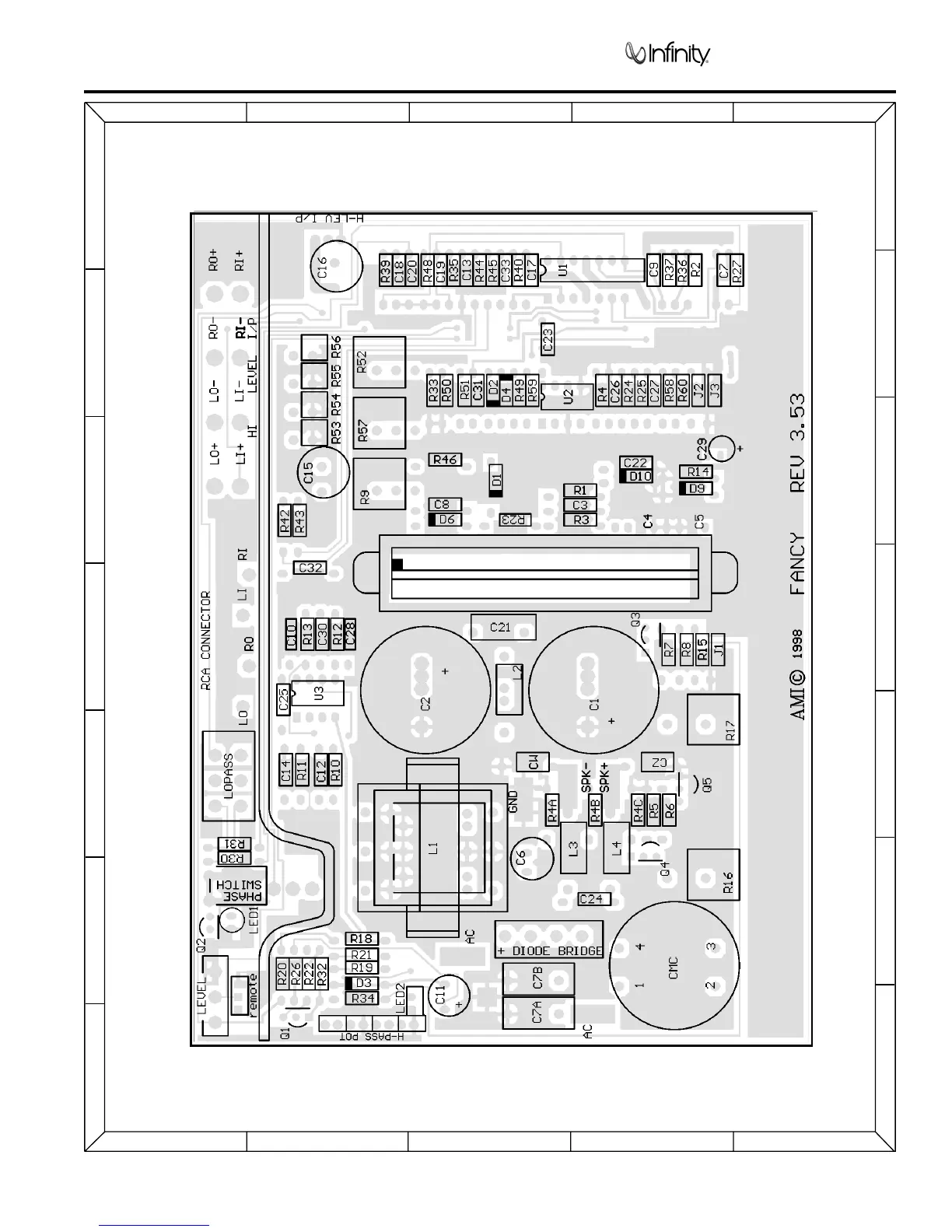

BU-120/HTS-20 rev. A PCB (Component Side Trace)
