Infinity PRELUDE MTS User Manual

5
PRELUDE MTS
SUBWOOFER
REAR SLOT
IN BOTTOM
OF SPEAKER
TOWER
SPEAKER
TOWER
10-32 SOCKET
HEAD SCREWS
10-32 SOCKET
HEAD SCREWS
SCREW CAP
ALIGNMENT
SLOTS
SCREW
CAPS
FRONT VIEW
REAR SLOT
IN BOTTOM
OF SPEAKER
TOWER
SPEAKER
TOWER
S
10-32 SOCKET
HEAD SCREWS
REAR VIEW

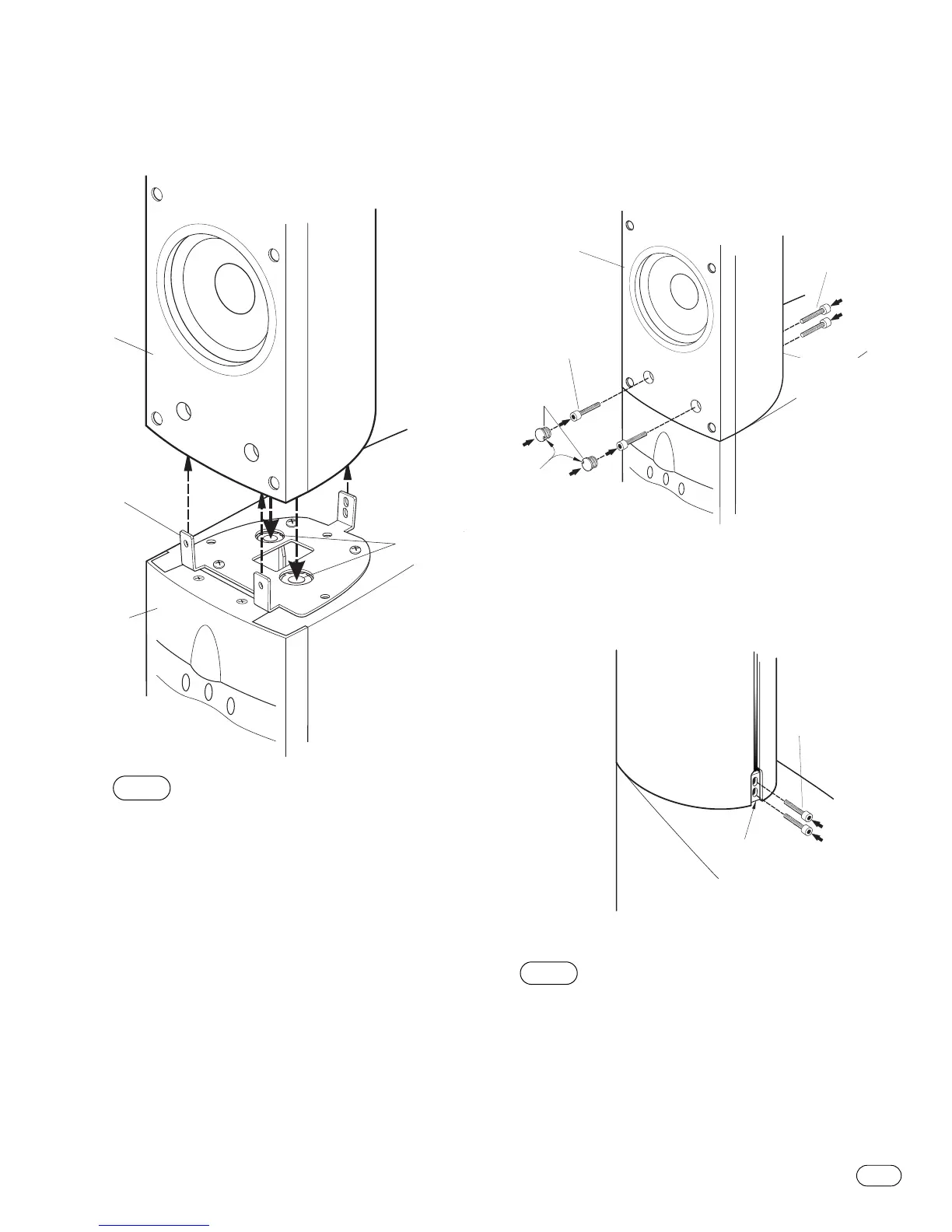

– Fasten the four 10-32 Socket Head Screws
through the tower base as shown:two through the front baffle
and two in the rear slot.Press flush into place two screw caps to
hide holes in front baffle base.Make sure that the alignment
slots point toward the center to assure that the surface curve
matches that of the baffle.
STEP 8
SUBWOOFER
SPEAKER
TOWER
BRACKET
GUIDES
GUIDE
HOLES FOR
ALIGNMENT
PINS
– Slowly lower the tower assembly onto the
subwoofer,being careful to insert the alignment pins into
receptacle guide holes.
STEP 7
