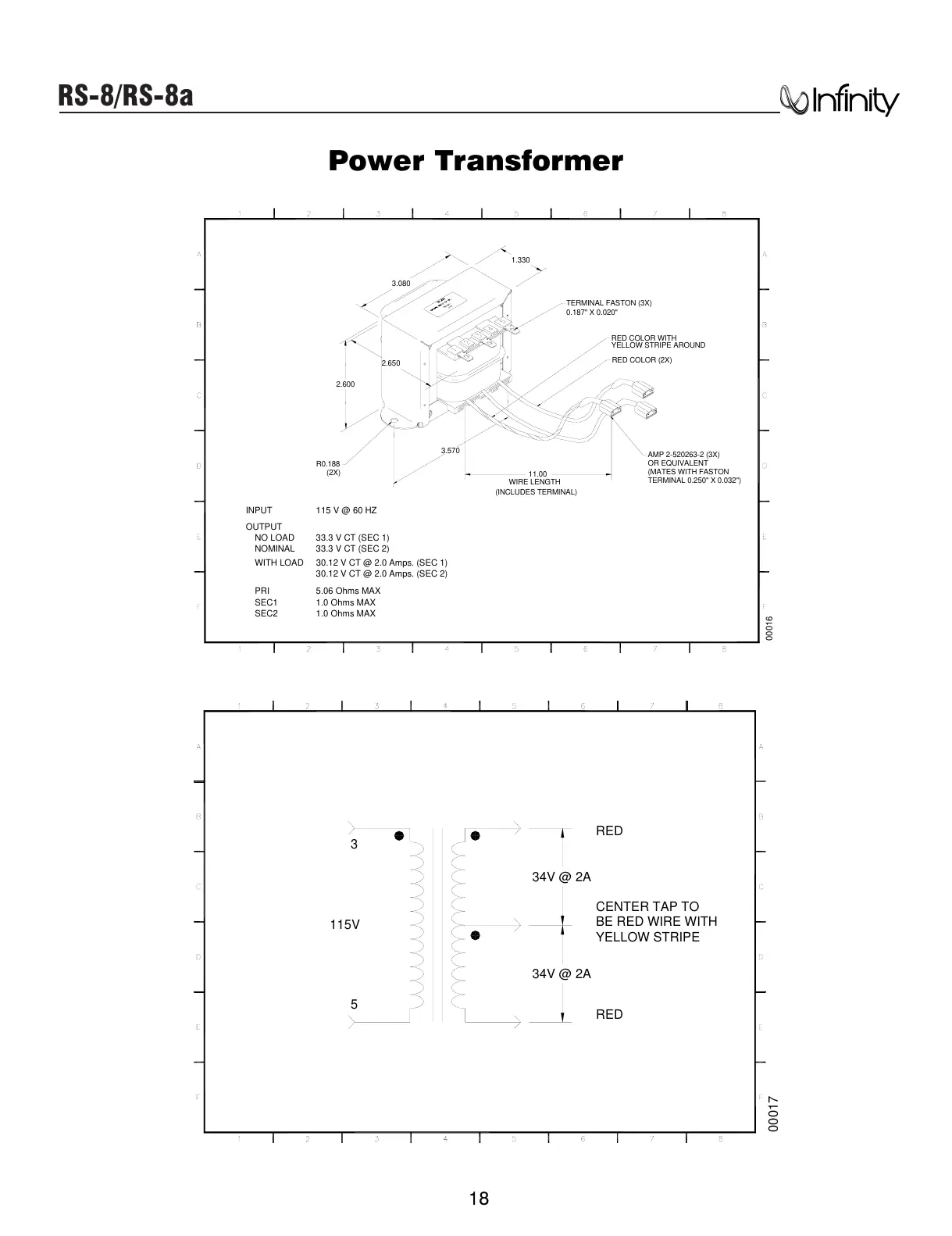

Infinity RS-8 - Power Transformer

RS-8/RS-8a
18
TERMINAL FASTON (3X)
AMP 2-520263-2 (3X)
0.187" X 0.020"
OR EQUIVALENT
(MATES WITH FASTON
TERMINAL 0.250" X 0.032")
WIRE LENGTH
(INCLUDES TERMINAL)
RED COLOR (2X)
RED COLOR WITH
YELLOW STRIPE AROUND
3.570
R0.188
(2X)
3.080
1.330
2.650
2.600
11.00
00016
INPUT
OUTPUT
115 V @ 60 HZ
NO LOAD
NOMINAL
33.3 V CT (SEC 1)
33.3 V CT (SEC 2)
WITH LOAD 30.12 V CT @ 2.0 Amps. (SEC 1)
30.12 V CT @ 2.0 Amps. (SEC 2)
PRI 5.06 Ohms MAX
SEC1 1.0 Ohms MAX
SEC2 1.0 Ohms MAX
115V
CENTER TAP TO
BE RED WIRE WITH
YELLOW STRIPE
3
5
RED
RED
34V @ 2A
34V @ 2A
00017
Power Transformer
