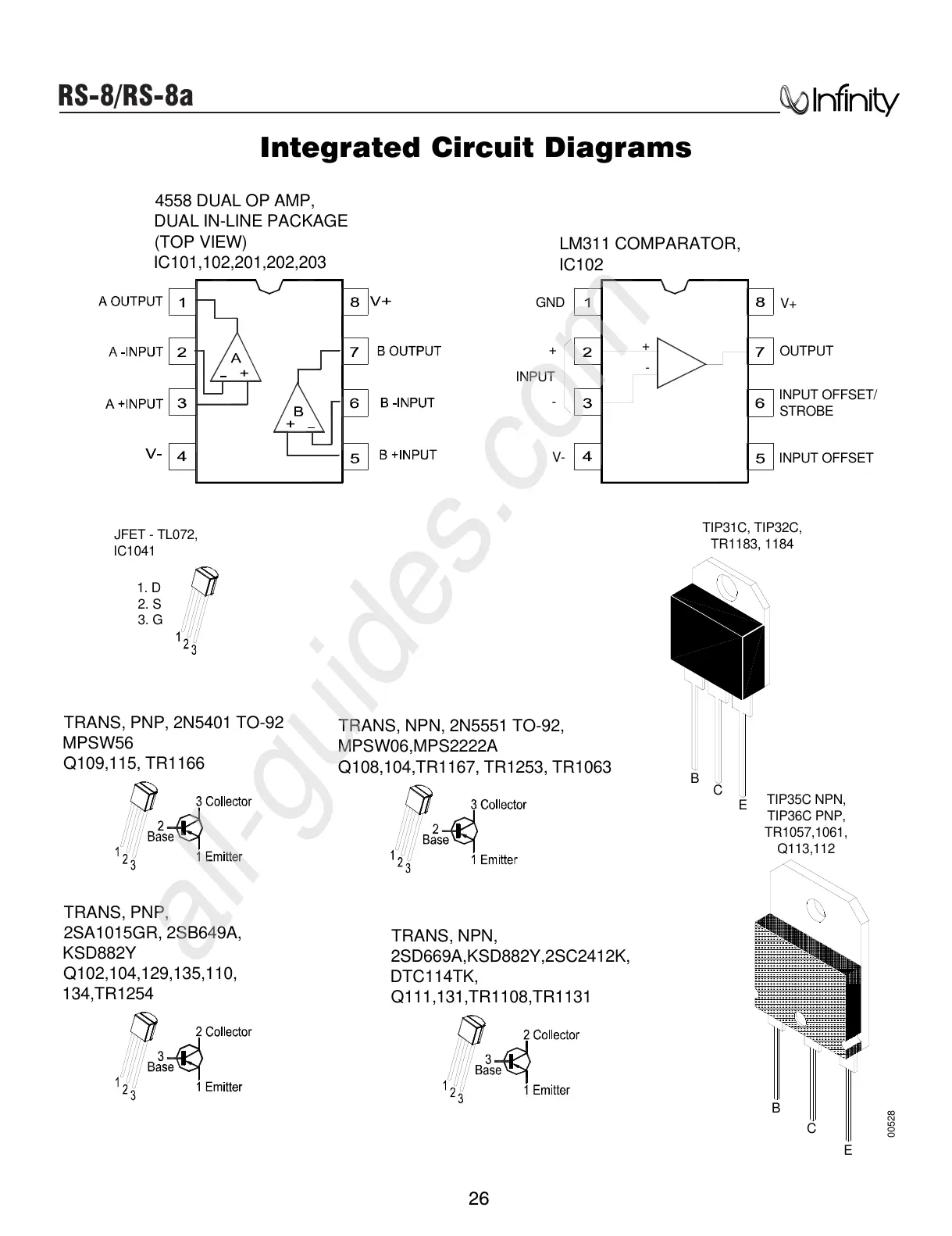

Infinity RS-8 - Integrated Circuit Diagrams

RS-8/RS-8a
26
4558 DUAL OP AMP,
DUAL IN-LINE PACKAGE
(TOP VIEW)
IC101,102,201,202,203
LM311 COMPARATOR,
IC102
GND
+
-
INPUT
V-
V+
OUTPUT
INPUT OFFSET/
STROBE
INPUT OFFSET
+
-
JFET - TL072,
IC1041
1. D
2. S
3. G
TRANS, PNP, 2N5401 TO-92
MPSW56
Q109,115, TR1166
TRANS, PNP,
2SA1015GR, 2SB649A,
KSD882Y
Q102,104,129,135,110,
134,TR1254
TRANS, NPN, 2N5551 TO-92,
MPSW06,MPS2222A
Q108,104,TR1167, TR1253, TR1063
TRANS, NPN,
2SD669A,KSD882Y,2SC2412K,
DTC114TK,
Q111,131,TR1108,TR1131
C
B
E
TIP35C NPN,
TIP36C PNP,
TR1057,1061,
Q113,112
E
B
C
TIP31C, TIP32C,
TR1183, 1184
00528
Integrated Circuit Diagrams
