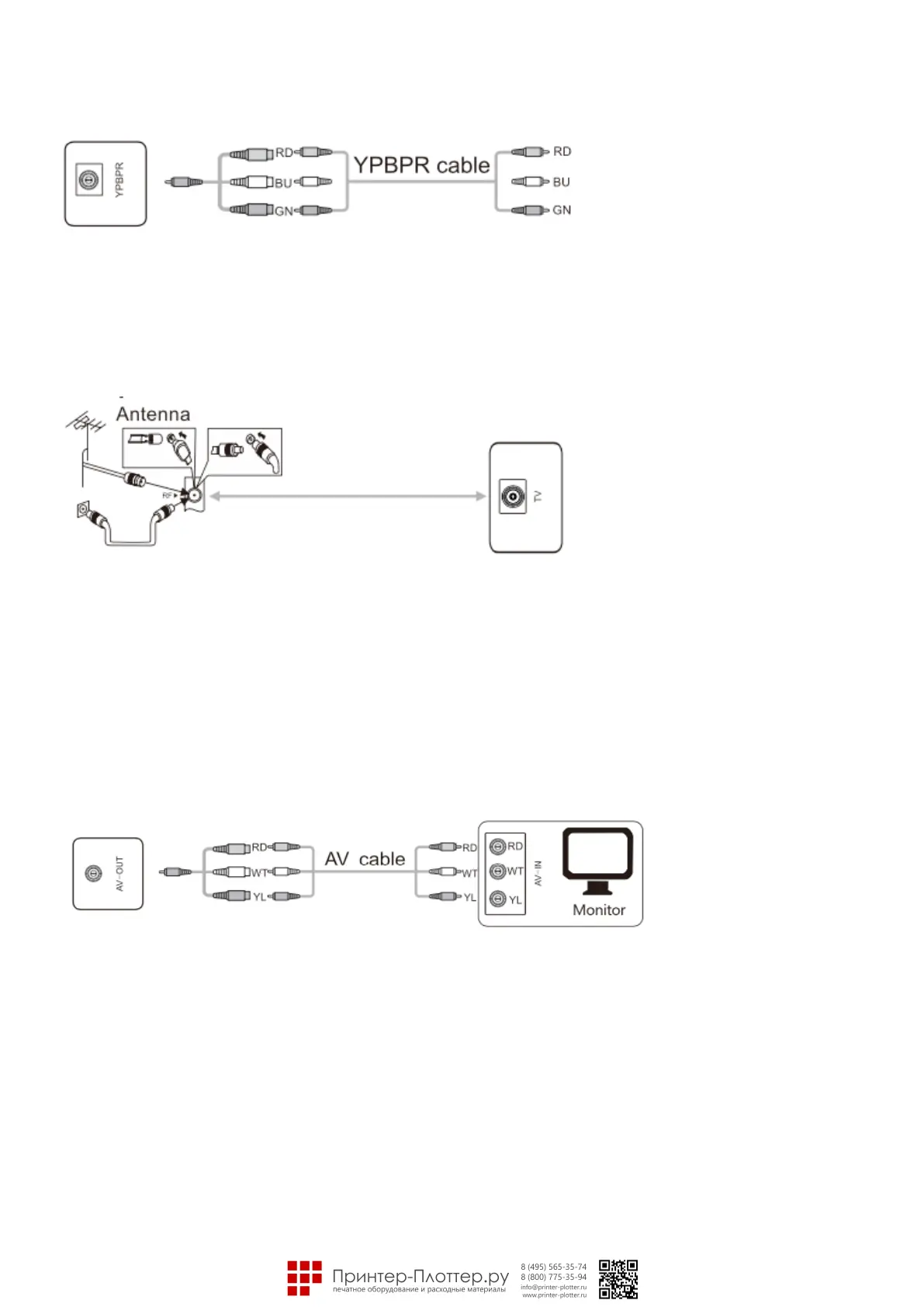

• YPBPR port
Note:The type of YPBPR port is 3.5mm MINI port. For connecting signals, a MINI adapter cable and a YPBPR
cable are required.
• TV port
Warning: To connect an outdoor antenna to the signal port on this product, please first power-off the product.
The outdoor antenna should not be close to wires of high-voltage mains supply, otherwise electric shock may
result.
Signal output ports
• AV-OUT port
Note: The type of AV-OUT port is <D3.5mm MINI port. For outputting signals, a MINI adapter cable and an AV
cable are required; for connecting signals, a MINI adapter is required and connected as indicated by the figure.
