8 Communication

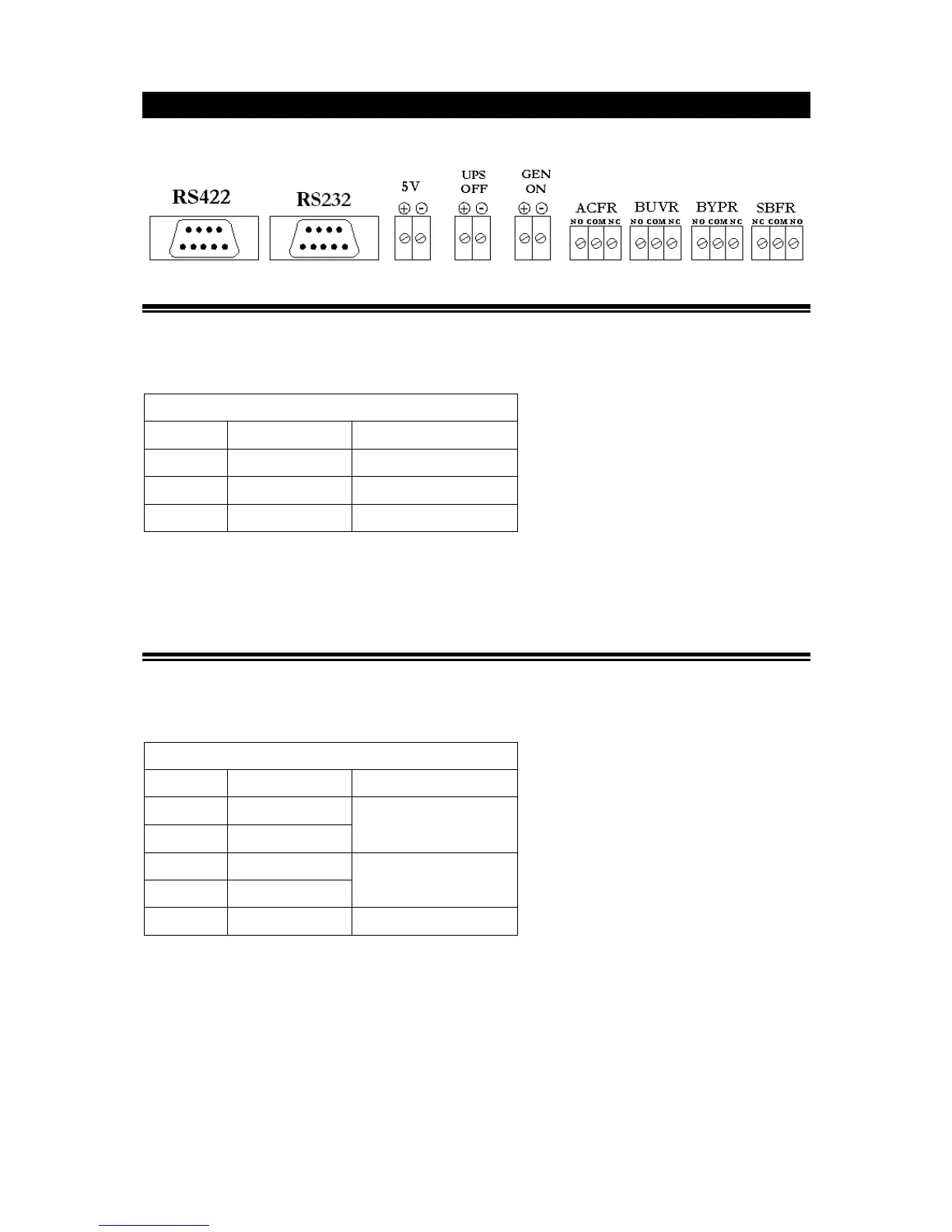

All related terminals are on the communication interface board (A1). Connector layout is as following:
8th1 RS232 Communication
DSUB-9 female connector with the following pin layout shall be used on the UPS side of the connection
cable.
Pin layout is given below:
RS232 PIN LAYOUT
Pin # Signal Name Signal Description
2 RX Receive data
3 TX Transmit data
5 GND Signal ground
RS232 cable shall be shielded and shorter than 15 m.
Only one of the RS232/RS422 communications can be activated at one time. The selection between
RS232 and RS422 communications can be done by setting the COMM parameter in COMMANDS menu,
as desired.
8th2 RS422 Communication
DSUB-9 male connector with the following pin layout shall be used on the UPS side of the connection
cable.
Pin layout is given below:
RS422 PIN LAYOUT
Pin # Signal Name Signal Description
6 A Receive signal pair
5 B
1 Z Transmit signal pair
9 Y
4 GND Signal ground
RS422 cable shall be shielded and shorter than 100 m.
Only one of the RS232/RS422 communications can be activated at one time. The selection between
RS232 and RS422 communications can be done by setting the COMM parameter in COMMANDS menu,
as desired.
