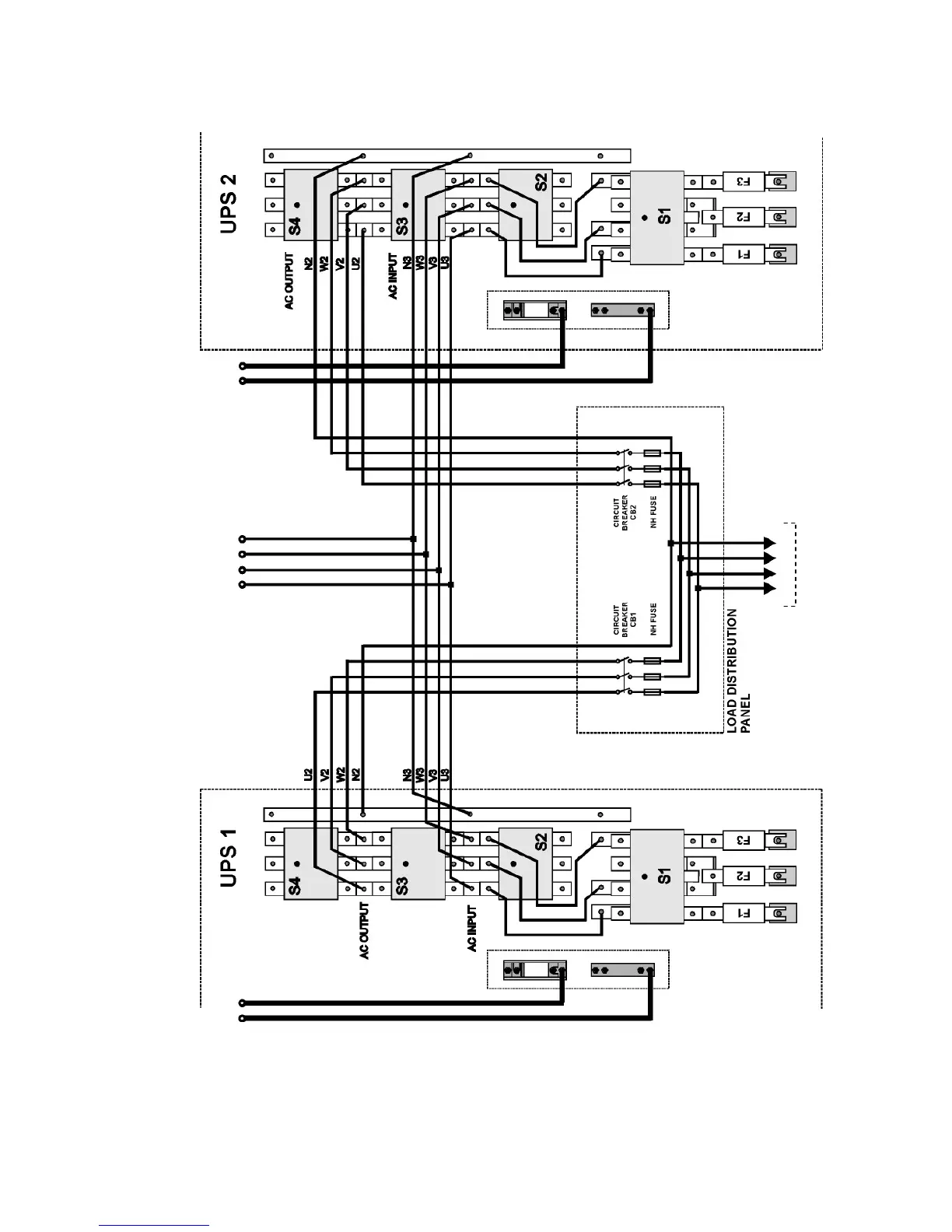

Figure 6-3-b POWER CONNECTIONS OF TWO UPS’s FOR PARALLEL OPERATION (100-120-160-200 kVA)
U V W N
LOAD
AC INPUT
3 PHASE + Neutral
BATTER
Y
GROUP
-
+
(To be supplied by
the customer)
Neutral
BATTERY GROUP
-
+
Neutral
