Operation & Maintenance Manual Lubrication
66 22592086
Lubrication

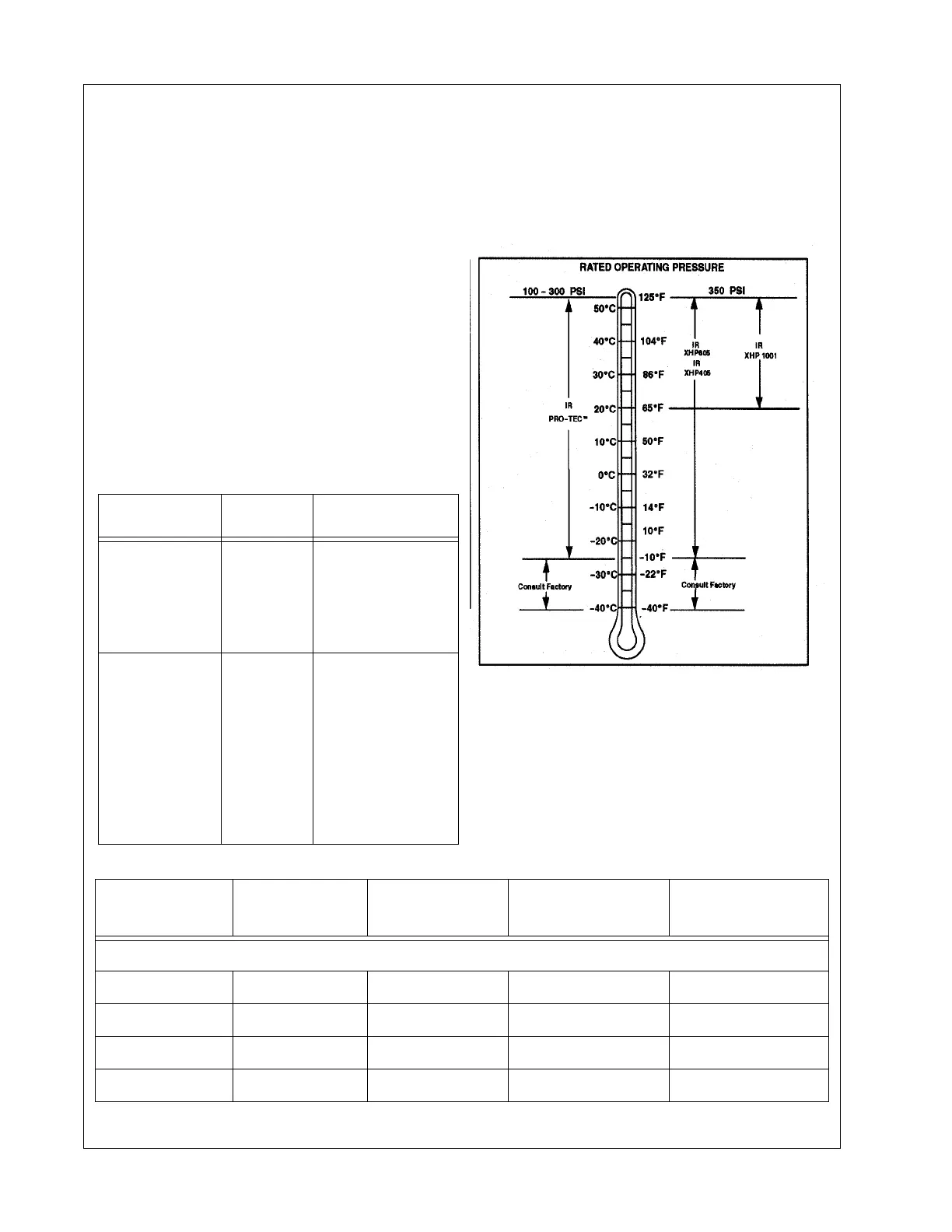

Portable Compressor Fluid Chart
Refer to these charts for correct compressor
fluid required. Note that the selection of fluid is
dependent on the design operating pressure of
the machine and the ambient temperature
expected to be encountered before the next oil
change.
NOTE: Fluids listed as “preferred” are
required for extended warranty.
Compressor oil carryover (oil consumption)
may be greater with the use of alternative
fluids.
Preferred Ingersoll-Rand Fluids - Use of these
fluids with original I-R filters can extend airend
warranty. Refer to operator’s manual warranty
section for details or contact your I-R
representative.
Design Operating
Pressure
Ambient
Temperature
Specification
100 psi to 300 psi
-10°F to 125°F
(-23°C to 52°C)
Preferred:
IR Pro-Tec™
Alternate:
ISO Viscosity Grade 46
with rust and oxidation
inhibitors, designed for
air compressor service.
350 psi
-10°F to 125°F
(-23°C to 52°C)
65°F to 125°F
(-18°C to 52°C)
Preferred:
IR XHP 605
Alternate:
IR XHP405
ISO Viscosity Grade 68
Group 3 or 5 with rust and
oxidation inhibitors
designed for air
compressor service.
Preferred:
XHP605
IR XHP1001
Ingersoll-Rand
Preferred Fluids
1 gal. (3.8 Litre) 5 gal. (19.0 Litre) 55 gal. (208.2 Litre) 220 gal. (836 Llitre)
Preferred:
IR Pro-Tec™ 36899698 36899706 36899714 36899722
IR XHP605 - 22252076 22252050 22252068
IR XHP1001 - 35612738 35300516 -
XHP405 - 22252126 22252100 22252118
