20 Viewing the system
Fire detection and extinguishant system
Section for the management of the timers
programmed for the selected control panel.
The activation status of each timer is shown
and made distinctive by colour:
• Green, timer deactivated
• Red, timer activated
• Blue, selected timer
By selecting a timer and pressing the Activate/
Deactivate button, it will be possible to
change its activation status. The Disable
button allows you to change the operating
mode.
Section for the management of the
communicator and access to the telephone
functions of the selected control panel.
In the section on the left, when necessary, the
ongoing fault is described.
The section on the right contains the following
buttons:
• Disable calls, for the disablement of calls
• Stop calls, for the interruption of ongoing
calls
Section for viewing the devices connected to
the terminals of the selected control panel.
The status of each line is shown and made
distinctive by colour:
• Green, line in standby
• Yellow, line in fault status or bypassed
• Red, line in alarm status
• Blue, selected line
By selecting a line and pressing the Activate/
Deactivate button, it will be possible to
change the activation status. The Disable
button allows you to change the operating
mode.
Section for the management of the extinction
channel of the selected control panel (where
available).
The section on the left shows the information
relative to the extinction channel.
The section on the right contains the buttons
for the management of the channel:
• Disable extinguishing
• Disable automatic extinguishing
• Stop valve pulse

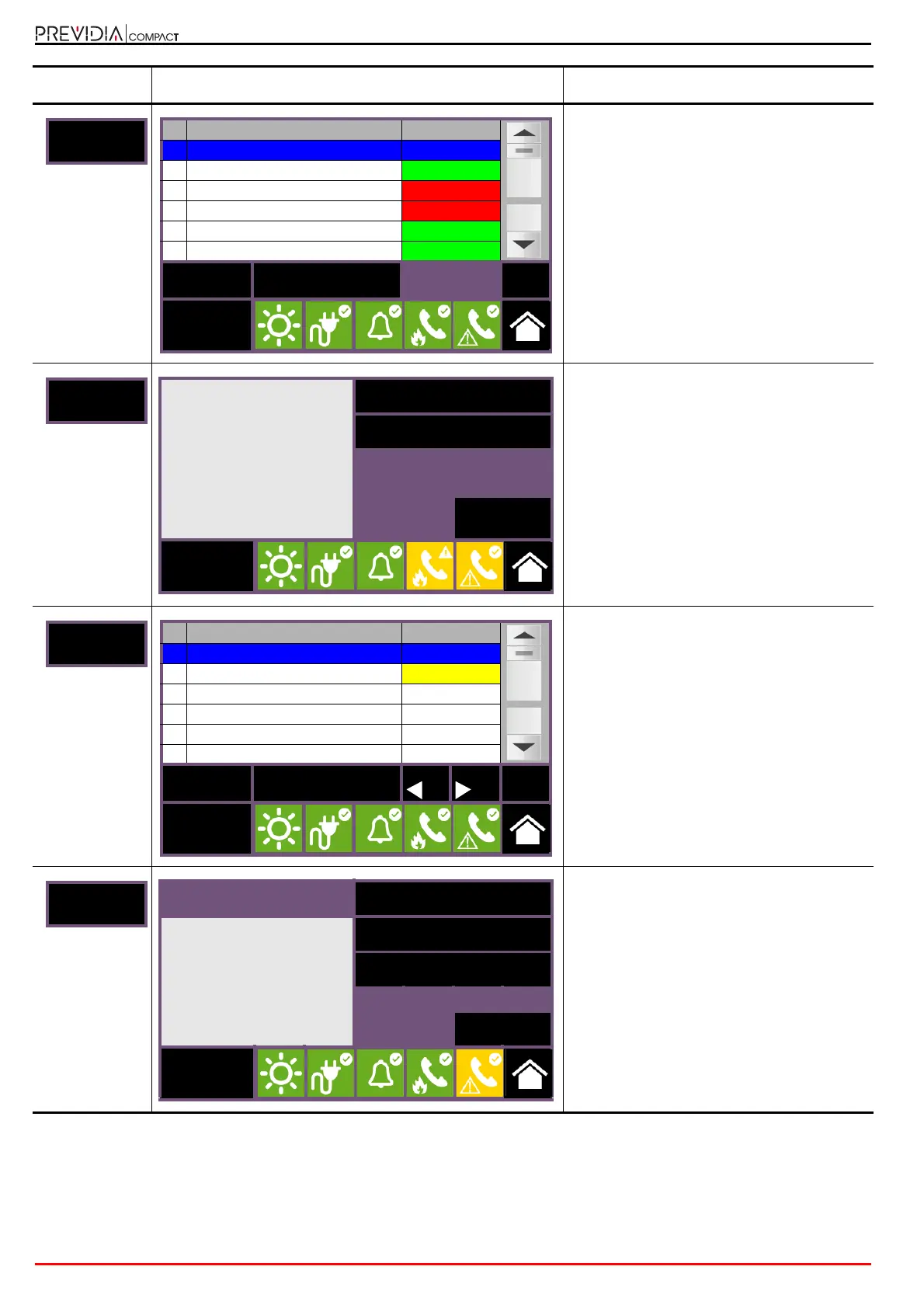

Button Display Section
Timers
N. Timers Status
1 Timer 1 Stand-by
2
Timer 2 Stand-by
3
Timer 3 Active
4 Timer 4 Active
5 Timer 5 Stand-by
6
Timer 6 Stand-by
Disable Activate/Deactivate Esc
Access
level:3
Dialer
GSM module trouble
Disable calls
Stop calls
Esc
Access
level:2
I/O Line
N. I/O Line Status
1 Generic alarm Stand-by
2
Generic fault Fault
Disable Activate/Deactivate Esc
Access
level:2
Extinction
Extinction
Disable extinguishing
- OPEN OUTPUT Valve
Disable Automatic Extinc.
Stop valve pulse
Esc
Access
level:2
