erminal Module. Installation Manual.
4
LAN+
0V
A
B
TAMP
OV
EXTERNAL
PWR SUPPLY
(BATTERY
BACKED)
+
-
e.g. Inner Range Small Powered Low Profile Enclosure.
P/N: 995200PE
Heavy duty Fig. 8 cable (24/0.20 or 14/0.20) recommended
for Ext. Power Supply wiring.
* Note: If required, the LAN to subsequent Modules may
derive +12V from “+VE” of the incoming LAN cable.
From
Previous
module
To
next
module
+ - A B
+ - A B
* Note: If both “LAN +VE” wires provide a Power supply source, the
one that is not required to power the Module MUST NOT be connected to
the Module.
i.e. +VE connections from two different power supply sources must
never be connected together.
From Previous
LAN module
To next
module
+ - A B
+ - A B
See Note. *
*
MODULE POWERED FROM THE LAN
(Not recommended if a lock is connected)

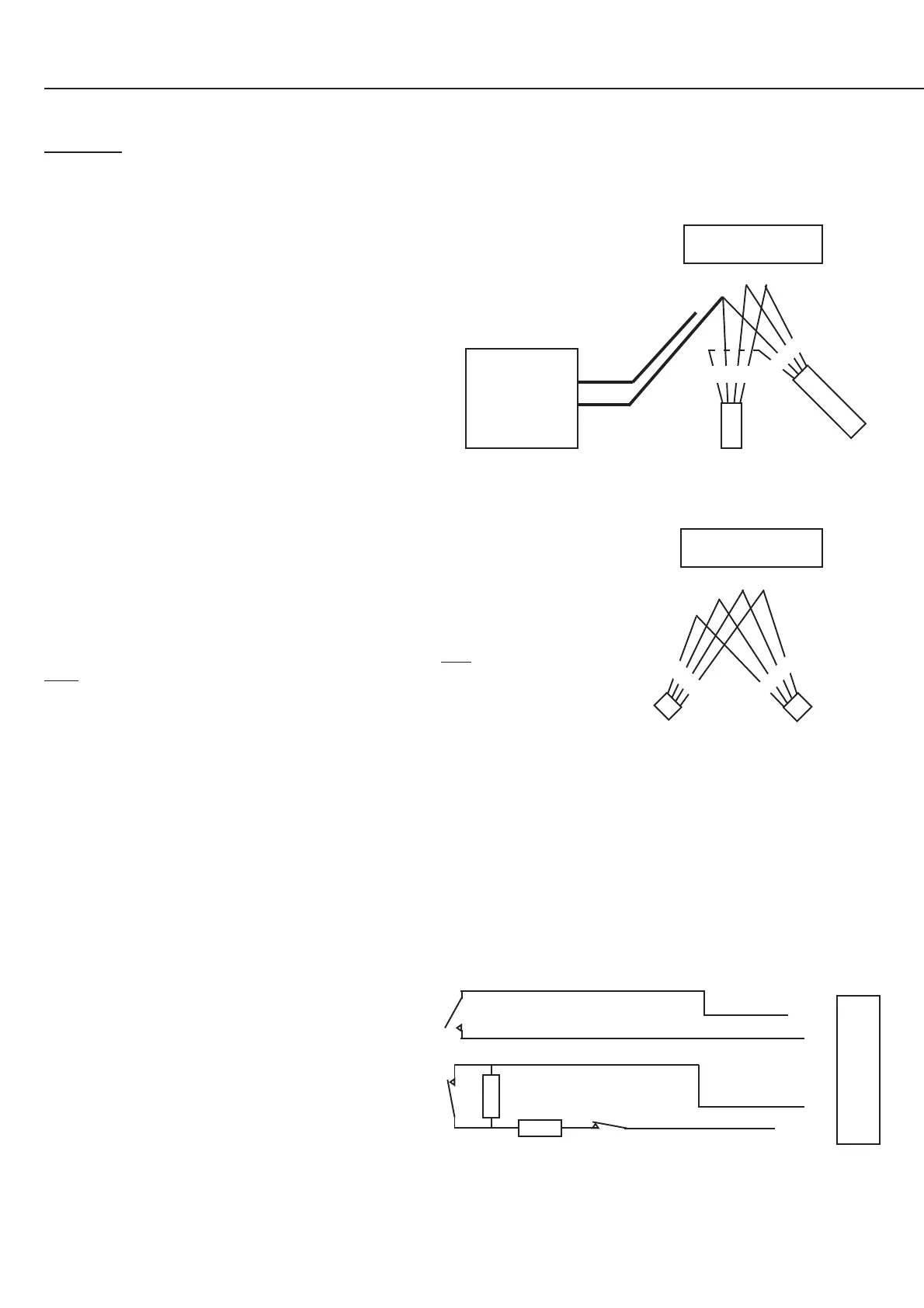

ZONE INPUT AND EXIT/ENTRY BUTTON WIRING.
LAN+
0V
A
B
TAMP
OV
Cabling.
LAN and Power Supply Wiring
MODULE POWERED FROM EXTERNAL SUPPLY (Recommended)
Input Wiring
Door Reed and Tongue Sense Inputs are wired using the End-of-Line (EOL) Resistors.
The “REX/REN” button Inputs are wired to the Normally Open contact of the respective button, while the COMMON contact is
connected to 0V. EOL reistors are not required.
REX
0V
REN
TNG
0V
REED
T4
2k2
6k8
Normally Closed
Tamper contact
Norm. Closed
Alarm contact.
(REED /
TONGUE)
Normally Open
Button contact.
(REX / REN)
Notes:
“REN” button wired as per
“REX”.
Tongue Sense (“TONG”) wired
as per “REED”.
