6
Power Supply Options

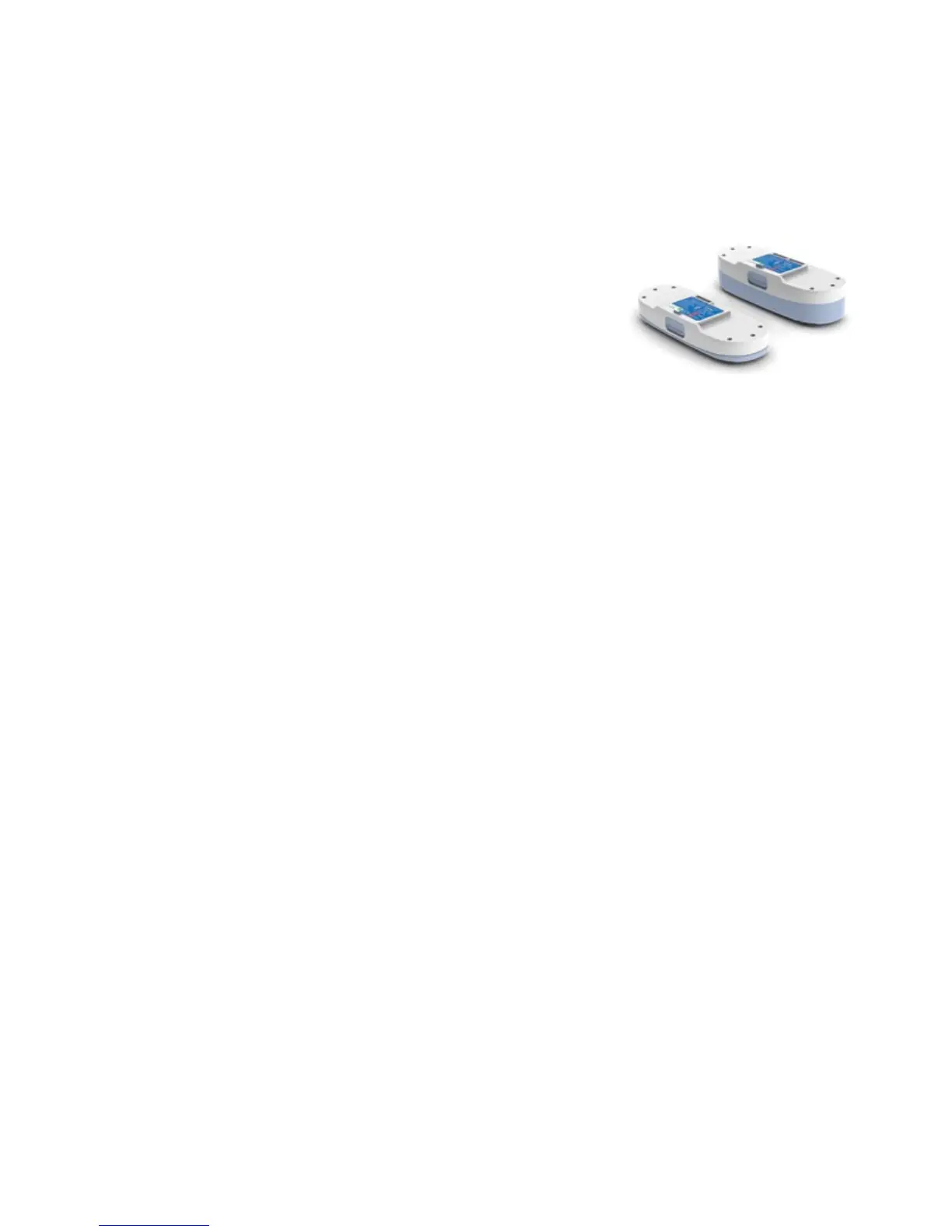

Single and Double Rechargeable Lithium Ion Batteries
The battery will power the Inogen One® G3 without
connection to an external power source. When fully
charged, a single battery will provide up to 4 hours of
operation; a double battery will provide up to 8 hours of
operation. The battery recharges when properly installed
in the Inogen One® G3 and the concentrator is connected
to AC or DC power. Recharging time is up to 4 hours for a single battery and 8 hours for a
double battery. See information in the “Battery Care and Maintenance” section.
Power Supply
Overview
The Inogen One® G3 AC power supply (BA-301) is used to power the Inogen One® G3
concentrator from an AC power source.
Description
The Inogen One® G3 AC power supply is specifically designed for use with the Inogen
One® G3 Oxygen Concentrator (IO-300). The AC power supply provides the precise
current and voltage required to safely power the Inogen One® G3 and is designed to
operate from specified AC power sources. When used with AC power sources, the power
supply automatically adapts to input voltages from 100V to 240V (50-60HZ) permitting
use with most power sources throughout the world.
The AC power supply will charge the Inogen One® G3 Batteries when used with AC input
power. Due to aircraft power limitations, the AC Power Supply cannot be used to charge
the Inogen One® G3 Battery when used on an aircraft.
The AC power supply is used with the following components:
• Power supply with attached power output cable to connect to the Inogen One® G3
• AC power input cable
The DC power cable (BA-306) is specifically designed for use with the Inogen One®
G3 Oxygen Concentrator (IO-300). The DC power input cable connects directly to
the automobile cigarette lighter or auxiliary DC power supply. Refer to Chapter 3 for
additional operating instructions for use with DC power source.
