‑33‑
4 Communication Connection
4.1 Networking

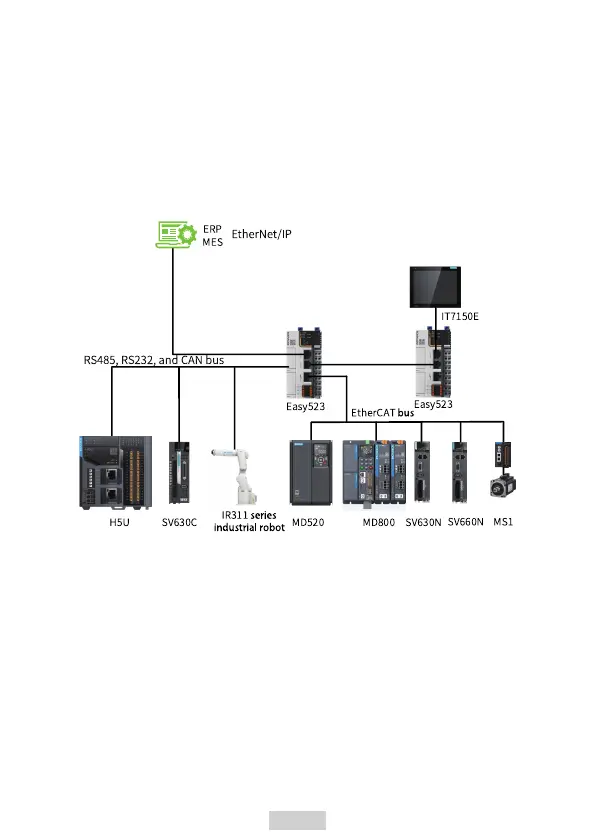

This PLC can be connected to other sites, ERP, MES and other systems through
Ethernet interface, or connected to other slaves (such as MD520, MD800, SV630N and
SV660N drives) or other modules with EtherCAT function through EtherCAT interface.
With GE20 series extension cards, this PLC can also be connected to H5U, SV630C, and
IR311 series industrial robots through RS485, RS232, or CAN communication, as
shown below.
4.2 Cable Selection
The cable lug and cross sectional area of the cable listed in the following table are for
reference only.
