Inovance H0U Series - General Specifications; Mechanical Design

Inovance H0U Series PLC User Manual
Page 5 of 14
General Specifications
Table 3 General specifications of the H0U series PLC
Environment Parameters
Type Parameter Unit
Use
Condition
Transportation
Condition
Storage
Condition
Low temperature
qC
-5 -40 -40
Ambient
temperature
High temperature qC 55 70 70
Humidity Relative humidity %
95
(30qC ± 2qC)
95
(40qC ± 2qC)
-
Low pressure kPa 70 70 70
Climate condition
Air pressure
High pressure kPa 106 106 106
Shift mm 3.5 (5–9 Hz) - -
Sine
vibration
Acceleration m/s
2
10 (9–150 Hz) - -
Acceleration
spectral density
m
2
/s
3
(dB/Oct)
-
5–20 Hz: 1.92 dB
20–200 Hz: -3 dB
-
Frequency range Hz - 5–200 -
Random
vibration
Vibration direction - - X/Y/Z -
Type - - Half-sine -
Shock
Acceleration m/s
2
- 180 -
Mechanical stress
Dip
Dip height m - 1 -
Mechanical Design

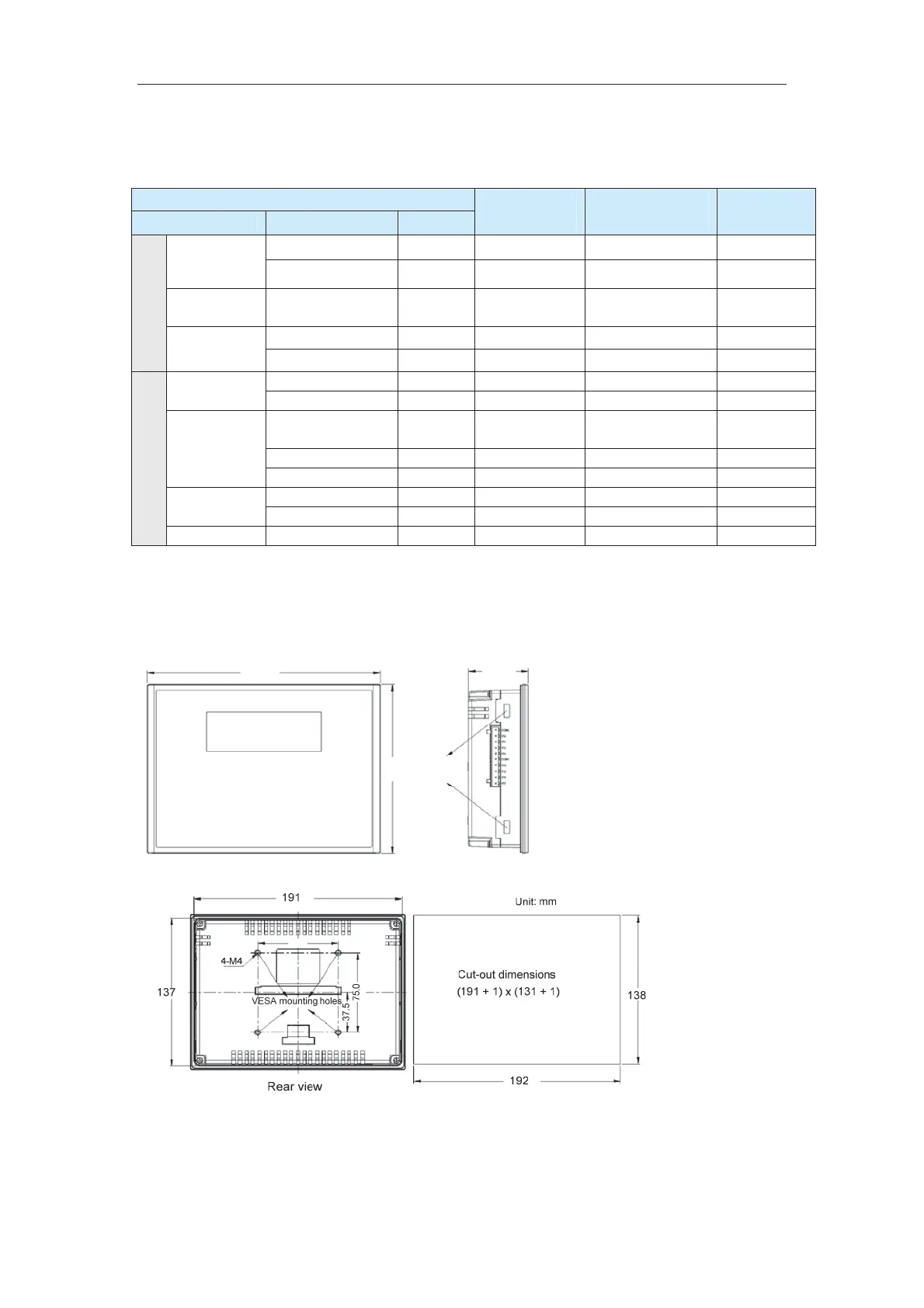

The following figure shows the installation dimensions of the H0U series PLC.
Figure 1 Installation dimensions of the H0U series PLC
200 mm
146 mm
42 mm
Fixed
bolt hole
Front view
Side view


