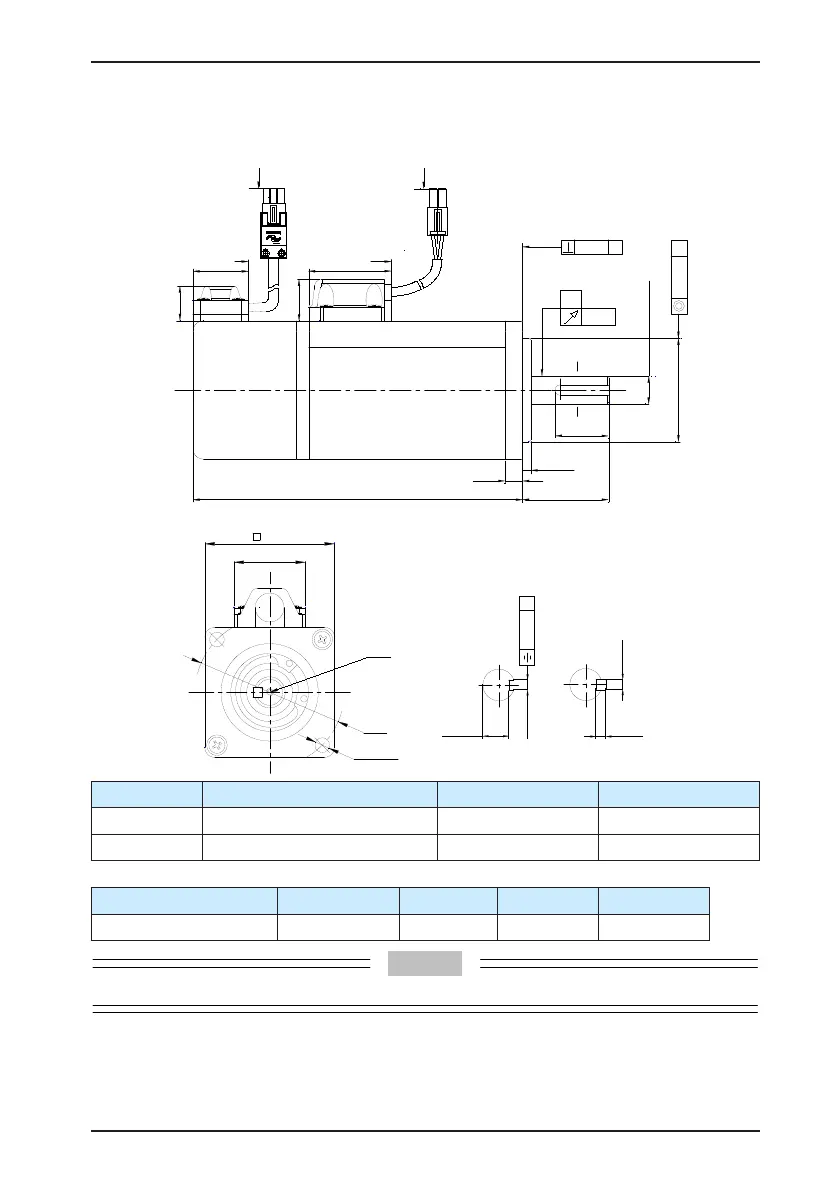

2 Wiring
2
- 25 -
Motor Model Cable Type
Cable Length
L = 3.0 m L = 5.0 m L = 10.0 m
ISMH3-*******-U1***
ISMH3-*******-U2***
(above 2.9 kW)
Power cable S6-L-M22-3.0 S6-L-M22-5.0 S6-L-M22-10.0
Incremental encoder cable S6-L-P01-3.0 S6-L-P01-5.0 S6-L-P01-10.0
ISMH3-*******-A3***
(above 2.9kW)
Power cable S6-L-M22-3.0 S6-L-M22-5.0 S6-L-M22-10.0
Absolute encoder cable S6-L-P21-3.0 S6-L-P21-5.0 S6-L-P21-10.0
■
Models with Brake
Motor Model Cable Type
Cable Length
L = 3.0 m L = 5.0 m L = 10.0 m
ISMH1-*******-U1***
ISMH1-*******-U2***
ISMH4-*******-U1***
ISMH4-*******-U2***
Power cable S6-L-B00-3.0 S6-L-B00-5.0 S6-L-B00-10.0
Incremental encoder cable S6-L-P00-3.0 S6-L-P00-5.0 S6-L-P00-10.0
ISMH1-*******-A3***
ISMH4-*******-A3***
Power cable S6-L-B00-3.0 S6-L-B00-5.0 S6-L-B00-10.0
Absolute encoder cable S6-L-P20-3.0 S6-L-P20-5.0 S6-L-P20-10.0
ISMH2-*******-U1***
ISMH2-*******-U2***
Power cable S6-L-B11-3.0 S6-L-B11-5.0 S6-L-B11-10.0
Incremental encoder cable S6-L-P01-3.0 S6-L-P01-5.0 S6-L-P01-10.0
ISMH2-*******-A3***
Power cable S6-L-B11-3.0 S6-L-B11-5.0 S6-L-B11-10.0
Absolute encoder cable S6-L-P21-3.0 S6-L-P21-5.0 S6-L-P21-10.0
ISMH3-*******-U1***
ISMH3-*******-U2***
(1.8 kW and below)
Power cable S6-L-B11-3.0 S6-L-B11-5.0 S6-L-B11-10.0
Incremental encoder cable S6-L-P01-3.0 S6-L-P01-5.0 S6-L-P01-10.0
ISMH3-*******-A3***
(1.8 kW and below)
Power cable S6-L-B11-3.0 S6-L-B11-5.0 S6-L-B11-10.0
Absolute encoder cable S6-L-P21-3.0 S6-L-P21-5.0 S6-L-P21-10.0
ISMH3-*******-U1***
ISMH3-*******-U2***
(2.9 kW)
Power cable Power cable: prepared by customer
Incremental encoder cable S6-L-P01-3.0 S6-L-P01-5.0 S6-L-P01-10.0
ISMH3-*******-A3***
(2.9 kW)
Power cable Power cable: prepared by customer
Absolute encoder cable S6-L-P21-3.0 S6-L-P21-5.0 S6-L-P21-10.0
ISMH3-*******-U1***
ISMH3-*******-U2***
(above 2.9 kW)
Power cable Power cable: prepared by customer
Incremental encoder cable S6-L-P01-3.0 S6-L-P01-5.0 S6-L-P01-10.0
ISMH3-*******-A3***
(above 2.9 kW)
Power cable Power cable: prepared by customer
Absolute encoder cable S6-L-P21-3.0 S6-L-P21-5.0 S6-L-P21-10.0
Note
The servo motor encoder cable includes CN1 connector; if you select Inovance matching
cables, the connector kit is not required.
