Inovance ISMG2-57D20CD-A3 F Series User Manual

2 Wiring
2
- 22 -

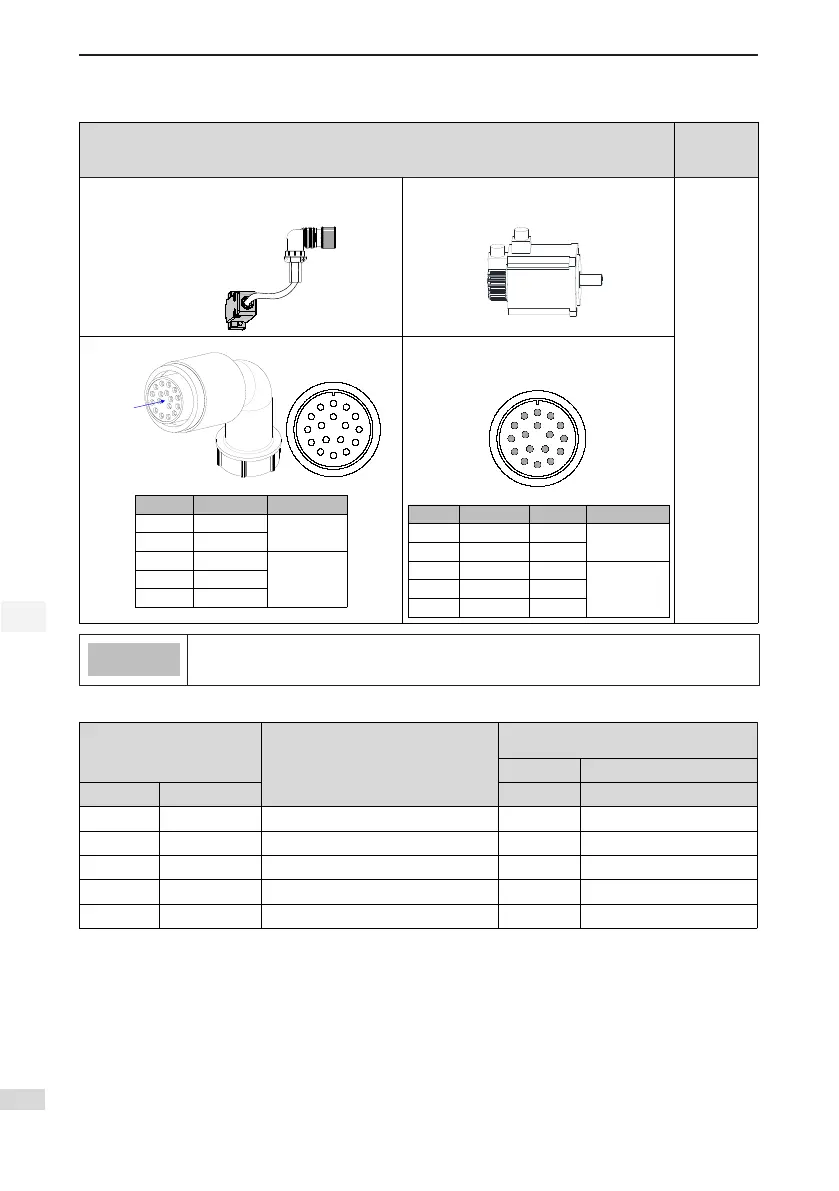

Table 2-9 Connectors of 20-bit encoder cables (MIL-DTL-5015 series 3108E20-29S military spec. plug)
Connector Appearance and Pin Layout
Frame Size
of Matching
Motor
Encoder cable
connector
Connect to CN2
of the drive
Encoder connection socket
100
130
180
Viewed from
this side
20-29 military spec.
A
B
M
C
L
N
T
P
D
K
R
S
E
J
F
G
H
Pin No. Signal
A PS+
Twisted-pair
B PS-
G +5V
H GND
J Shielded
20-29 military spec.
A
M
B
L
C
N
P
T
K
D
S
R
J
E
H
G
F
Pin No. Signal Color
A PS+ Yellow
Twisted-pair
B PS- Blue
G +5V Red
H GND White
J Shielded
Note
rame size of motor: indicates the width of motor ange.
Table 2-10 Pin connection relation of IS650P series 20-bit encoder cables
DB9 on Servo Drive Side
Function Description
Motor Side
9-pin 20-29 Military Spec.
Signal Pin No. Pin No. Pin No.
PS+ 1 Serial communication signal + 3 A
PS- 2 Serial communication signal - 6 B
+5V 7 Encoder +5V power supply 9 G
GND 8 Encoder +5V power ground 8 H
PE Housing Shield 7 J
Observe the following precautions when wiring the encoder:
● Ground the servo drive and shielded layer of the servo motor reliably. Otherwise, the servo drive will
report a false alarm.
● Do not connect cables to the reserved pins.
● To determine the length of the encoder cable, consider voltage drop caused by the cable resistance
and signal attenuation caused by the distributed capacitance. It is recommended to use twisted-pair
cable of size 26AWG or above (as per UL2464 standard) and with a length within 10 m.
