Inovance IT6000 - Mounting Dimensions

1 Product Information
- 6 -

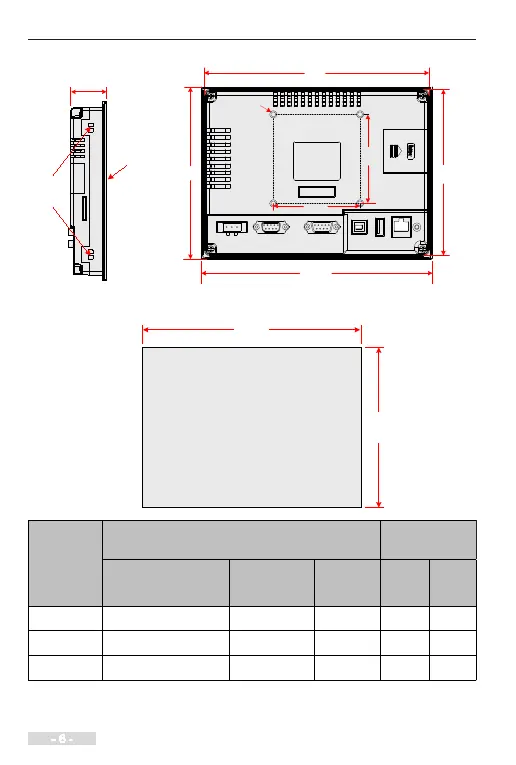

1.3 Mounting Dimensions of the IT6000
Clamp
holes
Depth
Side view
Screen
HMI Model
Product Specications
Recommended
Screw Hole Size
Physical Dimensions
W x H x D (mm)
Through-Hole
Mounting
W x H (mm)
VESA
Mounting
D x D (mm)
W+1
(mm)
H+1
(mm)
IT6070T 200 x 146 x 42 191 x 137 / 192 138
IT6070E 200 x 146 x 42 191 x 137 / 192 138
IT6100E 271 x 213 x 40 258 x 200 75 x 75 259 201
Cutting size
(W+1) × (H+1)
W+1
H+1
Rear view
W
H
D
D
Width
Height
4×M4
VESA
mounting hole
