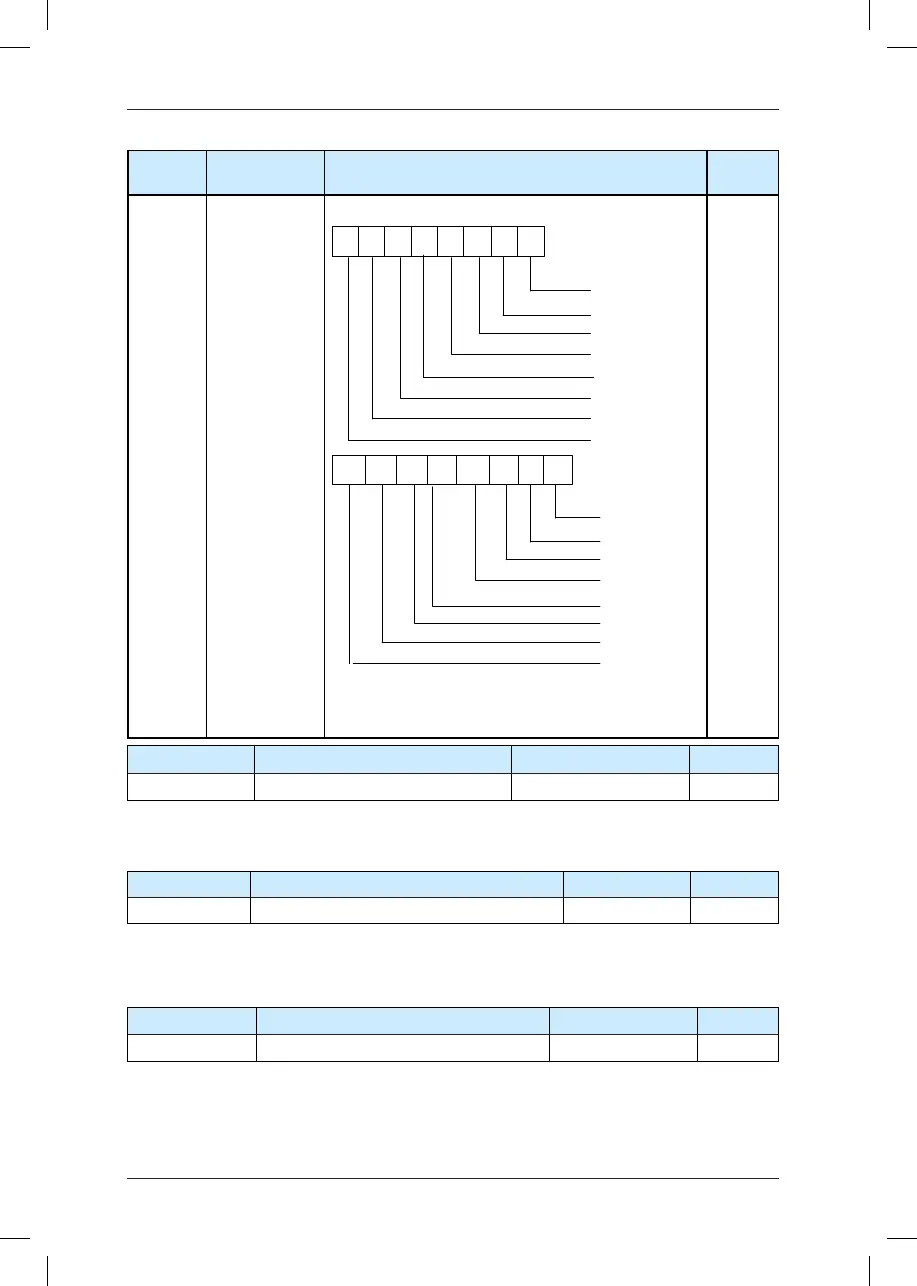

Inovance MD380T5.5GB

Description of Function Codes
MD380 User Manual
- 186 -
Function
Code
Parameter
Name
Setting Range Default
F7-05
LED
display stop
parameters
0000–FFFF
7 6 5 4 3 2 1 0
Bus voltage (V)
DO output status
AI1 voltage (V)
Count value
Set frequency (Hz)
DI input status
AI2 voltage (V)
AI3 voltage (V)
15 14 12 11 10 9 8
PLC stage
Pulse setting
frequency (kHz)
Length value
Reserved
13
Load speed
PID setting
Reserved
Reserved
If a parameter needs to be displayed during the running,
set the corresponding bit to 1, and set F7-05 to the
hexadecimal equivalent of this binary number.
0
Function Code Parameter Name Setting Range Default
F7-06 Load speed display coefcient 0.0001–6.5000 1.0000
This parameter is used to adjust the relationship between the output frequency of the AC
drive and the load speed. For details, see the description of F7-12.
Function Code Parameter Name Setting Range Default
F7-07 Heatsink temperature of inverter module 0.0–100.0°C -
It is used to display the insulated gate bipolar transistor (IGBT) temperature of the inverter
module, and the IGBT overheat protection value of the inverter module depends on the
model.
Function Code Parameter Name Setting Range Default
F7-08
Temporary software version
0.0–100.0°C -
IIt is used to display the temporary software version of the control board.
