MD500 User Manual 7. Description of Parameters
- 161 -
7.6 Protections
This section introduces the functions on protecting the AC drive and the motor.
7.6.1 Motor Overload Protection
Function Code Parameter Name Setting Range Default
) Motor overload
protection selection
0: Disabled
1: Enabled
1
) Motor overload protection gain 0.20 to 10.00 1.00
ƕ ) 7KHPRWRURYHUORDGSURWHFWLRQLVGLVDEOHG,QWKLVFDVHLQVWDOODWKHUPDOUHOD\RQWKHLQSXWVLGHRIWKHPRWRU
ƕ ) 7KH$&GULYHMXGJHVZKHWKHUWKHPRWRULVLQYHUVHWLPHODJFXUYH
,IWKHPRWRURYHUORDGFXUUHQWOHYHODQGWKHRYHUORDGSURWHFWLRQWLPHQHHGEHDGMXVWHGPRGLI\WKHVHWWLQJRI)
7KHLQYHUVHWLPHODJFXUYHLVVKRZQLQWKHIROORZLQJÀJXUH

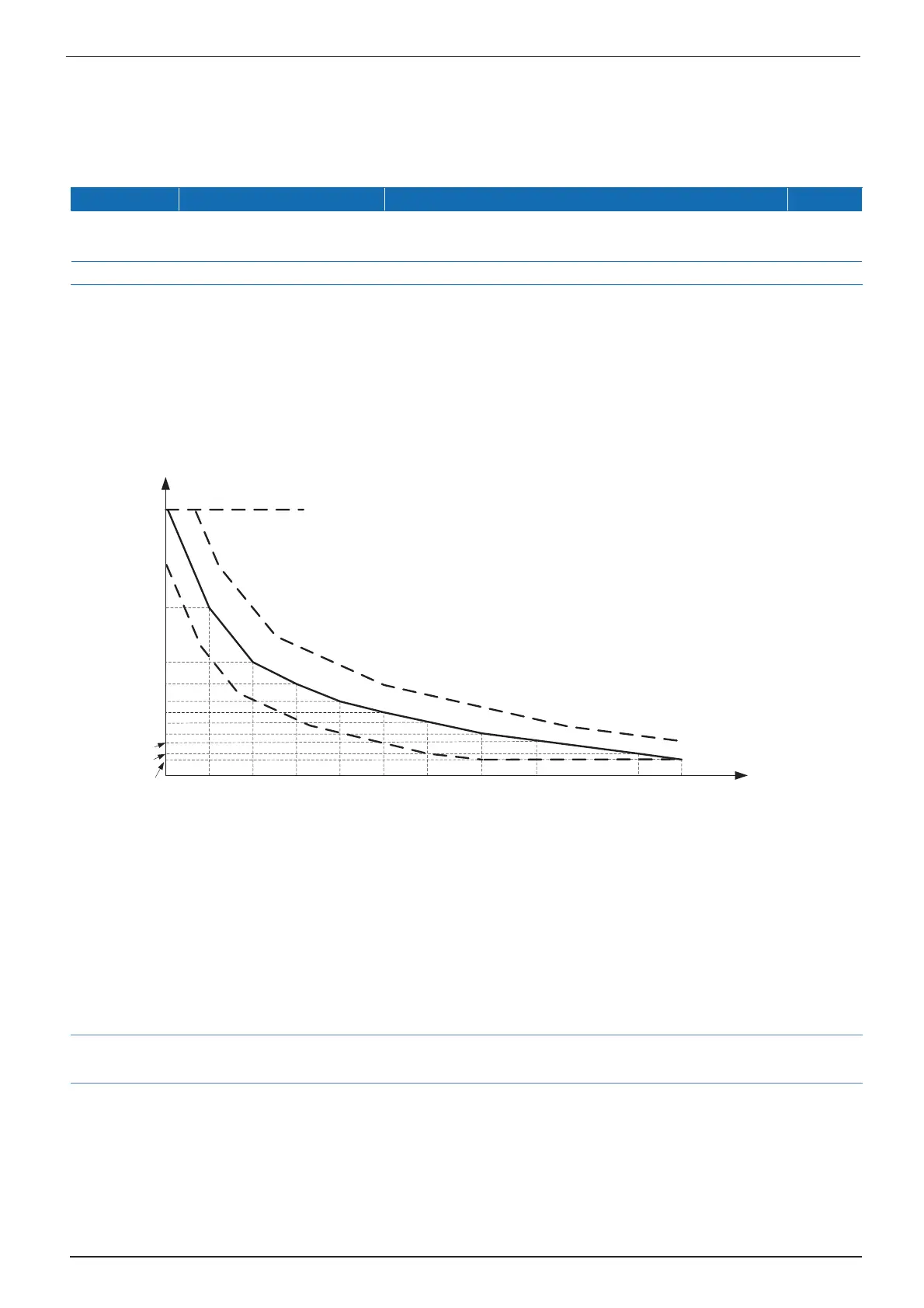

Figure 7-47 Inverse time-lag curve
Overload protection time
Current level (percentage
of rated motor current)
115% 125% 135%
145% 155% 165% 175%
80 min
40 min
15 min
6 min
185%
225%
30s
10s
245%
4 min
2.5 min
2 min
s
%
60s
When the motor running current reaches 175% of the rated motor current and the motor runs at this level for 2 minutes, Err11
(motor overload) is reported. When the motor running current reaches 115% of the rated motor current and the motor runs at this
level for 80 minutes, Err11 is reported.
Suppose that the rated motor current is 100 A.
ƕ ) $FFRUGLQJWR)LJXUHZKHQWKHPRWRUUXQQLQJFXUUHQWUHDFKHV$RI$DQGWKHPRWRUUXQVDW
125 A for 40 minutes, Err11 is reported.
ƕ ) $FFRUGLQJWR)LJXUHZKHQWKHPRWRUUXQQLQJFXUUHQWUHDFKHV$RI$DQGWKHPRWRUUXQVDW
125 A for 40 x 1.2 = 48 minutes, Err11 is reported.
Note
The motor overload protection supports the longest 80 minutes and the shortest 10 seconds.
efesotomasyon.com

Inovance MD500T22GB Specifications

General

Power	22 kW
Output Power	22 kW
Output Current	45 A
Communication Interface	RS485, Modbus
Cooling Method	Forced air cooling
Operating Temperature	-10°C to +50°C
Voltage	380V
Frequency Range	0 to 400 Hz
Control Mode	V/F control, Sensorless vector control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m, derating above 1000m
