Inovance MS1 Series User Manual

2 Installation and Wiring
- 26 -
2.2 Wiring
■
The frame size refers to 󶍿ange width.
■
The motor cable colors are subject to the actual. The cable colors mentioned in this guide
are all Inovance cables.
2.2.1 Wiring of Power Cables
1 Connection to power cables of IS620 series servo drive
U
V
W
P
+
D
C
PE
V
U
W
PE
U
V
W
P
+
D
C
PE
V
U
W
PE
Direction of cable outlet: Front Direction of cable outlet: Rear

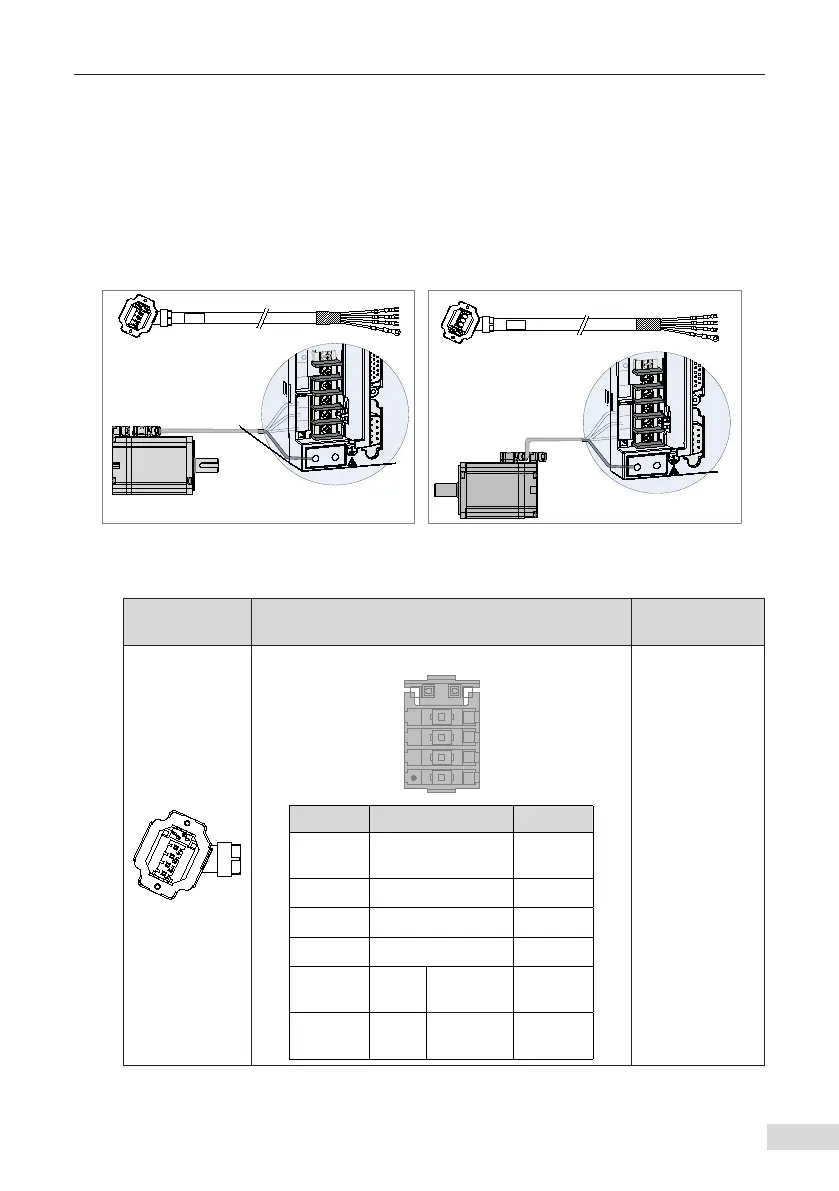

Figure 2-2 Diagram of connection to power cables of IS620 series servo drive
Table 2-2 Connectors of power cables on the motor side
Outline Drawing Pin Layout
Frame Size of
Matching Motor
Black 6-pin connector
4
3
2
1
5 6
Pin No. Signal Color
1 PE
Yellow/
green
2 W Red
3 V Black
4 U White
5
Brake
signal
Positive Brown
6
Brake
signal
Negative Blue
Terminal-type
motor:
Size 40 (Z series)
Size 60 (Z series)
Size 80 (Z series)
