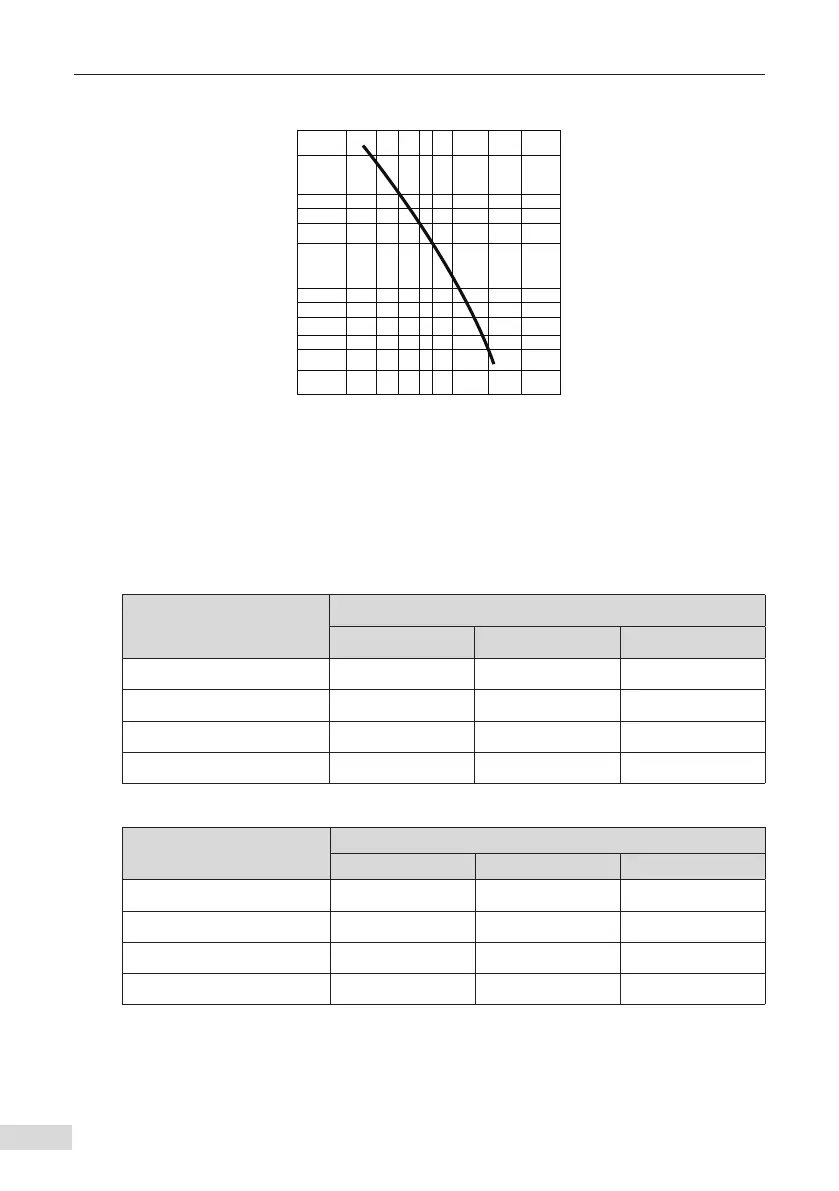

1.3.8 Temperature Curve of the Oil Sealing












    
 
5FNQFSBUVSFPGUIFTMJEJOHQBSUPGUIFPJMTFBMJOHMJQǫ

4FSWJDFMJGFPGUIFPJMTFB
MJOHI
1.4 Cables
1.4.1 IS620/IS810
■
Frame size 40/60/80（50W-1kW）
Table 1-1 Cables for terminal-type (Z series) motors with front cable outlets
Cable Type
Cable Length (m)
3.0 5.0 10.0
Power cable (without brake) S6-L-M007-3.0 S6-L-M007-5.0 S6-L-M007-10.0
Power cable (with brake) S6-L-B007-3.0 S6-L-B007-5.0 S6-L-B007-10.0
Absolute encoder cable S6-L-P024-3.0 S6-L-P024-5.0 S6-L-P024-10.0
Incremental encoder cable S6-L-P014-3.0 S6-L-P014-5.0 S6-L-P014-10.0
Table 1-2 Cables for terminal-type (Z series) motors with rear cable outlets
Cable Type
Cable Length (m)
3.0 5.0 10.0
Power cable (without brake) S6-L-M008-3.0 S6-L-M008-5.0 S6-L-M008-10.0
Power cable (with brake) S6-L-B008-3.0 S6-L-B008-5.0 S6-L-B008-10.0
Absolute encoder cable S6-L-P025-3.0 S6-L-P025-5.0 S6-L-P025-10.0
Incremental encoder cable S6-L-P015-3.0 S6-L-P015-5.0 S6-L-P015-10.0
