3 Mounting Dimension Diagrams
- 47 -
Motor Model LL LC LE LA LZ KA1 KA2 KW LG KB1 KB2
MS1H2-30C30CD-U3**Z
209.5
(265.5)
130 6±0.3 145 4-Φ9 103 74 8 14
136
（139)
188.5
(244.5)
MS1H2-30C30CD-A3**Y(-S4)
MS1H2-40C30CD-U3**Z
252
(308)
130 6±0.3 145 4-Φ9 103 74 8 14
178.5
(181.5)
231
(287)
MS1H2-40C30CD-A3**Y(-S4)
MS1H2-50C30CD-U3**Z
294.5
(350.5)
130 6±0.3 145 4-Φ9 103 74 8 14
221
(224)
273.5
(329.5)
MS1H2-50C30CD-A3**Y(-S4)
Motor Model LR S LB TP LK KH LJ W T Weight(kg)
MS1H2-30C30CD-U3**Z
63±1 28 110 M8×20 54 24
0
-0.2
0.5±0.75 8 7
10.73
(13.2)
MS1H2-30C30CD-A3**Y(-S4)
MS1H2-40C30CD-U3**Z
63±1 28 110 M8×20 54 24
0
-0.2
0.5±0.75 8 7
15.43
(17.9)
MS1H2-40C30CD-A3**Y(-S4)
MS1H2-50C30CD-U3**Z
63±1 28 110 M8×20 54 24
0
-0.2
0.5±0.75 8 7
16.2
(18.7)
MS1H2-50C30CD-A3**Y(-S4)
■

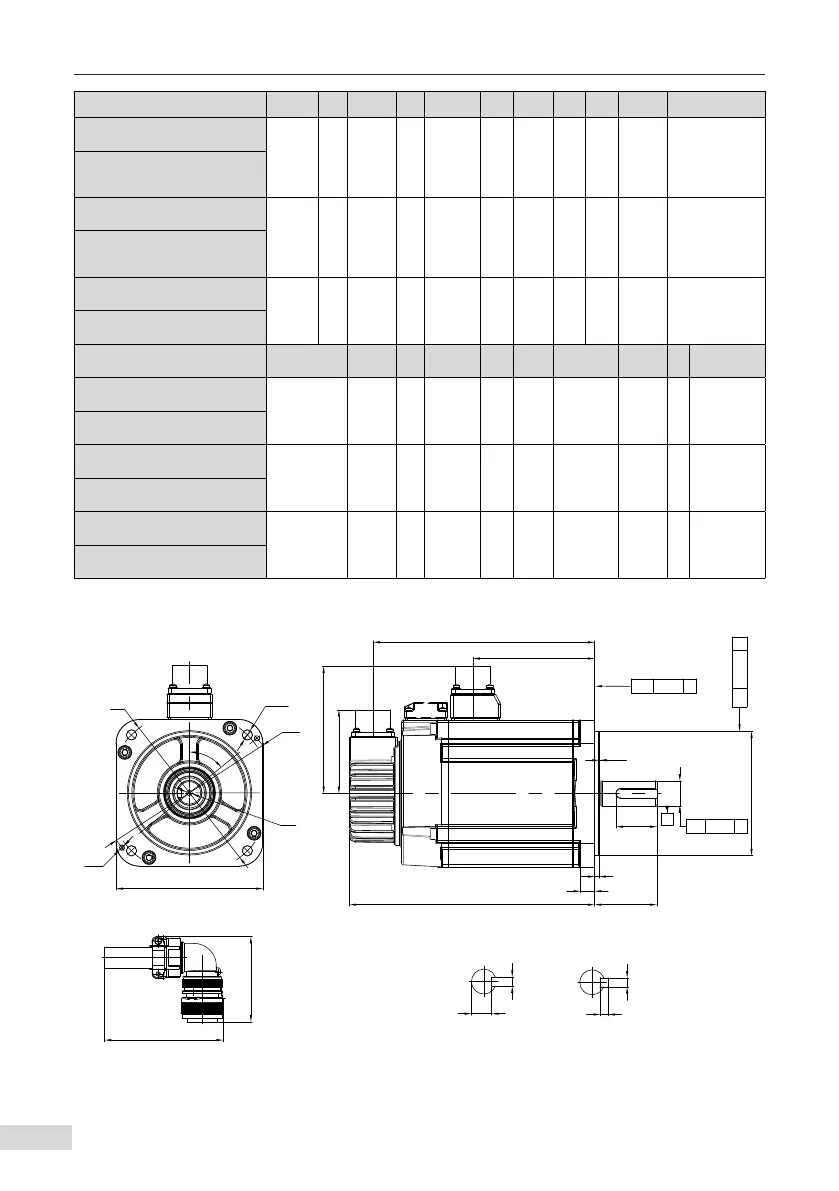

Dimension drawing for MS1H3 series motors in frame size 130
ØLA
TP
KA2
KA1
A
KH
KB2
KB1
ØLBh7
0
-0.035
LJ
LK
ØSh6
0
-0.013
LE
LL LR
LG
KW N9
W h8
T h11
⏊ 0.10 A
↗ 0.02 A
◎ Ø 0.06 A
Ø154
□LC
51°
100
80
2-M5
LZ EQS
shaft end diagram keyed shaft end
仅抱闸电机
