Keep the cord away from the rollers. Do not
leave the cord under the running belt. Do
not use the treadmill if the cord is damaged
or worn.
If the cord is damaged, it must be replaced
by the manufacturer, the service department
or another qualifi ed person to avoid an
accident.
Preparations for assembly
Two people are required to assemble the
treadmill.
Lay all the pieces out on the fl oor and check
that all the parts are there.
Please refer to the illustration and parts list at
the back of the manual.
You must use the following tools:
Allen key
Screwdriver
Assembly instructions

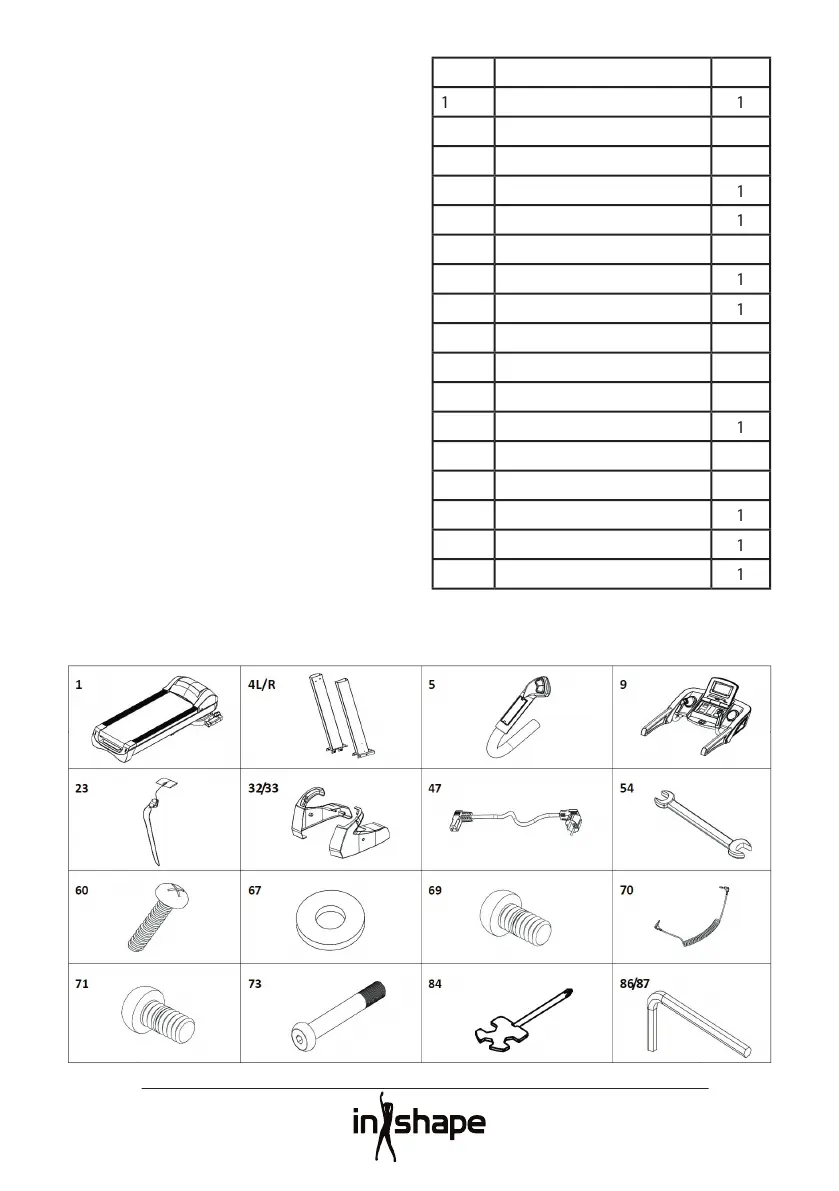

When you open the packaging, you will fi nd
the following parts:
No.
Part
1
Frame
1
4 L/R
Column L/R
2
5
Handles L/R
2
9
Computer
1
23
Dead mans switch
1
32/33
Cover plate L/R
2
47
Power cable
1
54
Spanner 14x17
1
60
Screw M4x15
4
67
Washer Ø11xØ20
12
69
Screw M8x15
4
70
MP3 cord
1
71
Screw M10x20
8
73
Screw M10x80
4
84
Screwdriver
1
86
Allen key S6
1
87
Allen key S5
1
